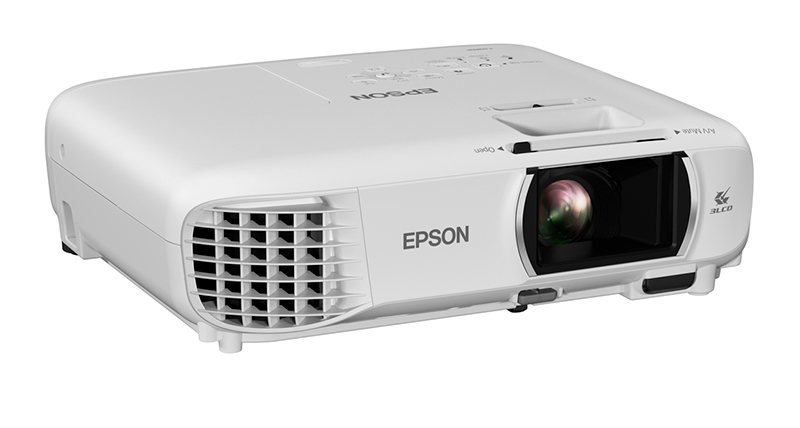

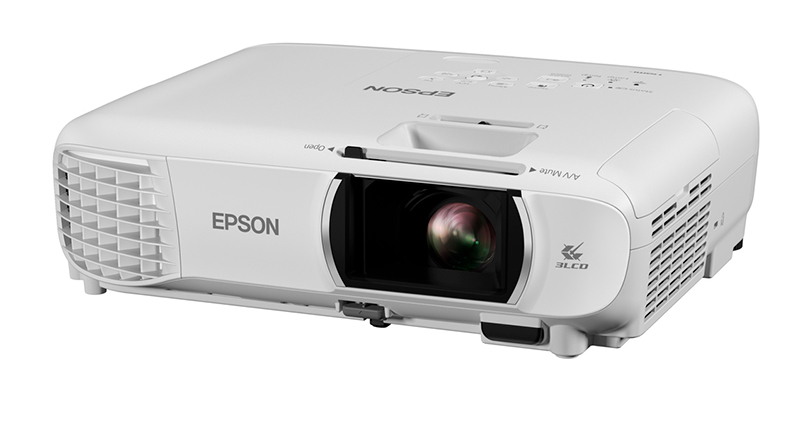

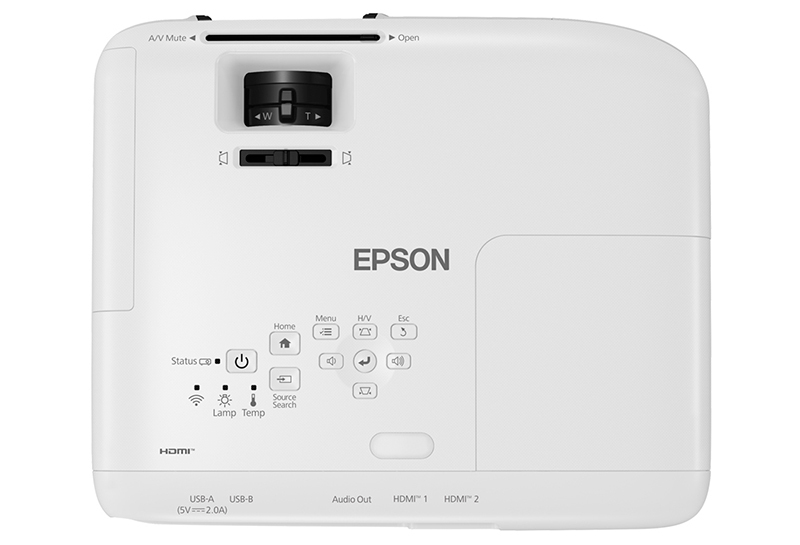

EH-TW850 3400 ANSI lumens 3LCD 1080p (1920x1080) White
Model EH-TW850Part no. V11HB61042
69 specifications
- Noise37 dB
- Weight2.8 kg
- ColourWhite
- Projector brightness3400 ANSI lumens
- Light source typeLamp
- Focal length range14.06 - 16.82 mm
Overview
- Noise
- 37 dB
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 3400 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 14.06 - 16.82 mm
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-TW850
- Part number
- V11HB61042
- Also known as
- Epson EH-TW850 3400 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3400 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 787.4 - 7747 mm (31 - 305") |
| Projection distance | 1.35 - 1.64 m |
| Number of colours | 16.78 million colours |
| Projector brightness (economic mode) | 2100 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.57 cm (0.62") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 14.06 - 16.82 mm |
| Aperture range (F-F) | 1.58 - 1.7 |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.00 - 1.21:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural |

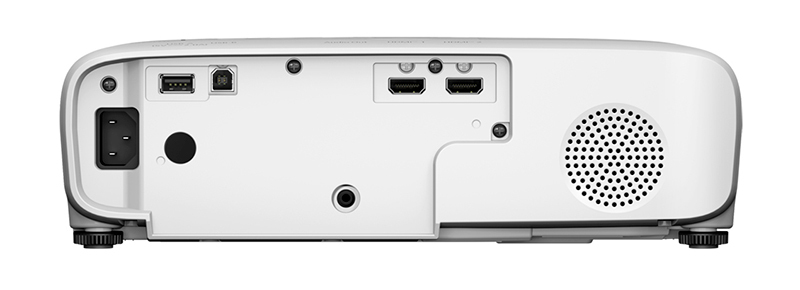

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 231 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 41 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 302 mm |
| Depth | 252 mm |
| Height | 92 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
