EH-TW7100 Standard throw projector 3000 ANSI lumens 3LCD UHD 4K (3840x2160) 3D White
Model EH-TW7100Part no. V11H959053EAN 8715946670843
94 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight6.9 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 6.9 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-TW7100
- Part numbers
- V11H959053, V11H959056, V11H959040, V11H959041
- EAN / UPC
- 8715946670843, 8715946670850, 9314020631597
- Also known as
- Epson EH-TW7100 Standard throw projector 3000 ANSI lumens 3LCD UHD 4K (3840x2160) 3D White
Specifications
94 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 100000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 2.95 - 4.77 m |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 192 - 240 Hz |
| Colour light output | 3000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.55 cm (0.61") |
| White light output | 3000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp type | UHE |
| Lamp power | 250 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.49 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.32 - 2.15:1 |
| Horizontal lens shift range | -24 - 24% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported 3D technologies | Samsung Active 3D |
| Supported 3D formats | Side by side, Top and bottom |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Video colour modes | Auto, Cinema, Dynamic, Natural, Bright cinema |
| Video processing | 10 bit |

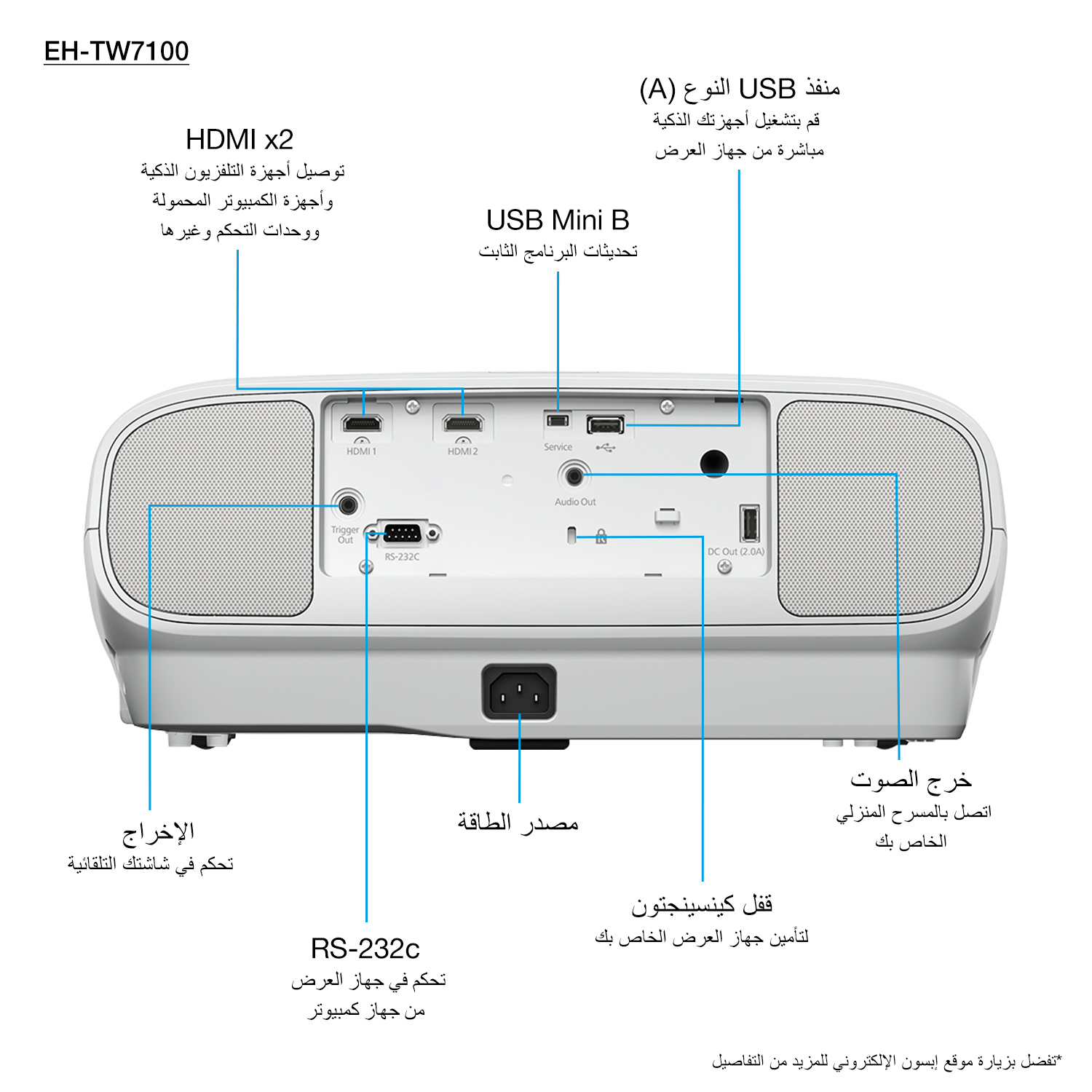

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 24 dB |
| 2D/3D frequency image | 240/480 Hz |
| Country of origin | Philippines |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 387 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (PowerSave) | 297 W |
| Power consumption (economy mode) | 297 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 30 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.9 kg |
| Width | 410 mm |
| Depth | 310 mm |
| Height | 157 mm |
| Package width | 495 mm |
| Package depth | 500 mm |
| Package height | 235 mm |
| Package weight | 8.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 18 pc(s) |
| Products per pallet (UK) | 36 pc(s) |
