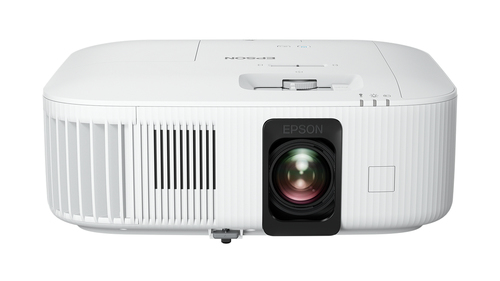

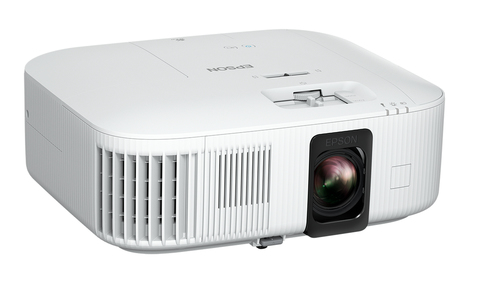

EH-TW6150 with HC lamp warranty
Model EH-TW6150Part no. V11HA74040EAN 8715946710624
98 specifications
- Noise36 dB
- Weight4.1 kg
- ColourWhite
- Projector brightness2800 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 36 dB
- Weight
- 4.1 kg
- Colour
- White
- Projector brightness
- 2800 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-TW6150
- Part number
- V11HA74040
- EAN / UPC
- 8715946710624
- Also known as
- Epson EH-TW6150 with HC lamp warranty
Specifications
98 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2800 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 4K (4096x2400) |
| Contrast ratio (typical) | 35000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 2.34 - 3.81 m |
| Projection distance (wide) | 1.2 - 14.8 m |
| Projection distance (tele) | 1.9 - 24 m |
| Contrast ratio (dynamic) | 35000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 1900 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.55 cm (0.61") |
| Vertical synchronization (max) | 240 kHz |
| Vertical synchronization (min) | 192 kHz |
| Heat dissipation | 1023.4 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 7500 h |
| Lamp type | UHE |
| Lamp power | 200 W |
| Lamp power (economic mode) | 7500 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.49 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.32 - 2.15:1 |
| Vertical lens shift range | -60 - -60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |

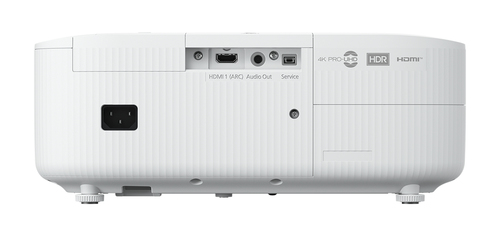

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Preset modes | Cinema, Dynamic, Game |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 301 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 231 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.1 kg |
| Width | 333 mm |
| Depth | 275 mm |
| Height | 131 mm |
| Package width | 352 mm |
| Package depth | 459 mm |
| Package height | 220 mm |
| Package weight | 5.97 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 85286200000 |
| Other features | Automatic keystone correction, Built-in speaker, Game mode, Horizontal and vertical keystone correction, Long lamp life, Quick Corner |
| Power consumption | 301 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200000 |
| Pallet gross height | 2.13 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.13 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 36 pc(s) |
| Products per pallet (UK) | 54 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0 Type B (Service Only), Jack plug out, HDMI (HDCP 2.3) (2x) |
| Security features | Kensington lock, Padlock, Security cable hole |
| Option type | Air filter, Spare lamp |
| Box contents | Main unit, Power cable, Remote control incl. batteries, User manual, Warranty card |
| Control panel | 0.61 inch with C2 Fine |
