EH-TW5820
Model EH-TW5820Part no. V11HA11040EAN 8715946686677
90 specifications
- Noise36 dB
- TypeStandard throw projector
- OSAndroid TV
- Weight3.8 kg
- ColourWhite
- Projector brightness2700 ANSI lumens
Overview
- Noise
- 36 dB
- Type
- Standard throw projector
- OS
- Android TV
- Weight
- 3.8 kg
- Colour
- White
- Projector brightness
- 2700 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-TW5820
- Part number
- V11HA11040
- EAN / UPC
- 8715946686677
- Also known as
- Epson EH-TW5820
Specifications
90 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2700 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 70000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 2.35 - 3.82 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 1780 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.55 cm (0.61") |
| Heat dissipation | 1009.8 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 7500 h |
| Lamp type | UHE |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.51 - 1.99 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.33 - 2.00:1 |
| Vertical lens shift range | -60 - -60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Top and bottom, Side by side |
| 3D video colour modes | 3D Dynamic, 3D Cinema |
| Colour modes (2D) | Bright cinema, Cinema, Dynamic, Natural |
| Colour modes (3D) | Dynamic, Cinema |
| Video colour modes | Bright cinema, Cinema, Dynamic, Natural |
| Video processing | 10 bit |

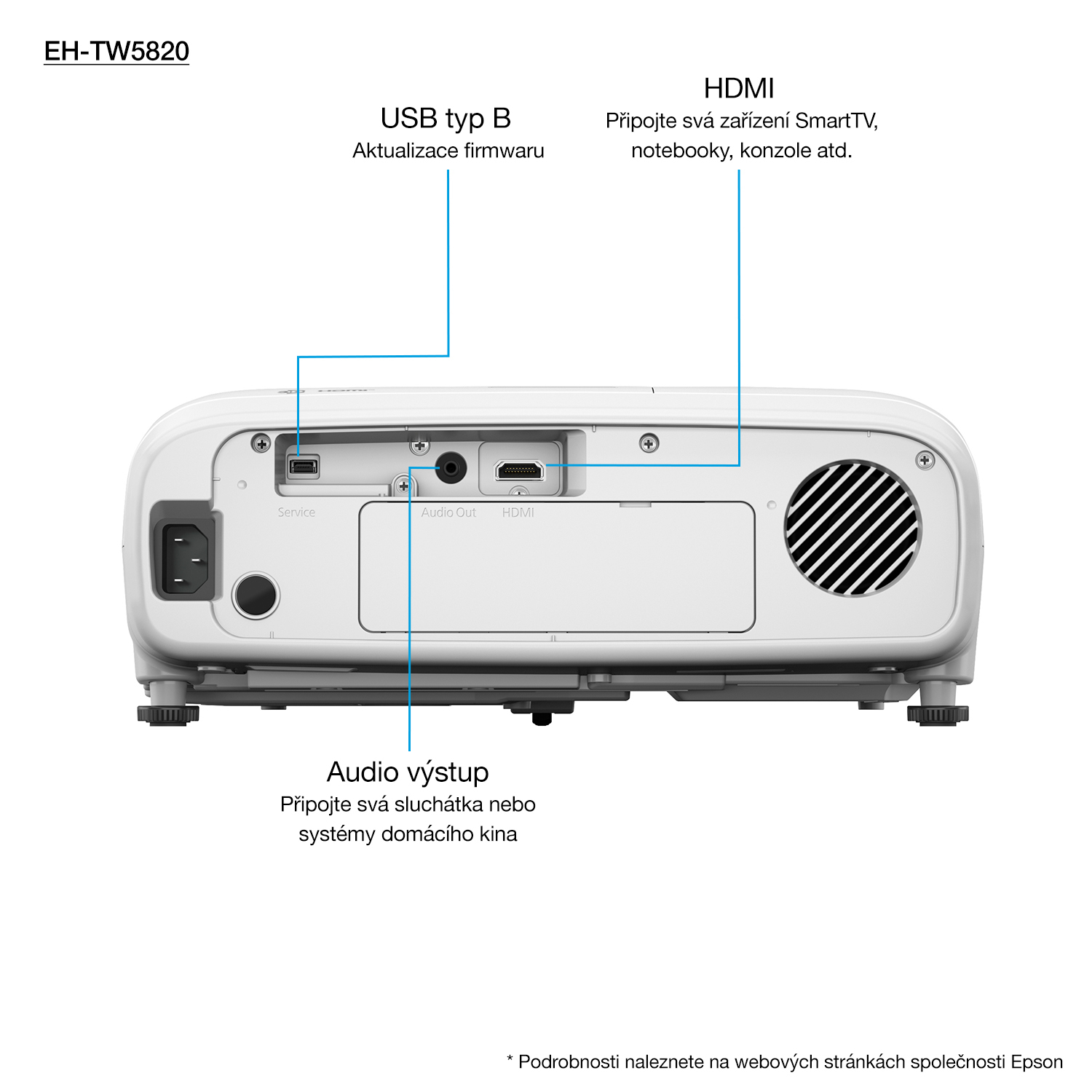

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Bluetooth | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 28 dB |
| Country of origin | Philippines |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 297 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 227 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |

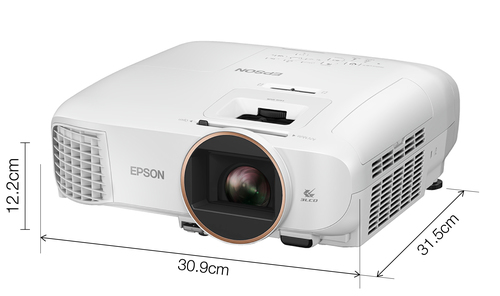

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.8 kg |
| Width | 309 mm |
| Depth | 315 mm |
| Height | 122 mm |
| Package width | 380 mm |
| Package depth | 410 mm |
| Package height | 180 mm |
| Package weight | 5.37 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Other features | 3D depth adjustment, AV Mute Slide, Android TV, Automatic keystone correction, Built-in speaker, Frame interpolation, Game mode, Horizontal and vertical keystone correction, Long lamp life, Quick Corner |
| Power consumption | 262 Watt (Normal On-Mode), 297 Watt (Normal Peak-mode), 227 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 66 pc(s) |
| Products per pallet (UK) | 66 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0 Type B (Service Only), HDMI 1.4, Jack plug out, Bluetooth |
| Security features | Kensington lock, Security cable hole |
| Option type | Soft carry case |
| Box contents | Main unit, Power cable, Remote control incl. batteries, User manual (CD), Warranty card |
| Control panel | 0.61 inch with C2 Fine |
