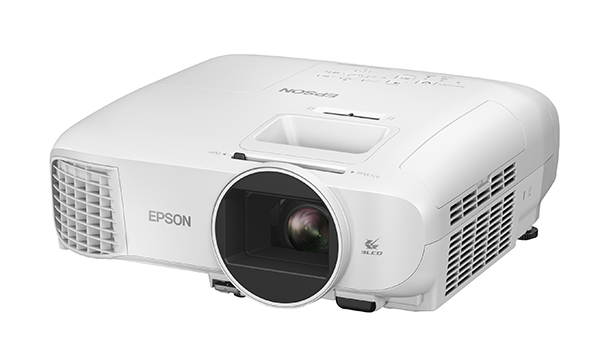

EH-TW5700 Standard throw projector 2700 ANSI lumens 3LCD 1080p (1920x1080) 3D White
Model EH-TW5700Part no. V11HA12053EAN 9314020633478
48 specifications
- TypeStandard throw projector
- Weight3.6 kg
- ColourWhite
- Projector brightness2700 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 3.6 kg
- Colour
- White
- Projector brightness
- 2700 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-TW5700
- Part numbers
- V11HA12053, V11HA12040
- EAN / UPC
- 9314020633478, 8715946686684
- Also known as
- Epson EH-TW5700 Standard throw projector 2700 ANSI lumens 3LCD 1080p (1920x1080) 3D White
Specifications
48 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2700 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 35000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 863.6 - 8432.8 mm (34 - 332") |
| Projection distance | 2.71 - 2.61 m |
| Number of colours | 1.073 billion colours |
| Colour light output | 2700 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| White light output | 2700 ANSI lumens |
| Heat dissipation | 1009.8 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 7500 h |
| Lamp type | UHE |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Zoom capability | Yes |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Video colour modes | Bright cinema, Cinema, Dynamic, Natural |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| DVI port | No |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Bluetooth Low Energy (BLE) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 297 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
| Width | 309 mm |
| Depth | 315 mm |
| Height | 122 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
