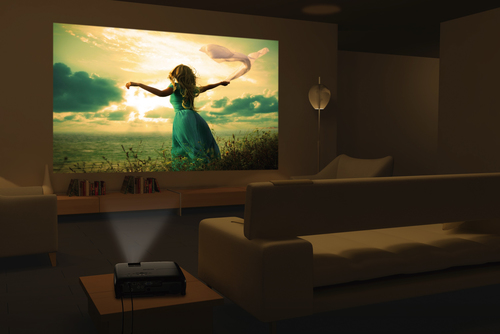

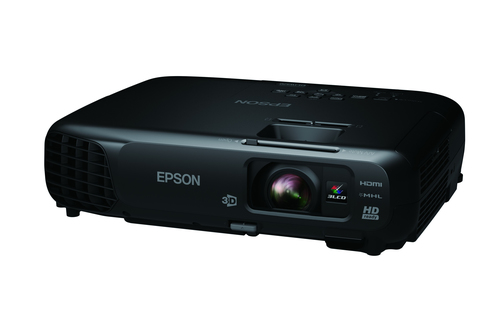

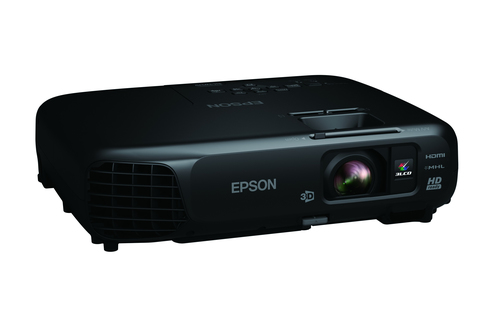

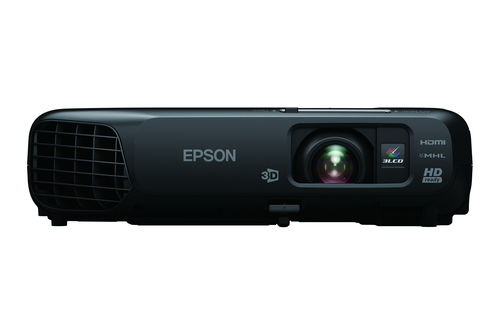

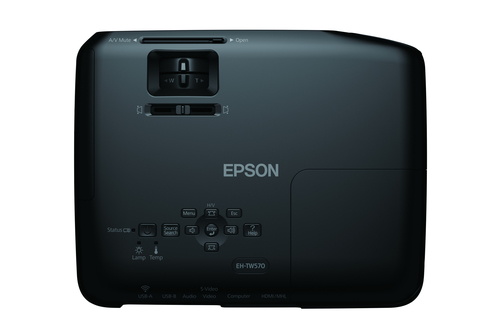

Epson EH-TW570 3000 ANSI lumens 3LCD WXGA (1280x800) 3D Black

Epson EH-TW570 3000 ANSI lumens 3LCD WXGA (1280x800) 3D Black

Model EH-TW570Part no. V11H664040EAN 8715946542591

88 specifications
  • Noise37 dB
  • Weight2.4 kg
  • ColourBlack
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Noise
37 dB
Weight
2.4 kg
Colour
Black
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Epson
Model
EH-TW570
Part numbers
V11H664040, V11H664040LU, V11H664040LU-ARG
EAN / UPC
8715946542591, 4053162598737, 8715946542584
Also known as
Epson EH-TW570 3000 ANSI lumens 3LCD WXGA (1280x800) 3D Black

Specifications

88 specifications in 16 groups

Projector

Projector brightness3000 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)15000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility838.2 - 8128 mm (33 - 320")
Projection distance (wide)1.68 - 2.8 m
Projection distance (tele)2.02 - 3.4 m
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°
Matrix size1.5 cm (0.59")
Vertical synchronization (max)240 kHz
Vertical synchronization (min)100 kHz

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp power200 W

Lens system

FocusManual
Focal length range16.9 - 20.28 mm
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Digital zoom1.2x
Throw ratio1.3 - 1.56:1

Video

Full HDNo
HD-ReadyYes
3DYes
Colour modes (2D)Cinema, Dynamic
Colour modes (3D)Cinema, Dynamic
Supported graphics resolutions1280 x 720 (HD 720)
Supported video modes720p
Video colour modesCinema, Dynamic, Game, Living room

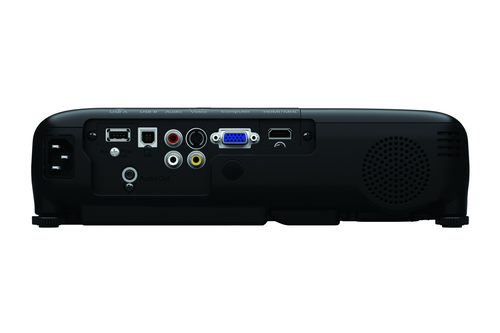

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
PC Audio outYes
USB connector typeUSB Type-A, USB Type-B
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)29 dB
Country of originChina

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Market positioningHome cinema
Product colourBlack
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)270 W
Power consumption (standby)3 W
Power consumption (PowerSave)210 W

Weight & dimensions

Weight2.4 kg
Width297 mm
Depth234 mm
Height77 mm
Package width365 mm
Package depth360 mm
Package height115 mm
Package weight3.68 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC
ManualYes
Quick start guideYes

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.19 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.19 m
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet78 pc(s)
Products per pallet (UK)78 pc(s)
Products per pallet layer6 pc(s)
Products per pallet layer (UK)6 pc(s)

Other features

RS-232 ports0
