EH-QS100W
Model EH-QS100WPart no. V11HB49040EAN 8715946734897
86 specifications
- Noise34 dB
- TypeShort throw projector
- Weight12 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Short throw projector
- Weight
- 12 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-QS100W
- Part number
- V11HB49040
- EAN / UPC
- 8715946734897
- Also known as
- Epson EH-QS100W
Specifications
86 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 1800:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 1524 - 4064 mm (60 - 160") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 192 - 240 Hz |
| Matrix size | 1.57 cm (0.62") |
| Heat dissipation | 1132.2 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 2.3 mm |
| Fixed focal length | 2.3 mm |
| F-number (relative aperture) | 1.8 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.16 - 0.22:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| DVI port | No |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 20 dB |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop, TV cabinet, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 333 W |
| Power consumption (PowerSave) | 0.4 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12 kg |
| Width | 695 mm |
| Depth | 341 mm |
| Height | 156 mm |
| Package width | 470 mm |
| Package depth | 790 mm |
| Package height | 300 mm |
| Package weight | 16 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Bundled software | Epson Projector Content Manager, Epson Setting Assistant |
Technical details
| Specification | Value |
|---|---|
| Other features | 4K enhancement, Auto Power On, Auto source search, CEC compatible, Digital zoom, Frame interpolation, ISF certification, Long light source life, Quick Corner |
| Power consumption | 333 Watt (Normal On-Mode), 0.4 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 2.23 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.23 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
Other features
| Specification | Value |
|---|---|

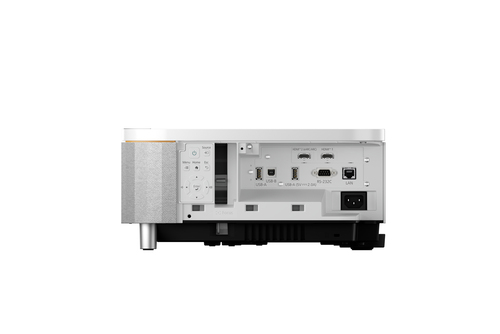

| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), HDMI ARC, HDMI in (2x) |
| Security features | Kensington lock |
| Supported network protocols | IPv6, ESC/VP.net, PJLink |
| Box contents | Power cable, Remote control incl. batteries, User guide, Warranty card |
| Control panel | 0.62 inch with C2 Fine |
