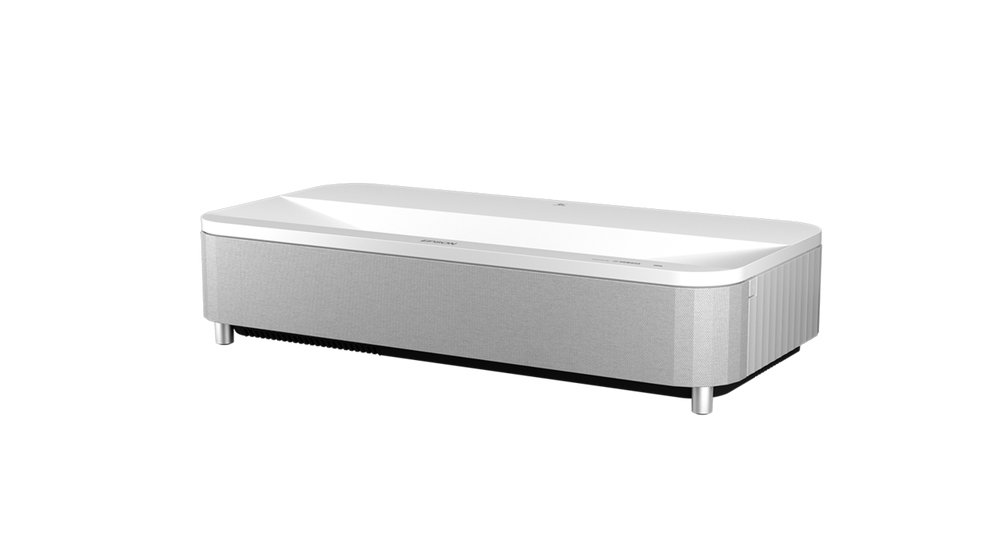

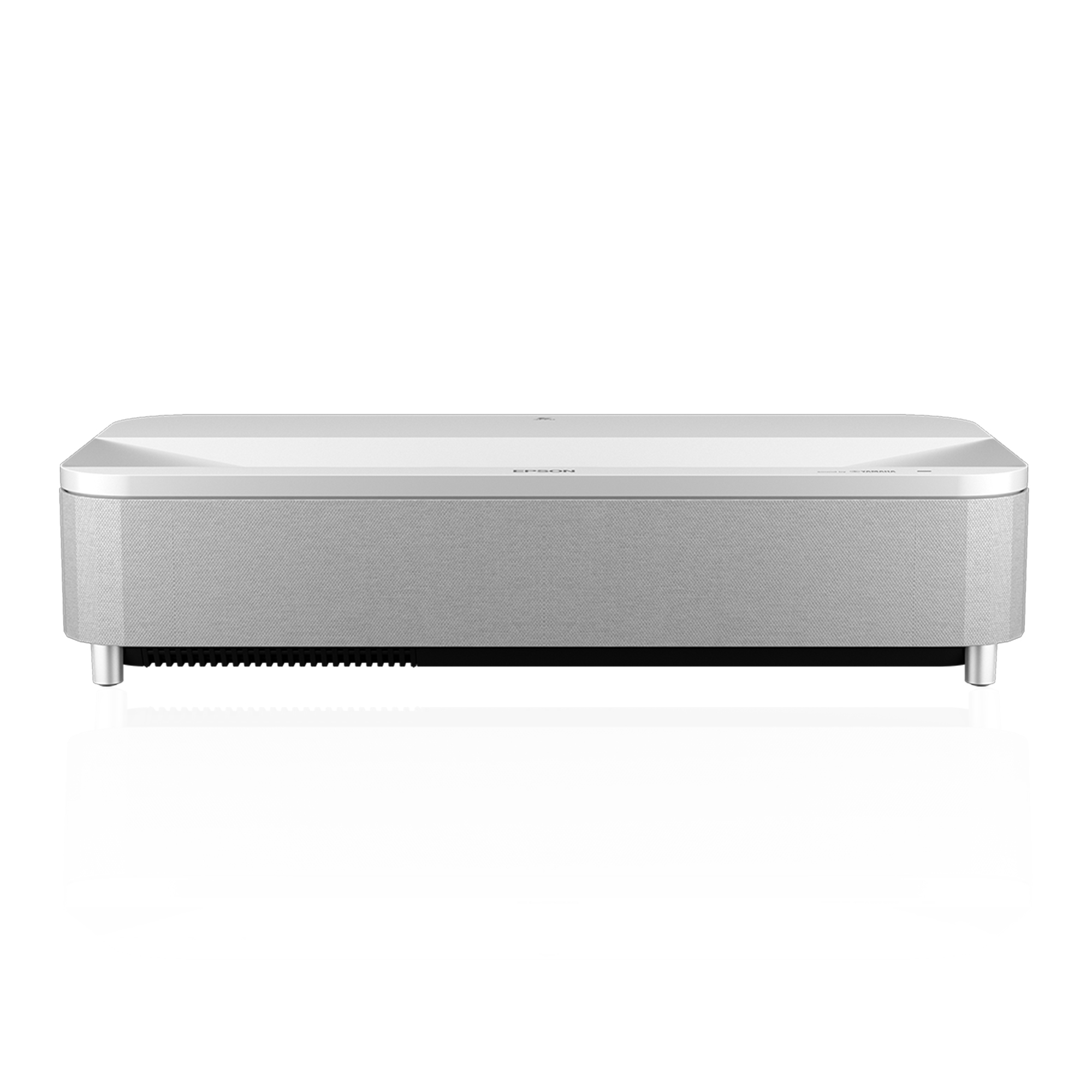

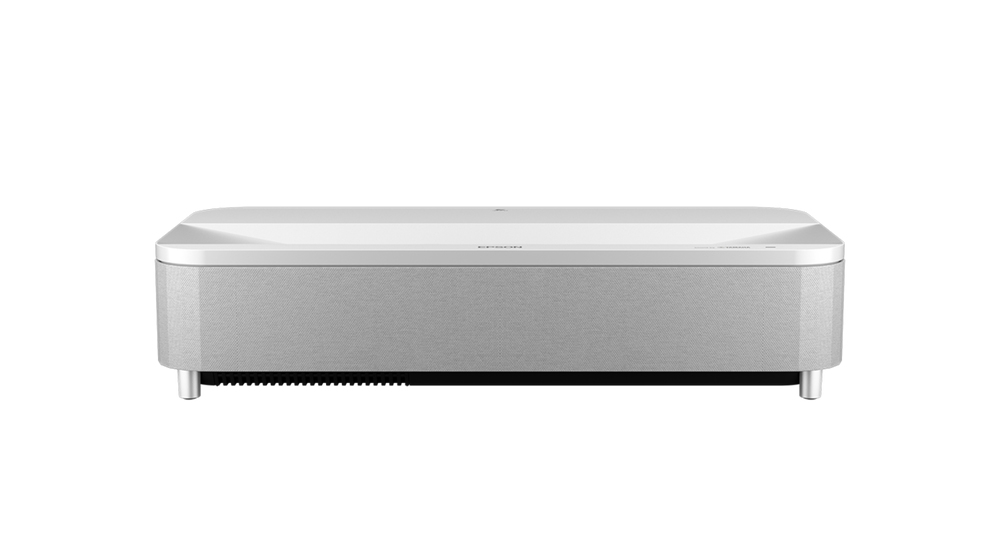

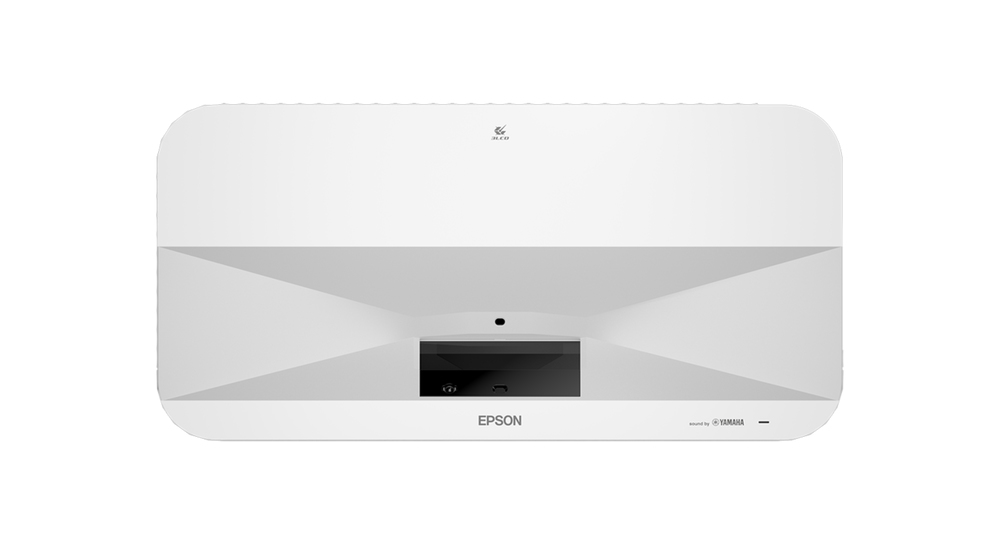

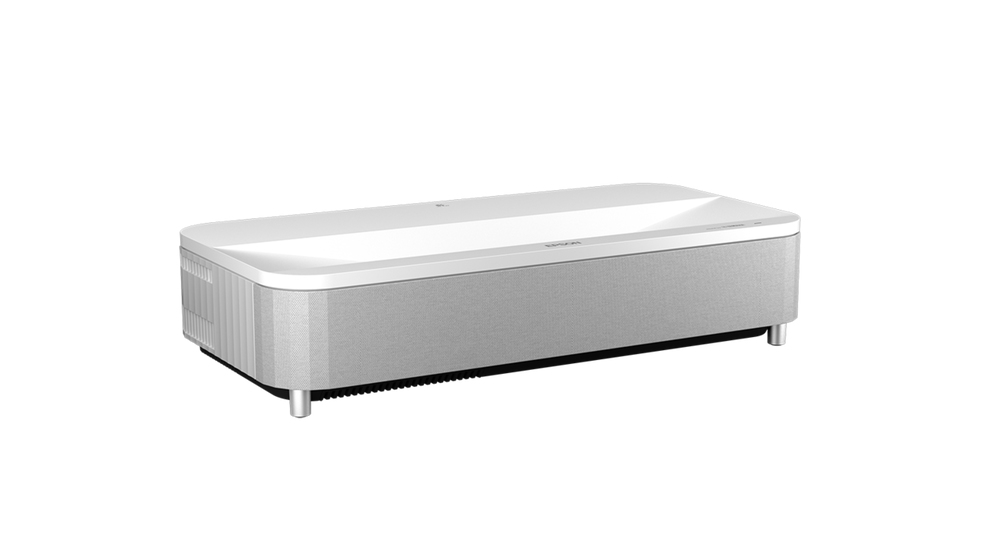

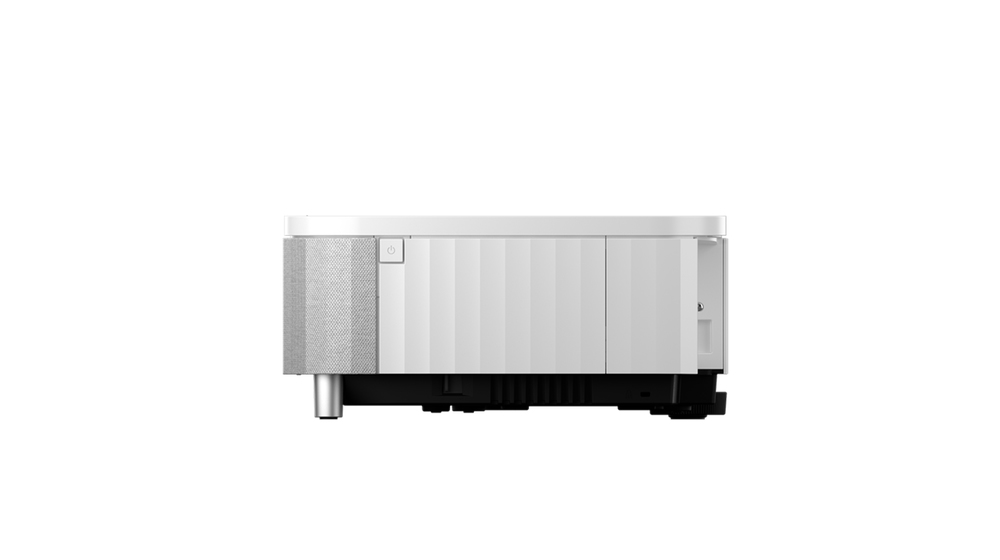

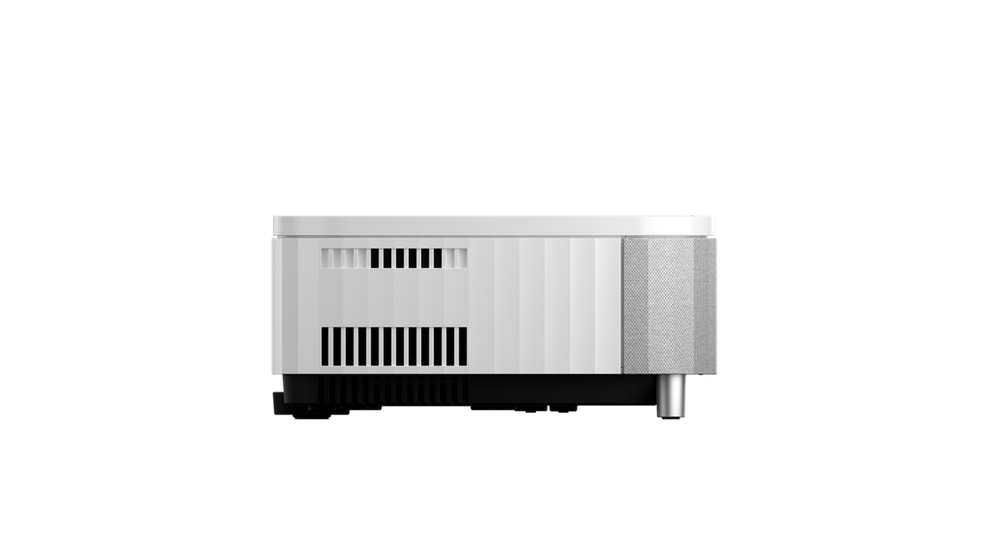

EH-LS800W
Model EH-LS800WPart no. V11HA90040EAN 8715946710433
92 specifications
- Noise32 dB
- TypeUltra short throw projector
- OSAndroid TV
- Weight12.3 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
Overview
- Noise
- 32 dB
- Type
- Ultra short throw projector
- OS
- Android TV
- Weight
- 12.3 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-LS800W
- Part number
- V11HA90040
- EAN / UPC
- 8715946710433
- Also known as
- Epson EH-LS800W
Specifications
92 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 4K+ (5120x3200) |
| Contrast ratio (typical) | 1800:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 2032 - 3810 mm (80 - 150") |
| Projection distance (wide) | 0 - 0.3 m |
| Projection distance (tele) | 0.3 - 0.5 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2000 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Heat dissipation | 1139 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 2.3 mm |
| Fixed focal length | 2.3 mm |
| F-number (relative aperture) | 1.8 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Throw ratio | 0.16 - 0.40:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 19 dB |
| Auto signal detection | Yes |
| Air filter | Yes |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop, TV cabinet |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 350 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 217 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.3 kg |
| Width | 695 mm |
| Depth | 341 mm |
| Height | 156 mm |
| Package width | 530 mm |
| Package depth | 792 mm |
| Package height | 316 mm |
| Package weight | 16.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Power |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | 4K enhancement, Android TV, Auto Power On, Auto source search, Built-in speaker, Chromecast, Digital zoom, Frame interpolation, Long light source life, Quick Corner, Sound by Yamaha |
| Power consumption | 335 Watt (Normal Peak-mode), 210 Watt (Eco Peak-Mode), 2 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Products per pallet | 12 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Sound by Yamaha |

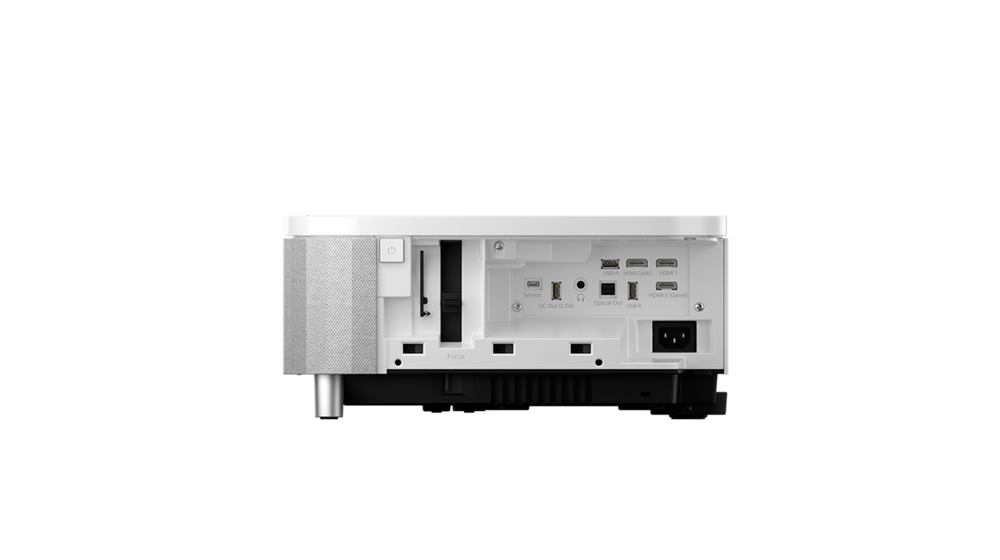

| Interface | USB 2.0-A (3x), USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, Jack plug out, Bluetooth, HDMI ARC, HDMI (HDCP 2.3) (3x) |
| Security features | Kensington lock, Security cable hole |
| Option type | Air filter, Ceiling mount, Suspension adapter |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document |
| Control panel | 0.62 inch with C2 Fine |
