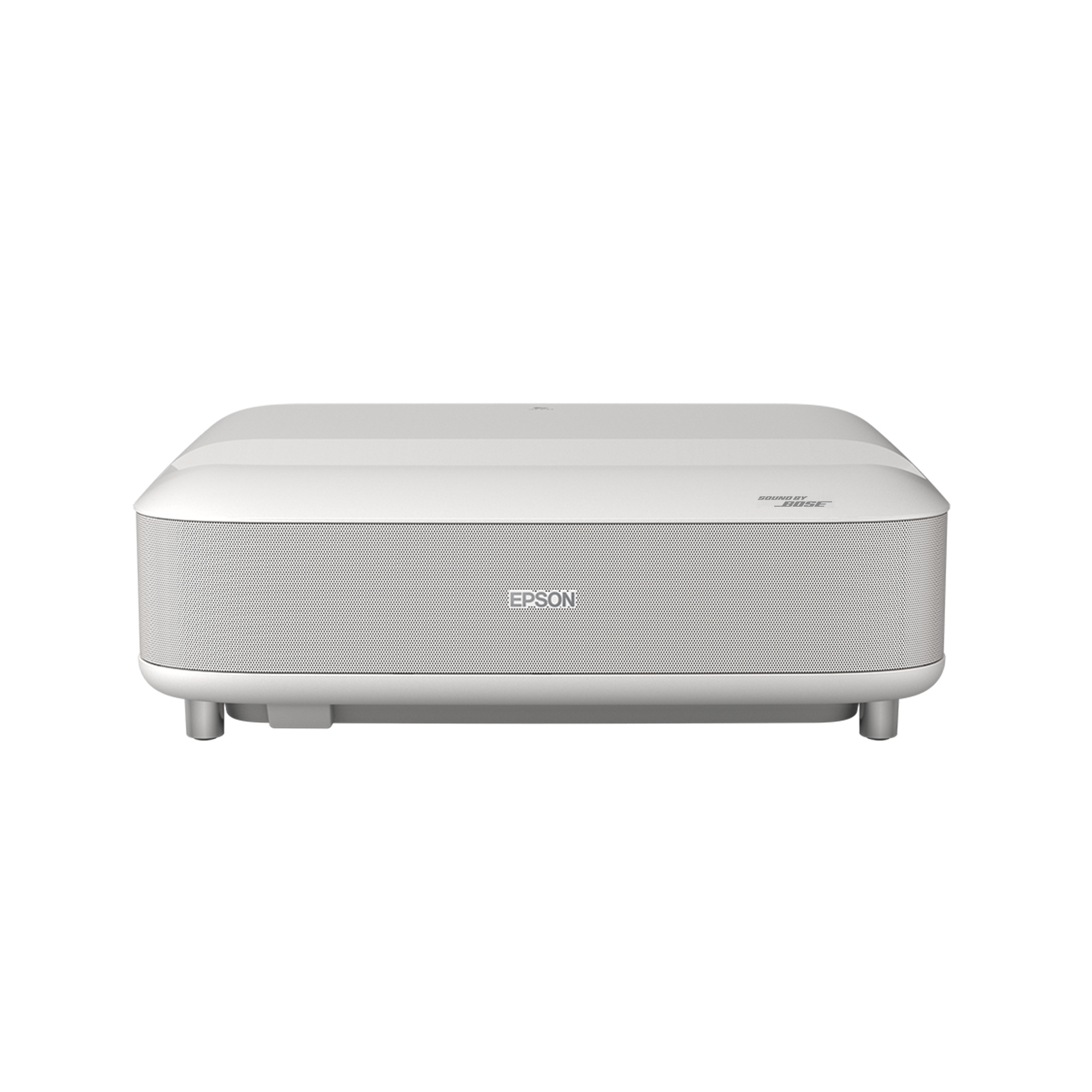

Lifestudio Grand EH-LS670W - White Diamond
Model EH-LS670WPart no. V11HB82040EAN 8715946742656
79 specifications
- Noise29 dB
- TypeStandard throw projector
- OSGoogle TV
- Weight7.4 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
Overview
- Noise
- 29 dB
- Type
- Standard throw projector
- OS
- Google TV
- Weight
- 7.4 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-LS670W
- Part number
- V11HB82040
- EAN / UPC
- 8715946742656
- Also known as
- Epson Lifestudio Grand EH-LS670W - White Diamond
Specifications
79 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 1524 - 3048 mm (60 - 120") |
| Projection distance | 0.3 - 0.7 m |
| Projection distance (wide) | 0.3 - 0.7 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 1800 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Colour light output | 3600 ANSI lumens |
| White light output | 3600 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Throw ratio | 0.25 - 0.62:1 |
Video
| Specification | Value |
|---|---|
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Consumer Electronics Control (CEC) support | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 29 dB |
| Noise level (economic mode) | 20 dB |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Compatible operating systems | Android |
| Operating system installed | Google TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in woofer | Yes |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop, TV cabinet |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 193 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 254 W |
| Power consumption (economy mode) | 103 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |

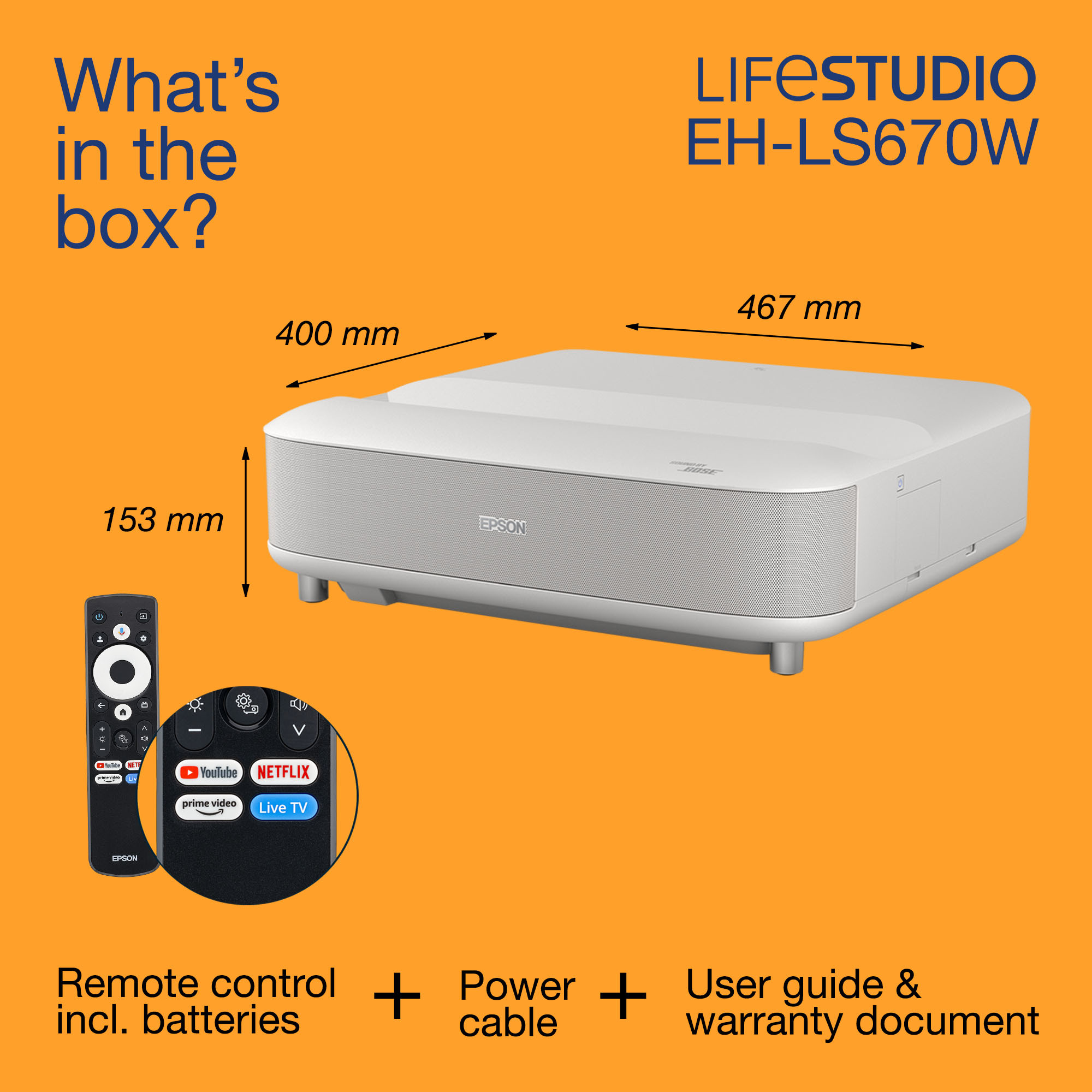

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.4 kg |
| Width | 467 mm |
| Depth | 400 mm |
| Height | 153 mm |
| Package width | 540 mm |
| Package depth | 560 mm |
| Package height | 235 mm |
| Package weight | 10.7 kg |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | No |
| Other features | 4K enhancement, AIPQ (Artificial Intelligence Picture Quality), AISR (Artificial Intelligence Super Resolution), Arc Correction, Auto Power On, Built-in speaker, CEC compatible, Chromecast, De-contour, Digital zoom, Dynamic Colour Booster, Frame interpolation, Game mode, Google TV, Local Contrast, L |
| Power consumption | 193 Watt (Normal On-Mode), 103 Watt (Eco On-Mode), 254 Watt (Normal Peak-mode), 162 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Speaker | 20W (2.1 ch: 2 × satellite + 1 × woofer) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Sound by Bose |
| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), Jack plug out, HDMI (HDCP 2.3) (2x), Digital coaxial audio out, HDMI (ARC/eARC), Wi-Fi 6E, Bluetooth® 5.2 |
| Security features | Kensington lock |
| Option type | Air filter |
| Box contents | Main unit, Power cable, Quick Setup Guide, Remote control incl. batteries, User guide, Warranty document |
| Control panel | 0.62 inch with C2 Fine |
