EH-LS300W
Model EH-LS300WPart no. V11HA07040EAN 8715946688749
78 specifications
- Noise37 dB
- TypeUltra short throw projector
- OSAndroid TV
- Weight7.2 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
Overview
- Noise
- 37 dB
- Type
- Ultra short throw projector
- OS
- Android TV
- Weight
- 7.2 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EH-LS300W
- Part numbers
- V11HA07040, V11HA07040DA
- EAN / UPC
- 8715946688749
- Also known as
- Epson EH-LS300W
Specifications
78 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1549.4 - 3048 mm (61 - 120") |
| Projection distance (wide) | 0 - 0.4 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 1800 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Matrix size | 1.55 cm (0.61") |
| Heat dissipation | 945 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Throw ratio | 0.26 - 0.35:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Colour modes (2D) | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video colour modes | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |

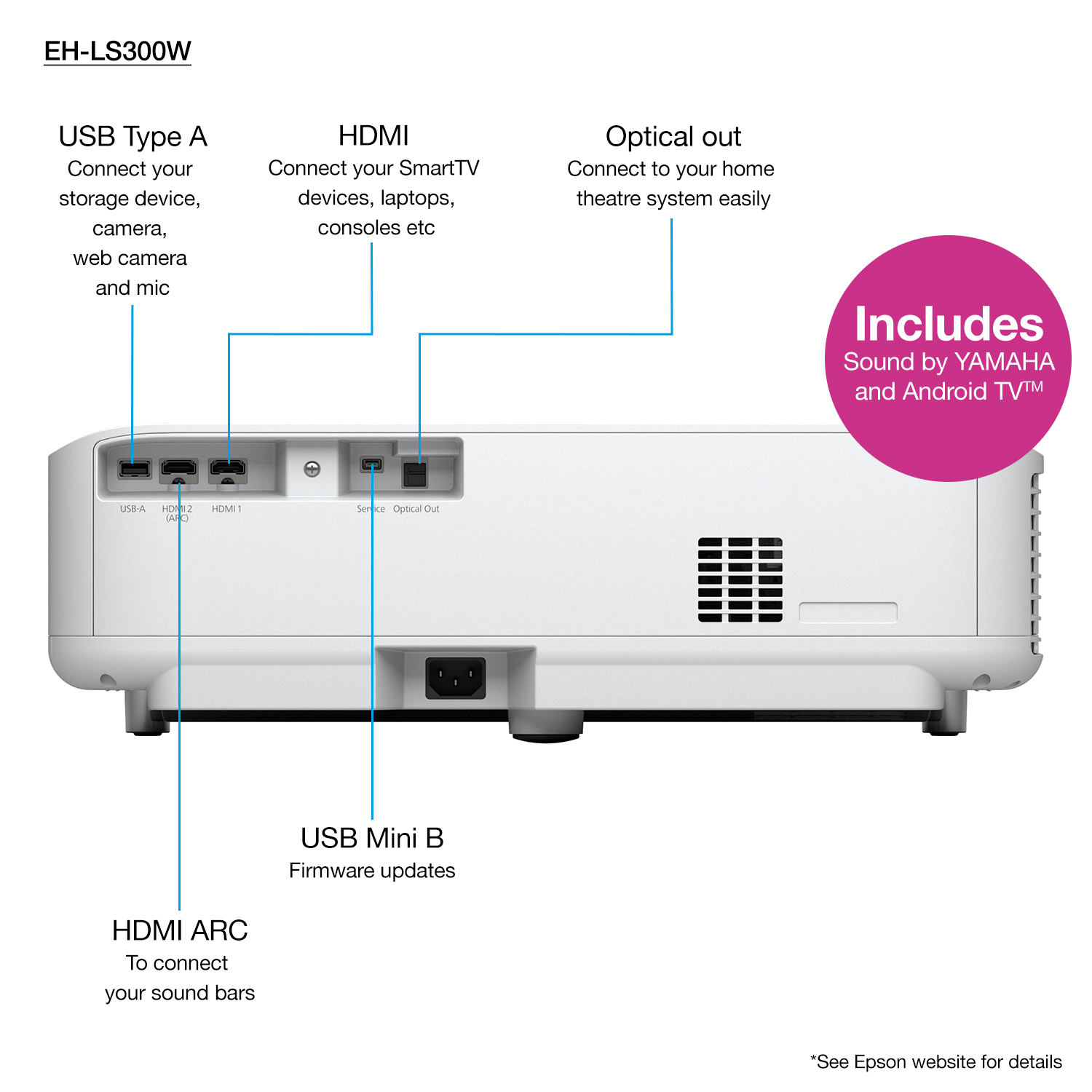

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 23 dB |
| HDCP | Yes |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Floor, TV cabinet |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 278 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 179 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.2 kg |
| Width | 467 mm |
| Depth | 400 mm |
| Height | 149 mm |
| Package width | 530 mm |
| Package depth | 565 mm |
| Package height | 232 mm |
| Package weight | 9.77 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | No |
| Other features | Android TV, Arc Correction, Built-in speaker, Chromecast, Google Search, Instant on/off, Long light source life, Sound by Yamaha |
| Power consumption | 215 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 179 Watt (Eco Peak-Mode), 2 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Products per pallet (UK) | 18 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A, USB 2.0 Mini-B, HDMI in (2x), Digital coaxial audio out, Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI ARC, HDMI (HDCP 2.3) |
| Box contents | CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries |
| Control panel | 0.61 inch with C2 Fine |
