EF-22N
Model EF-22NPart no. V11HB38440EAN 8715946735047
84 specifications
- Noise22 dB
- TypeStandard throw projector
- OSGoogle TV
- Weight3 kg
- ColourBlue
- Projector brightness1000 ANSI lumens
Overview
- Noise
- 22 dB
- Type
- Standard throw projector
- OS
- Google TV
- Weight
- 3 kg
- Colour
- Blue
- Projector brightness
- 1000 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EF-22N
- Part number
- V11HB38440
- EAN / UPC
- 8715946735047
- Also known as
- Epson EF-22N
Specifications
84 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Projection distance | 0 - 1.33 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 500 ANSI lumens |
| Vertical scan range | 200 - 240 Hz |
| Colour light output | 1000 ANSI lumens |
| Matrix size | 1.57 cm (0.62") |
| White light output | 1000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 13.9 mm |
| Fixed focal length | 13.9 mm |
| F-number (relative aperture) | 2 |
| Throw ratio | 1.00 - 1.82:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 8 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 22 dB |
| Noise level (economic mode) | 18 dB |
| HDCP | Yes |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Operating system installed | Google TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | Blue |
| Placement | Desktop, Floor, TV cabinet |
| Cable lock slot | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 108 W |
| Power consumption (economy mode) | 78 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
| Number of pieces | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | -10 - 60% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 236 mm |
| Depth | 191 mm |
| Height | 193 mm |
| Package width | 296 mm |
| Package depth | 296 mm |
| Package height | 283 mm |
| Package weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Other features | Automatic keystone correction, Built-in speaker, Chromecast, Google Search, Google TV, Horizontal and vertical keystone correction, Instant on/off, Quick Corner |
| Power consumption | 75 Watt (Normal On-Mode), 49 Watt (Eco On-Mode), 105 Watt (Normal Peak-mode), 75 Watt (Eco Peak-Mode), |
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 2.22 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.22 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 56 pc(s) |
| Products per pallet (UK) | 84 pc(s) |
| Products per pallet layer | 12 pc(s) |
| Products per pallet layer (UK) | 8 pc(s) |
Other features
| Specification | Value |
|---|---|

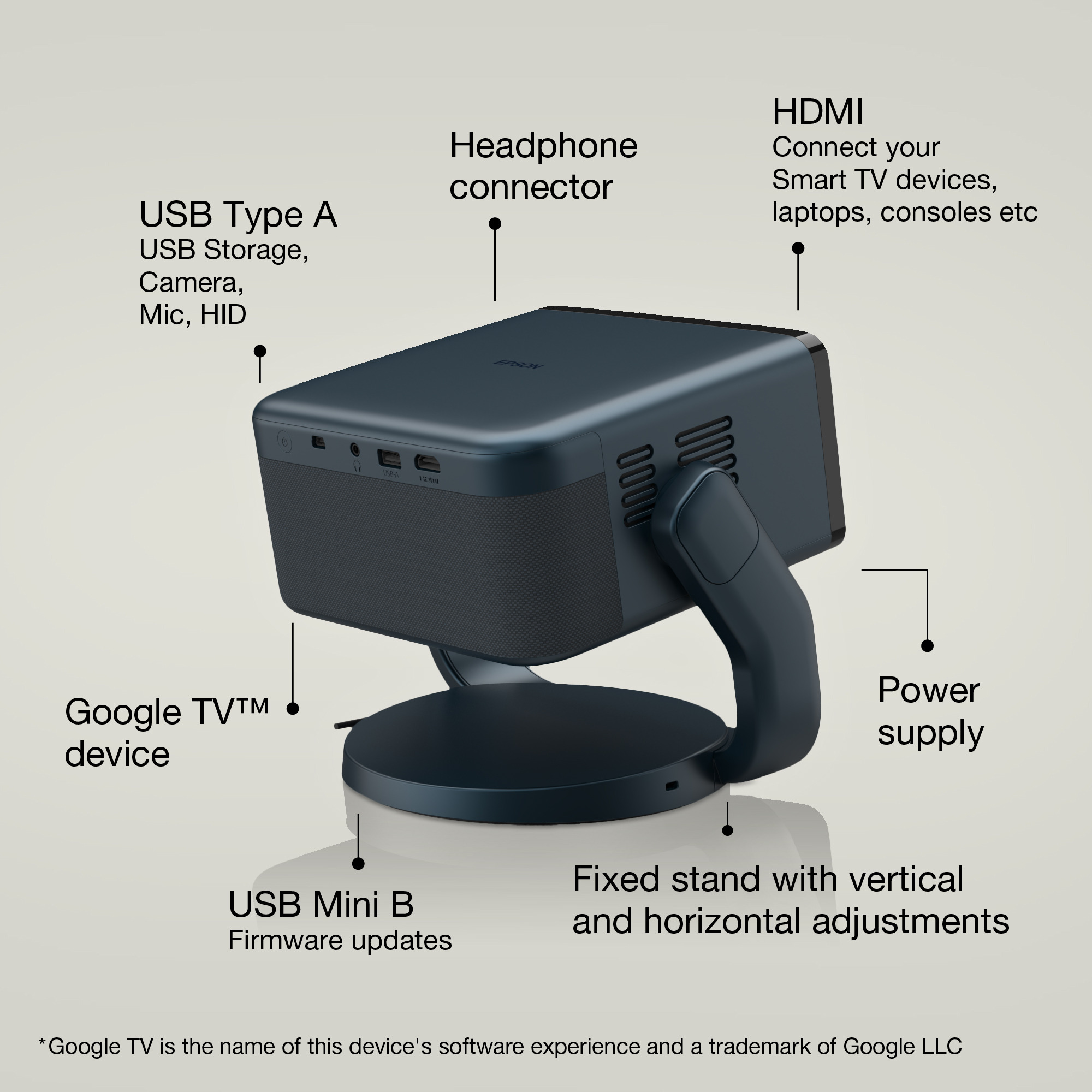

| Interface | USB 2.0-A, USB 2.0 Mini-B, Jack plug out, HDMI ARC, HDMI (HDCP 2.3), Bluetooth |

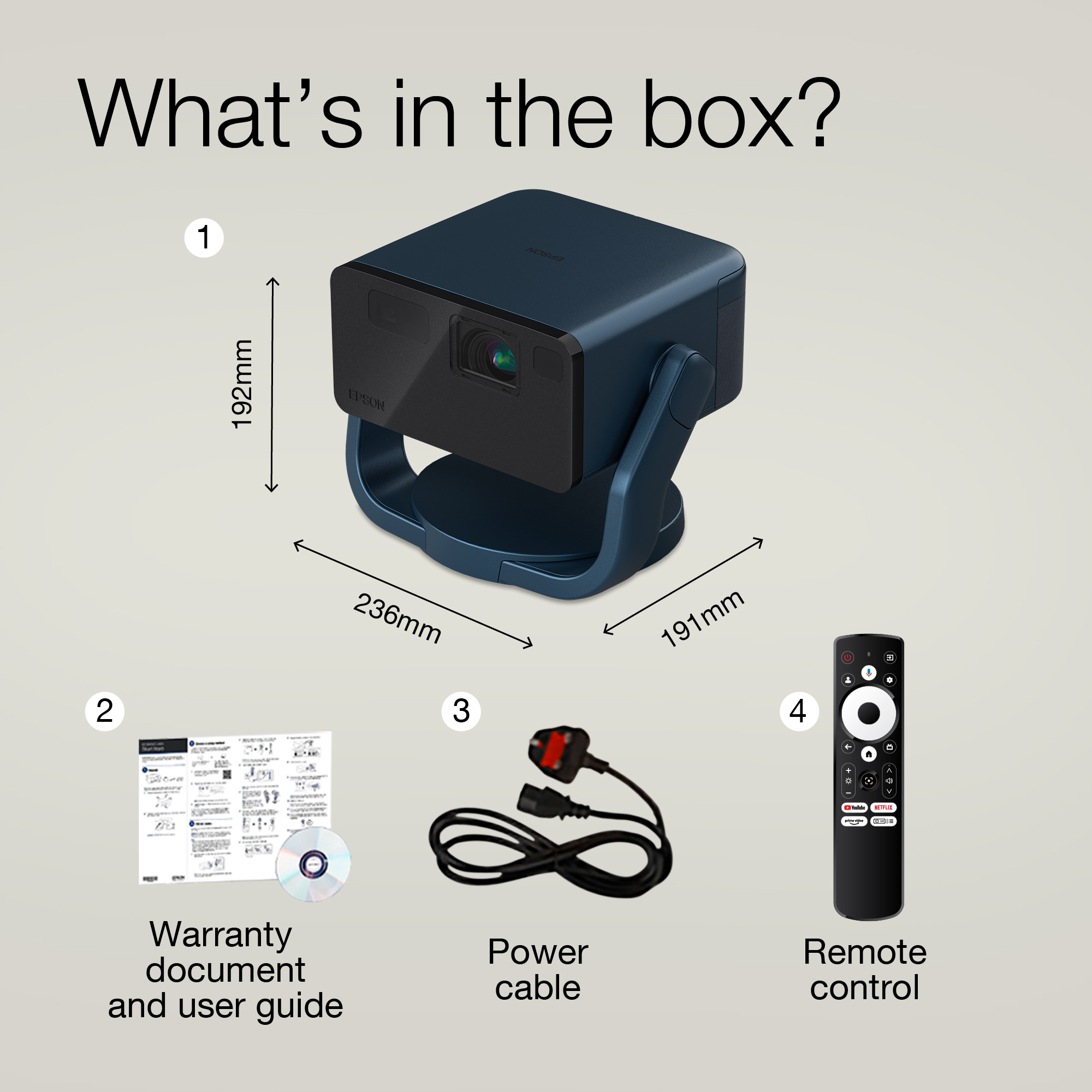

| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document |
| Control panel | 0.62 inch |
