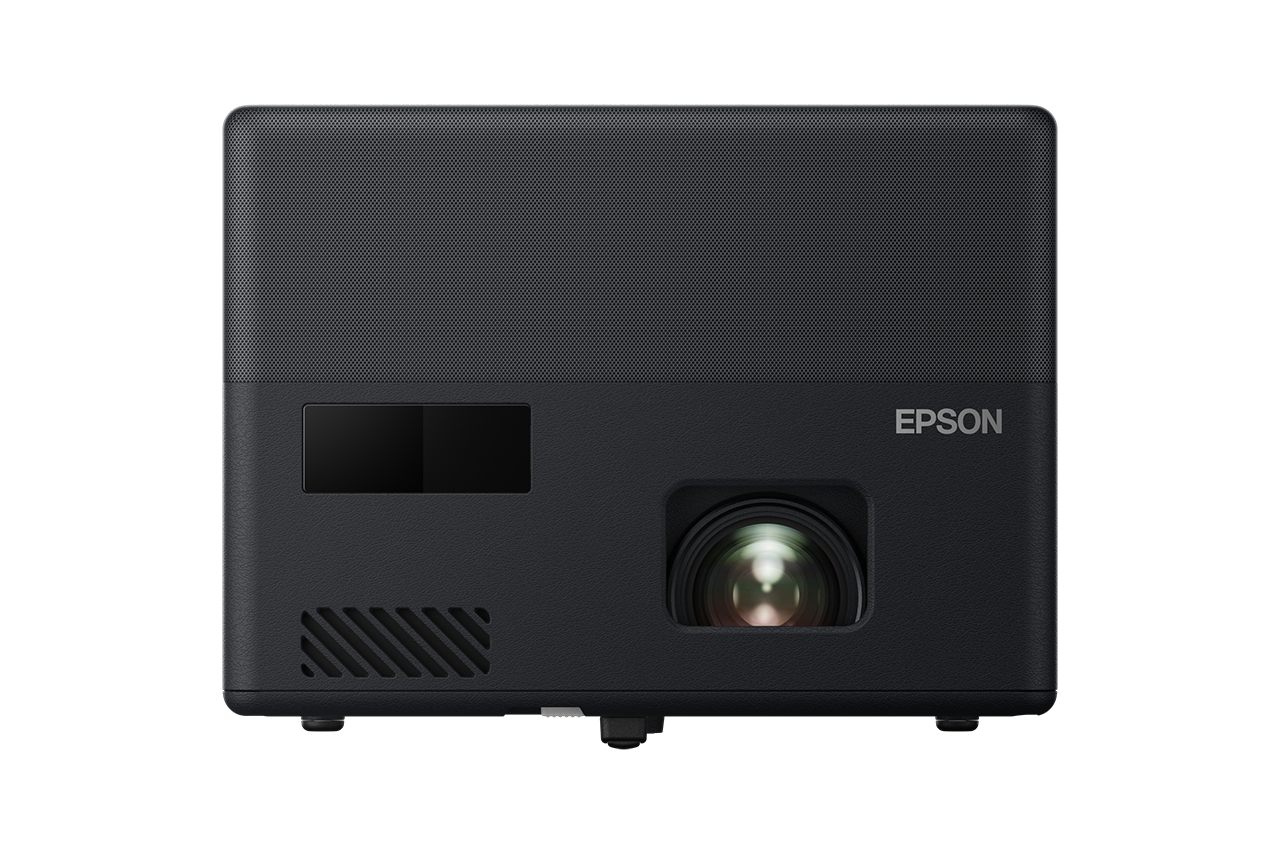

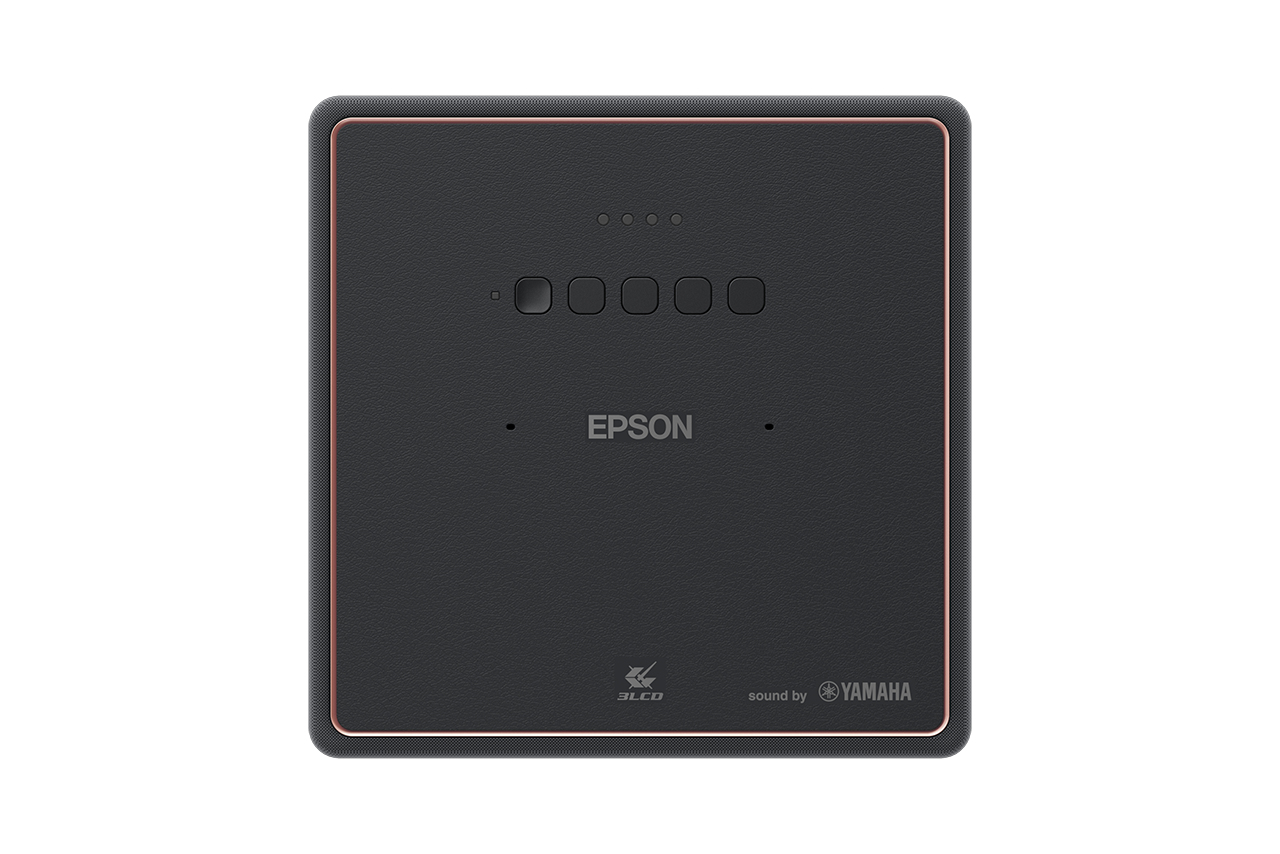

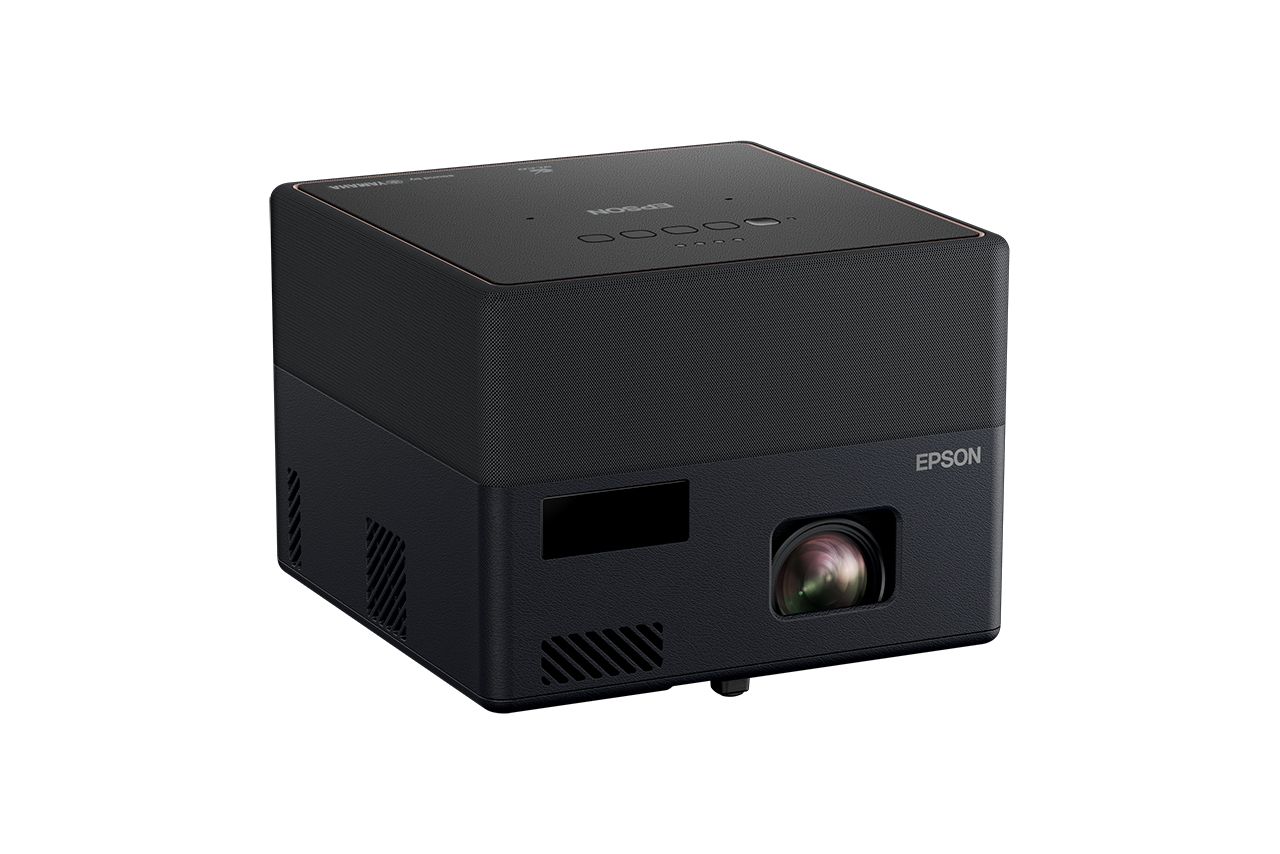

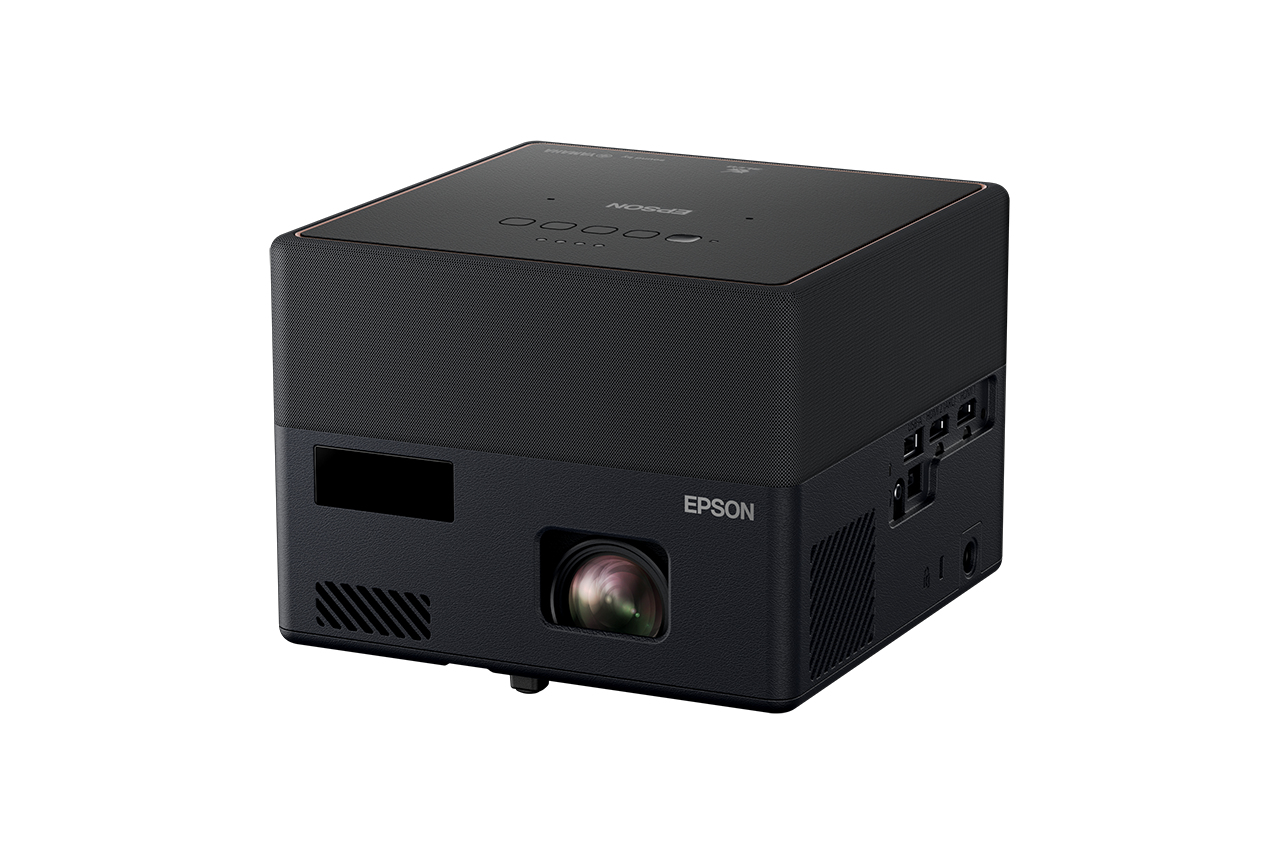

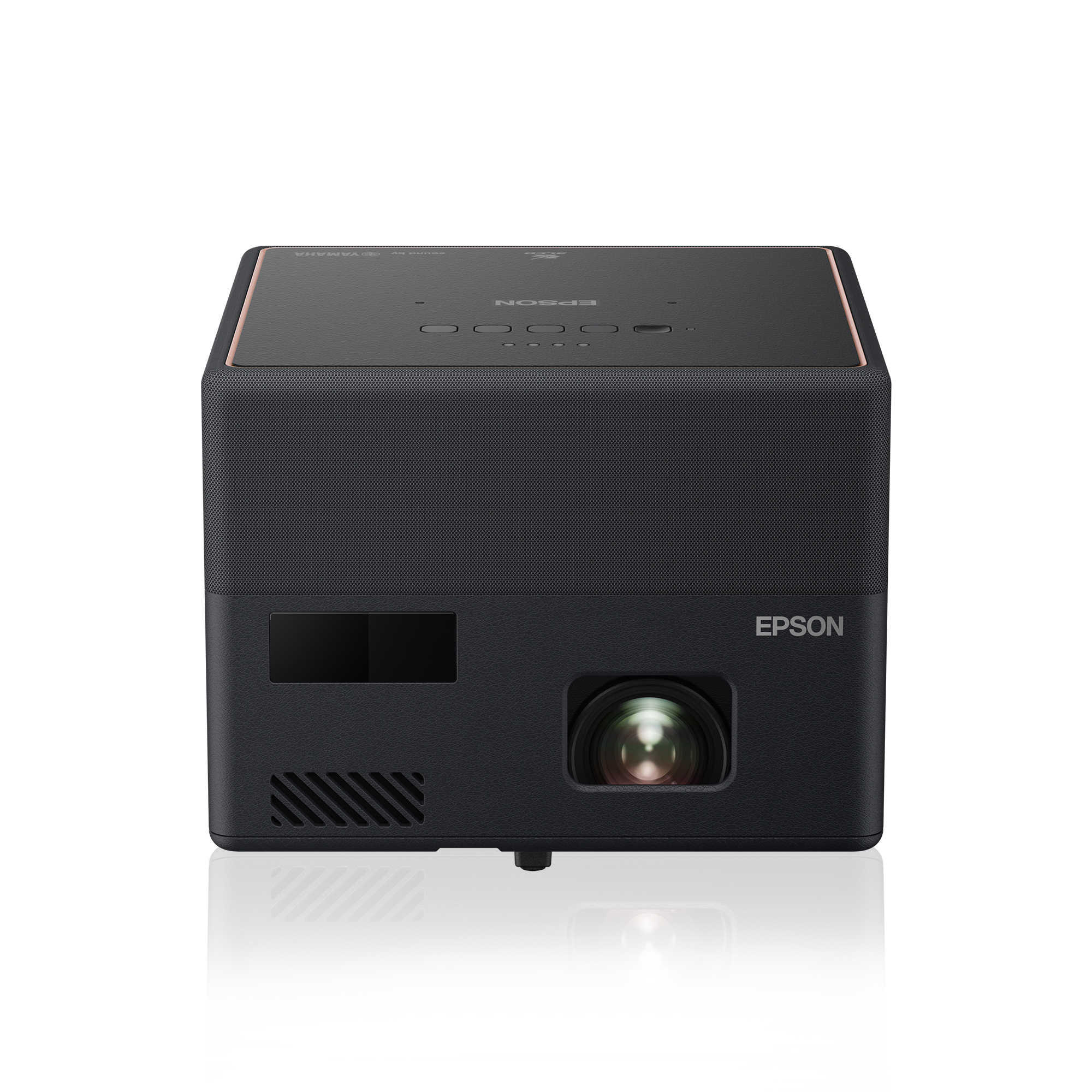

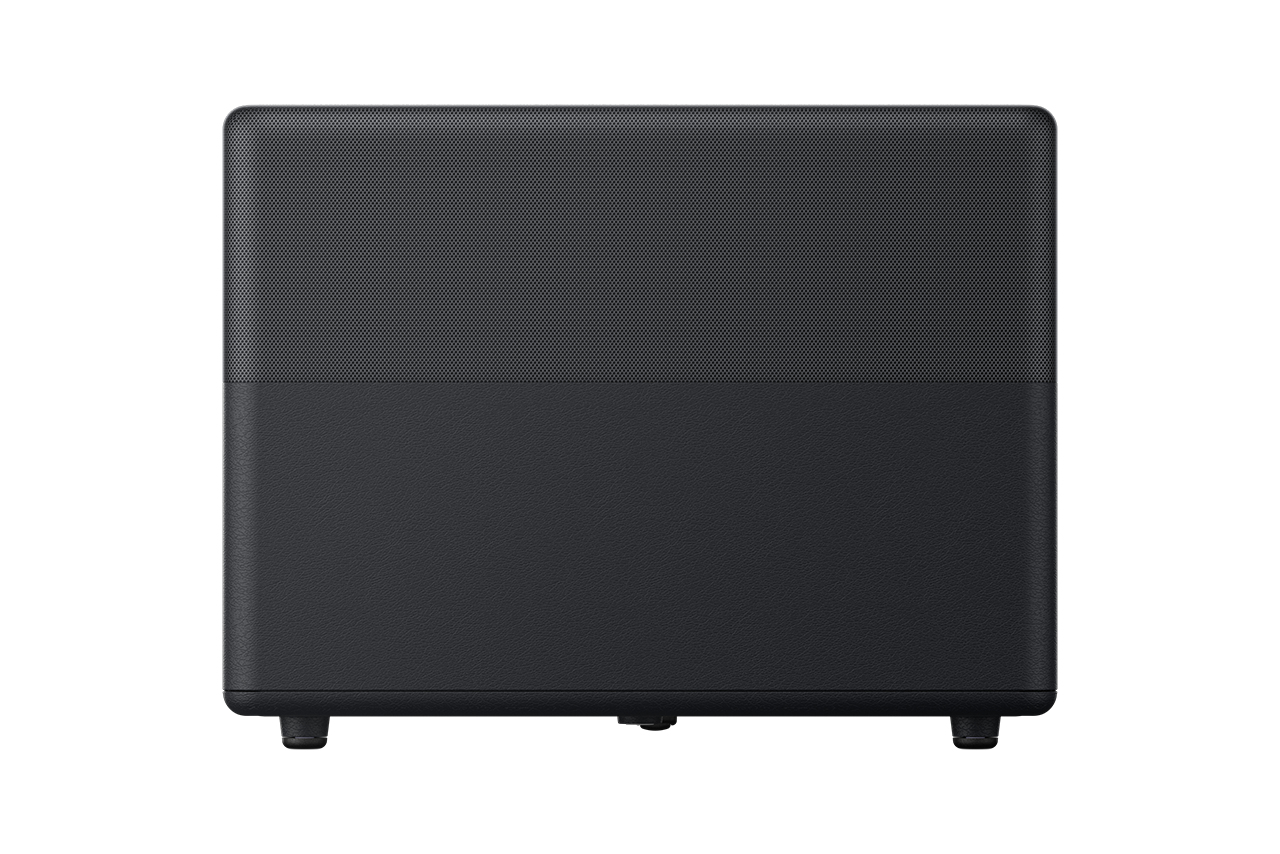

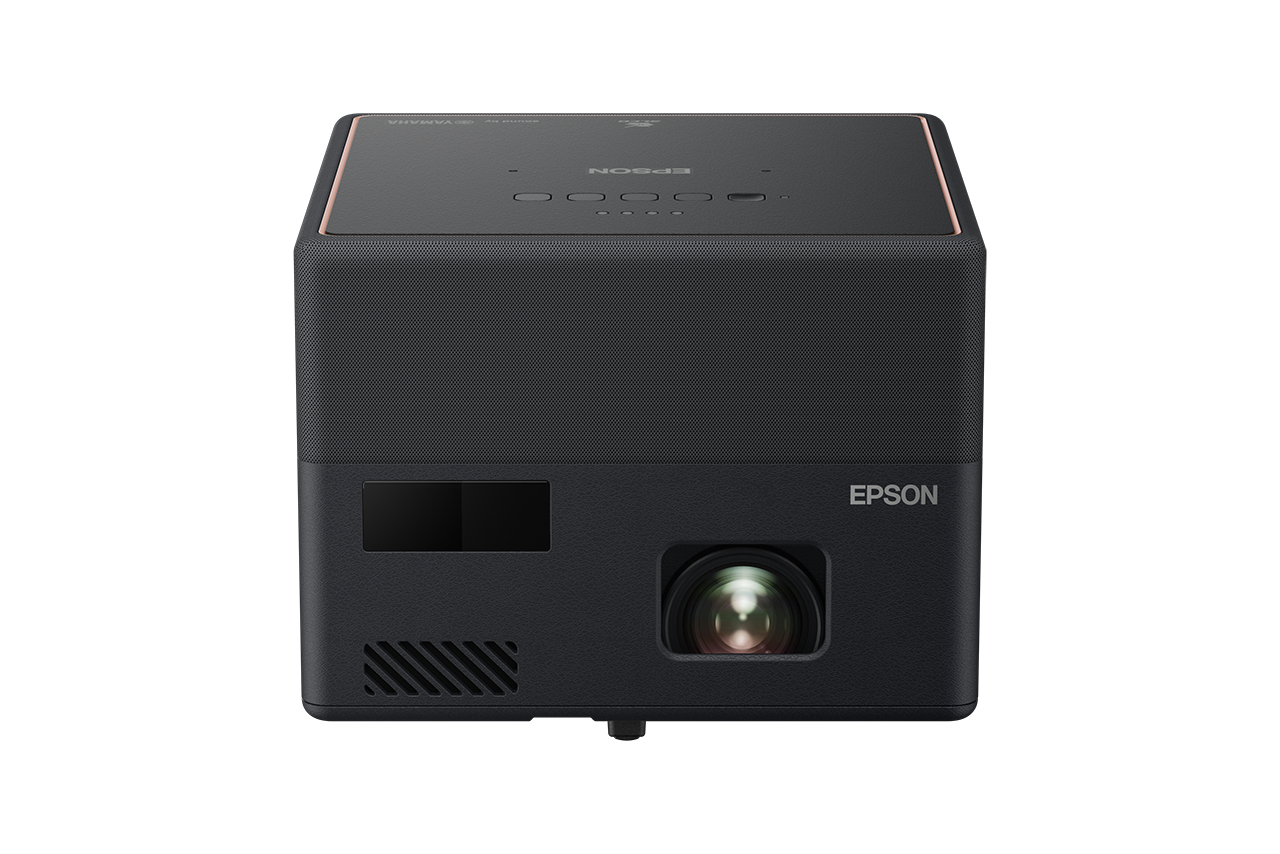

EF-12
Model EF-12Part no. V11HA14040EAN 8715946688787
75 specifications
- Noise27 dB
- OSAndroid TV
- Weight2.1 kg
- ColourBlack
- Projector brightness1000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 27 dB
- OS
- Android TV
- Weight
- 2.1 kg
- Colour
- Black
- Projector brightness
- 1000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EF-12
- Part number
- V11HA14040
- EAN / UPC
- 8715946688787
- Also known as
- Epson EF-12
Specifications
75 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Projection distance | 0 - 1.33 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 500 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Colour light output | 1000 ANSI lumens |
| Keystone correction, horizontal | ±40° |
| Keystone correction, vertical | ±34° |
| Matrix size | 1.57 cm (0.62") |
| White light output | 1000 ANSI lumens |
| Heat dissipation | 347 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 12000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 13.9 mm |
| Fixed focal length | 13.9 mm |
| F-number (relative aperture) | 2 |
| Throw ratio | 1.00 - 1.00:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 27 dB |
| Noise level (economic mode) | 22 dB |
| Country of origin | Philippines |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Placement | Desktop, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 102 W |
| Power consumption (economy mode) | 73 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Number of pieces | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 135 mm |
| Package width | 250 mm |
| Package depth | 244 mm |
| Package height | 285 mm |
| Package weight | 3.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Other features | Android TV, Arc Correction, Automatic keystone correction, Built-in speaker, Chromecast, Google Search, Horizontal and vertical keystone correction, Instant on/off, Long light source life, Sound by Yamaha |
| Power consumption | 102 Watt (Normal Peak-mode), 73 Watt (Eco Peak-Mode), |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 84 pc(s) |
| Products per pallet (UK) | 84 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A, USB 2.0, Jack plug out, HDMI ARC, HDMI (HDCP 2.3) |
| Security features | Kensington lock |
| Box contents | Main unit, Power Code, Quick Start Guide, Remote control incl. batteries, User guide |
| Control panel | 0.62 inch with MLA (D10) |
