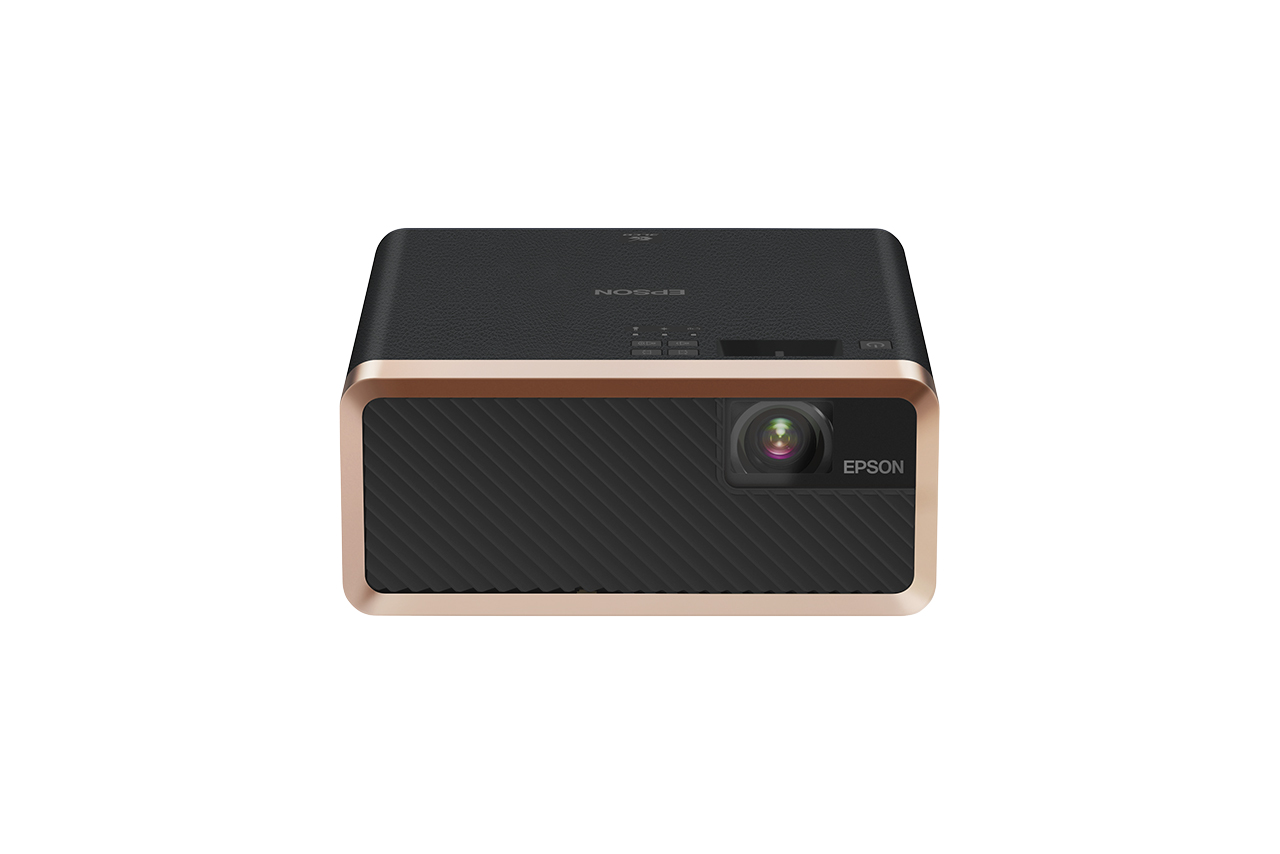

EF-100B Standard throw projector 2000 ANSI lumens 3LCD WXGA (1280x800) Black
Model EF-100BPart no. V11H914340EAN 8715946668505
87 specifications
- Noise29 dB
- TypeStandard throw projector
- Weight2.7 kg
- ColourBlack
- Projector brightness2000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 29 dB
- Type
- Standard throw projector
- Weight
- 2.7 kg
- Colour
- Black
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EF-100B
- Part numbers
- V11H914340, V11H914120, V11H914140, V11H914153, V11H914141
- EAN / UPC
- 8715946668505, 9314020631061, 8715946668178, 8715946674698
- Also known as
- Epson EF-100B Standard throw projector 2000 ANSI lumens 3LCD WXGA (1280x800) Black
Specifications
87 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Projection distance | 1.34 - 1.81 m |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -45 - 45° |
| Heat dissipation | 584.8 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 12000 h |
| Lamp power | 172 W |
| Lamp power (economic mode) | 115 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 13.5 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.04 - 1.40:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
| Supported video modes | 720p, 768p |
| Video colour modes | Cinema, Dynamic, Natural, Bright cinema |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| PC Audio out | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 29 dB |
| Noise level (economic mode) | 26 dB |
| Country of origin | Philippines |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | Black |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 172 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 115 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 210 mm |
| Depth | 230 mm |
| Height | 92 mm |
| Package width | 305 mm |
| Package depth | 305 mm |
| Package height | 220 mm |
| Package weight | 4.19 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 54 pc(s) |
| Products per pallet (UK) | 81 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Products per pallet layer (UK) | 9 pc(s) |
