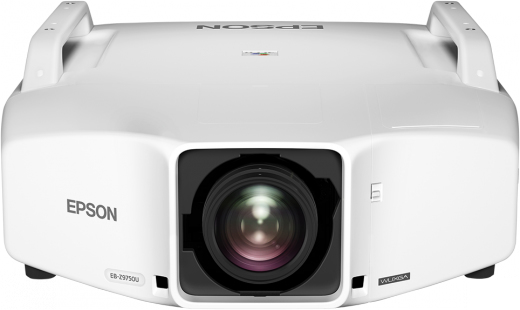

Epson EB-Z9750U

Epson EB-Z9750U

Model EB-Z9750UPart no. V11H616040EAN 8715946541327

86 specifications
  • Noise38 dB
  • TypeLarge venue projector
  • Weight25 kg
  • ColourWhite
  • Projector brightness7500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Large venue projector
Weight
25 kg
Colour
White
Projector brightness
7500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-Z9750U
Part number
V11H616040
EAN / UPC
8715946541327
Also known as
Epson EB-Z9750U

Specifications

86 specifications in 15 groups

Projector

Projector brightness7500 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)15000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 12700 mm (60 - 500")
Projection distance (wide)2 - 17.2 m
Projection distance (tele)3.3 - 27.8 m
Contrast ratio (dynamic)15000:1
Projector brightness (economic mode)6600 ANSI lumens
Colour light output7500 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
White light output7500 ANSI lumens

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power380 W

Lens system

FocusMotorized
Focal length range36 - 57.5 mm
Aperture range (F-F)1.65 - 2.51
Zoom ratio1.61:1
Throw ratio1.57 - 2.56:1
Horizontal lens shift range-18 - -18%
Vertical lens shift range-60 - -60%

Video

Full HDYes
3DNo
Video colour modesDICOM simulation mode, Dynamic, Photo, Presentation, sRGB, Theatre

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portYes
S-Video inputs quantity1
USB 2.0 ports quantity1
Serial interface typeRS-232
BNC input ports1

Network

Ethernet LANNo

Features

Noise level38 dB
Noise level (economic mode)35 dB
Country of originChina

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)809 W
Power consumption (standby)0.37 W
Power consumption (economy mode)721 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight25 kg
Width741 mm
Depth534 mm
Height197 mm
Package width650 mm
Package depth890 mm
Package height365 mm
Package weight32.5 kg

Packaging content

Remote control includedYes
Cables includedAC, HDMI
ManualYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection

Technical details

Power consumption809 Watt (Normal Peak-mode), 721 Watt (Eco Peak-Mode), 0.37 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height161 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)161 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet4 pc(s)
Products per pallet (UK)4 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceUSB 1.0-A, USB 2.0 Type B (Service Only), RS-232C, WLAN, VGA in, VGA out, DVI in, HDMI in, Composite in, Component in, BNC in (6x), S-Video in, HDBaseT
RS-232 ports1
Security featuresKensington lock, Security cable hole
Option typeDocument camera
Box contentsComputer cable, HDMI Cable Clamp, Power cable, Remote control incl. batteries, User's Manual Set
Control panel1.03 inch with C2 Fine
