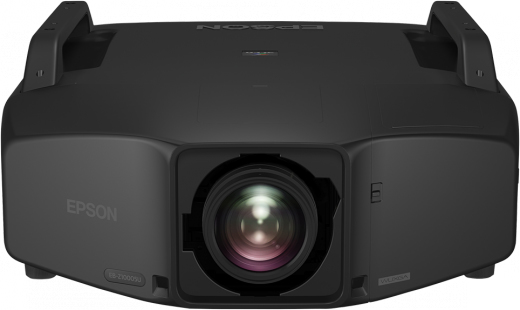

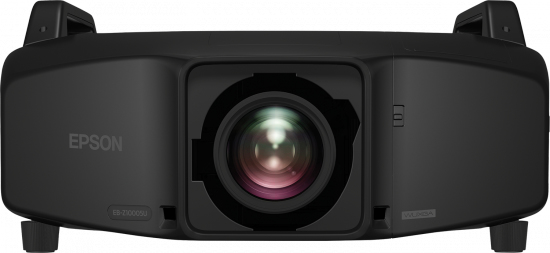

Epson EB-Z10005U

Epson EB-Z10005U

Model EB-Z10005UPart no. V11H610140EAN 8715946541297

101 specifications
  • Noise40 dB
  • TypeLarge venue projector
  • Weight26 kg
  • ColourBlack
  • Projector brightness10000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
40 dB
Type
Large venue projector
Weight
26 kg
Colour
Black
Projector brightness
10000 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-Z10005U
Part number
V11H610140
EAN / UPC
8715946541297
Also known as
Epson EB-Z10005U

Specifications

101 specifications in 17 groups

Projector

Projector brightness10000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)15000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 12700 mm (60 - 500")
Projection distance2 - 37.8 m
Projection distance (wide)2 - 17.2 m
Projection distance (tele)3.3 - 27.8 m
Contrast ratio (dynamic)15000:1
Projector brightness (economic mode)6600 ANSI lumens
Colour light output10000 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
Matrix size2.62 cm (1.03")
Matrix type3-panel (p-Si TFT active)
White light output10000 ANSI lumens

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)4000 h
Lamp power380 W
Lamps quantity1 lamp(s)

Lens system

FocusMotorized
Focal length range36 - 57.5 mm
Aperture range (F-F)1.65 - 2.51
Zoom ratio1.61:1
Throw ratio1.57 - 2.56:1
Horizontal lens shift range-18 - -18%
Vertical lens shift range-60 - -60%

Video

Full HDYes
HD-ReadyYes
3DNo
Video colour modesDICOM simulation mode, Dynamic, Photo, Presentation, sRGB, Theatre

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portYes
S-Video inputs quantity1
USB 2.0 ports quantity2
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Card reader integratedNo

Features

Noise level40 dB
Noise level (economic mode)35 dB
Country of originChina

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)1060 W
Power consumption (standby)0.37 W
Power consumption (economy mode)768 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight26 kg
Width741 mm
Depth534 mm
Height197 mm
Package width660 mm
Package depth890 mm
Package height380 mm
Package weight33.9 kg

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, HDMI
ManualYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection

Technical details

Power consumption1,060 Watt (Normal Peak-mode), 788 Watt (Eco Peak-Mode), 0.37 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height161 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)161 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet4 pc(s)
Products per pallet (UK)4 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceUSB 1.0-A, USB 2.0 Type B (Service Only), RS-232C, VGA in, VGA out, DVI in, HDMI in, Composite in, Component in, BNC in (6x), S-Video in, HDBaseT, HD-SDI
RS-232 ports1
Security featuresKensington lock, Security cable hole
Option typeDocument camera
Box contentsComputer cable, HDMI Cable Clamp, Power cable, Remote control incl. batteries, User's Manual Set
Control panel1.03 inch with C2 Fine
