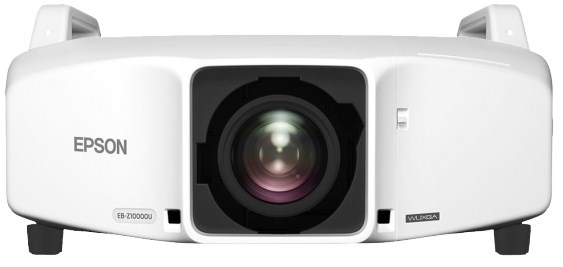

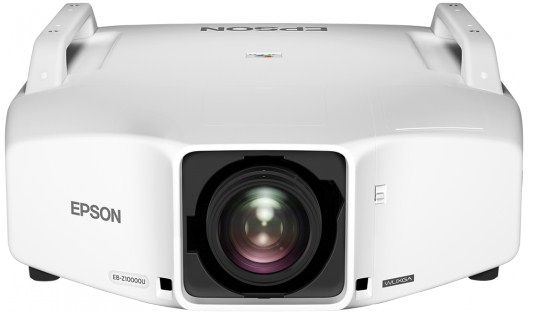

Epson EB-Z10000U

Epson EB-Z10000U

Model EB-Z10000UPart no. V11H610040EAN 8715946541280

101 specifications
  • Display2.62 cm (1.03")
  • Noise40 dB
  • TypeLarge venue projector
  • Weight26 kg
  • ColourWhite
  • Projector brightness10000 ANSI lumens
See all specifications

Overview

Display
2.62 cm (1.03")
Noise
40 dB
Type
Large venue projector
Weight
26 kg
Colour
White
Projector brightness
10000 ANSI lumens
Brand
Epson
Model
EB-Z10000U
Part number
V11H610040
EAN / UPC
8715946541280
Also known as
Epson EB-Z10000U

Specifications

101 specifications in 17 groups

Projector

Projector brightness10000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)15000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 12700 mm (60 - 500")
Projection distance (wide)2 - 17.2 m
Projection distance (tele)3.3 - 27.8 m
Contrast ratio (dynamic)15000:1
Projector brightness (economic mode)6600 ANSI lumens
Vertical scan range50 - 85 Hz
Colour light output10000 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
White light output10000 ANSI lumens

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)4000 h
Lamp power380 W
Lamp power (economic mode)304 W

Lens system

FocusMotorized
Focal length range36 - 57.5 mm
Aperture range (F-F)1.65 - 2.51
Zoom capabilityYes
Zoom ratio1.61:1
Throw ratio1.57 - 2.56:1
Horizontal lens shift range-18 - -18%
Vertical lens shift range-60 - -60%

Video

Full HDYes
3DNo
Video colour modesDICOM simulation mode, Dynamic, Photo, Presentation, sRGB, Theatre
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portYes
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC in (D-Sub)Yes
BNC input ports6
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0

Storage

Card reader integratedNo

Features

Noise level40 dB
Noise level (economic mode)35 dB
HDCPNo
Country of originChina

Design

Product typeLarge venue projector
Market positioningPortable
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayYes
DisplayLCD
Display diagonal2.62 cm (1.03")

Power

Power sourceAC
Power consumption (typical)1060 W
Power consumption (standby)0.37 W
Power consumption (economy mode)788 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight26 kg
Width741 mm
Depth534 mm
Height197 mm
Package width655 mm
Package depth893 mm
Package height369 mm
Package weight33.7 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, HDMI
ManualYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection

Technical details

Power consumption1,060 Watt (Normal Peak-mode), 788 Watt (Eco Peak-Mode), 0.37 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height161 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)161 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet4 pc(s)
Products per pallet (UK)4 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceUSB 1.0-A, USB 2.0 Type B (Service Only), RS-232C, VGA in, VGA out, DVI in, HDMI in, Composite in, Component in, BNC in (6x), S-Video in, HDBaseT, HD-SDI
RS-232 ports1
Security featuresKensington lock, Security cable hole
Option typeDocument camera
Box contentsComputer cable, HDMI Cable Clamp, Power cable, Remote control incl. batteries, User's Manual Set
Control panel1.03 inch with C2 Fine
