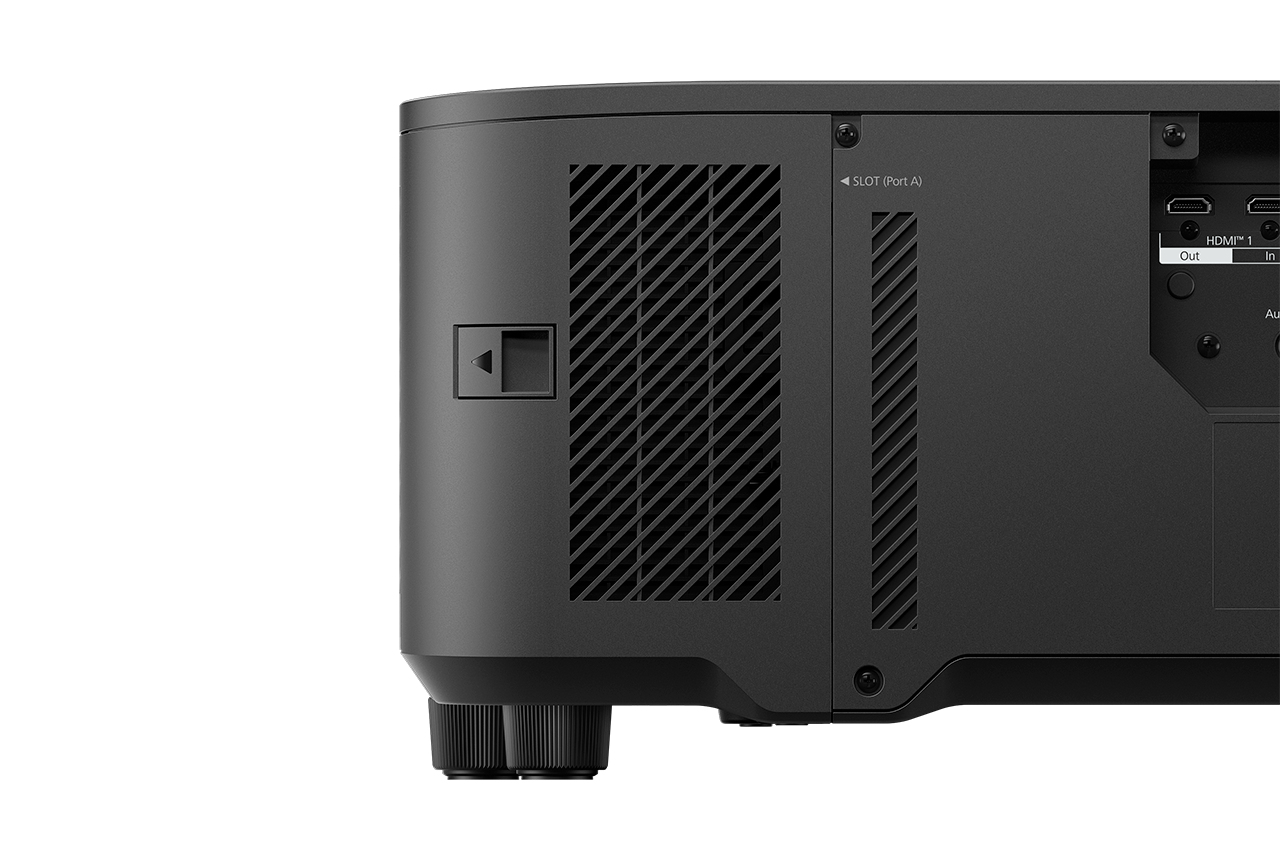

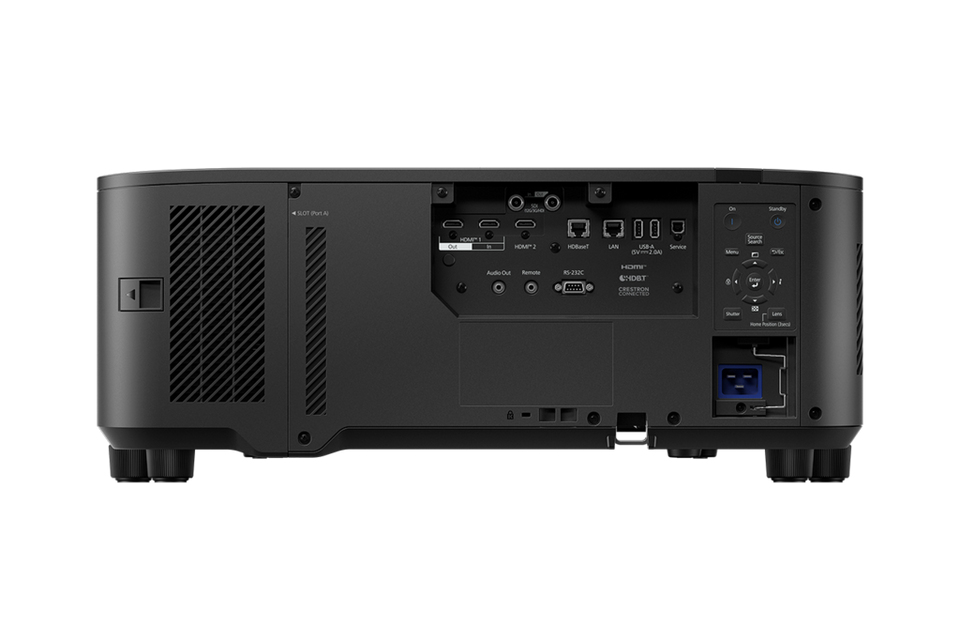

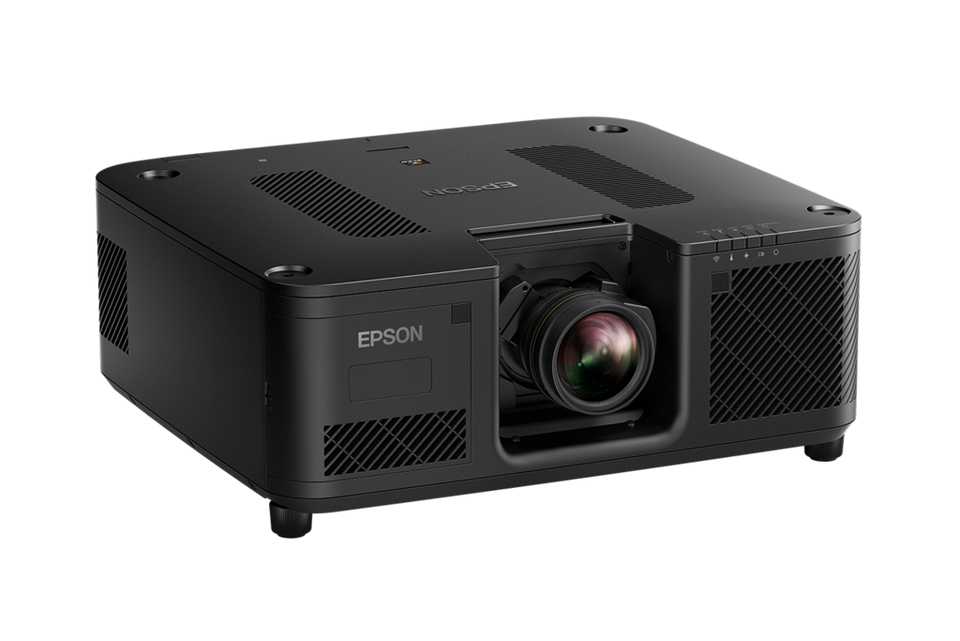

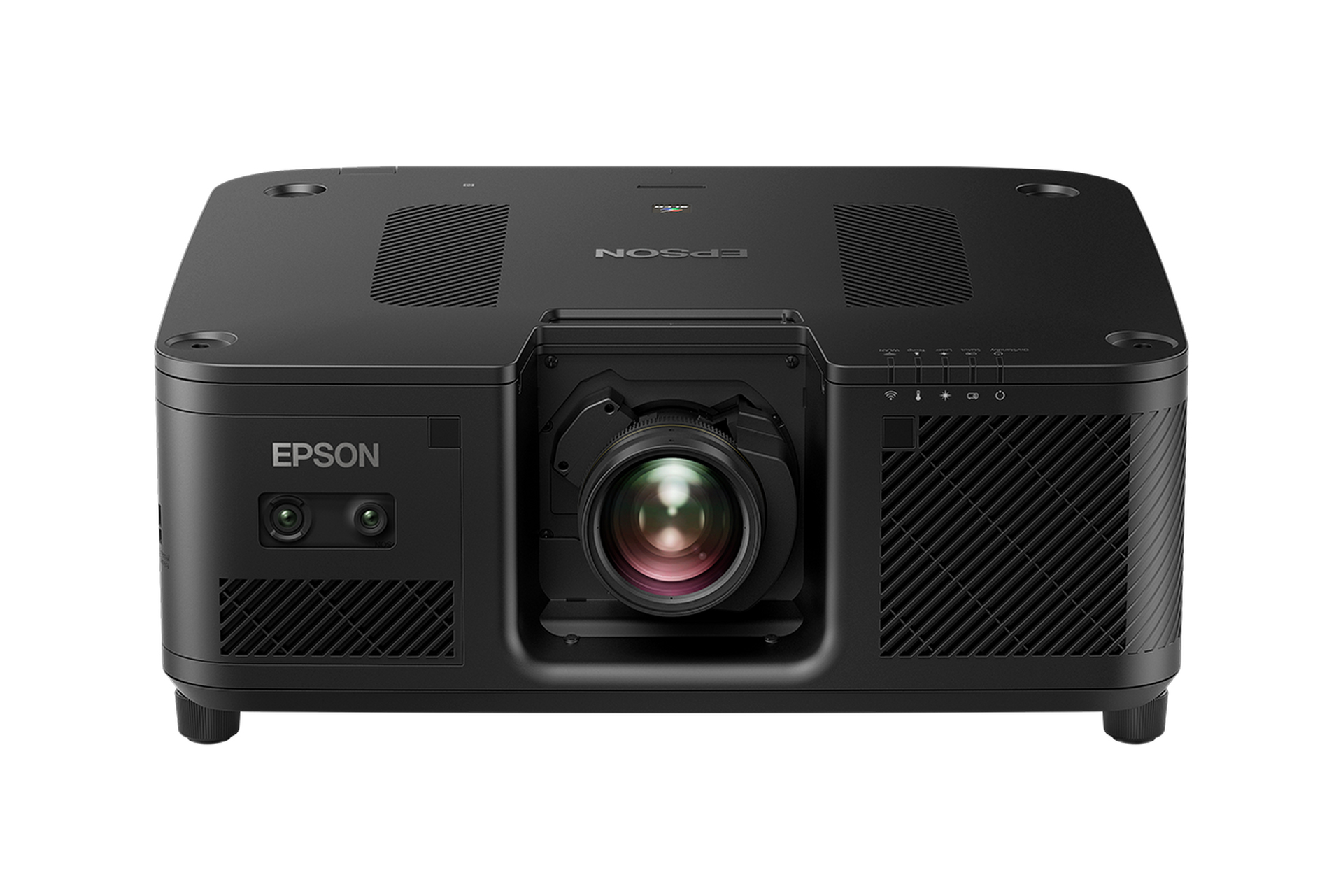

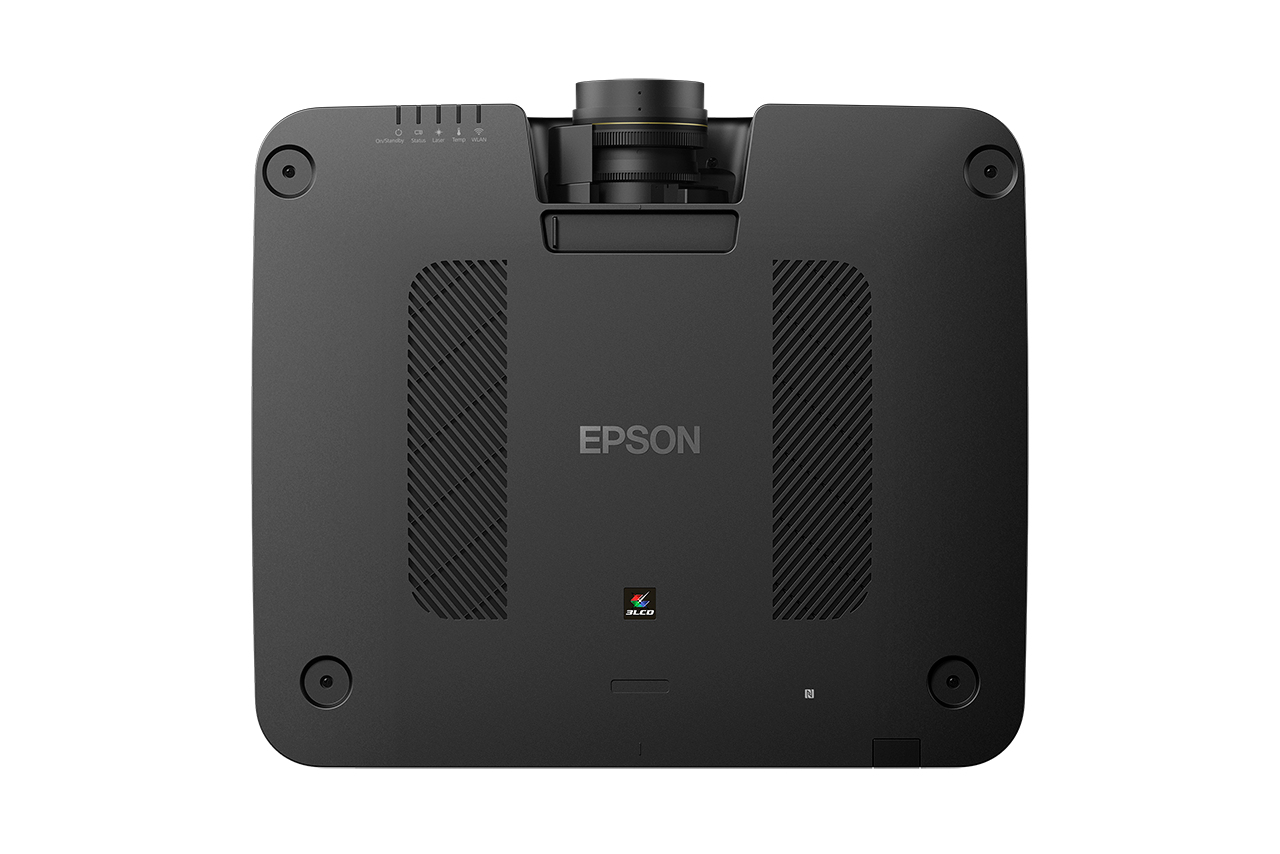

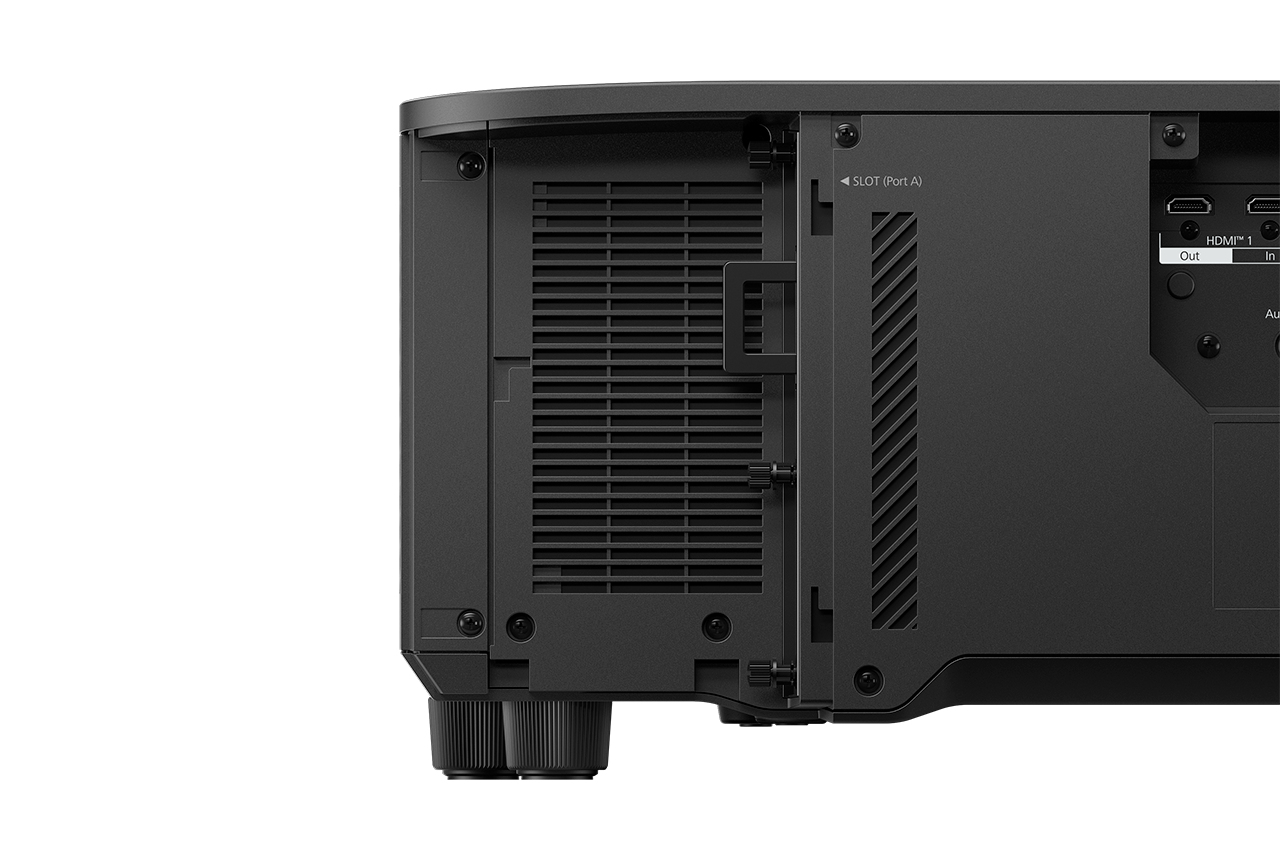

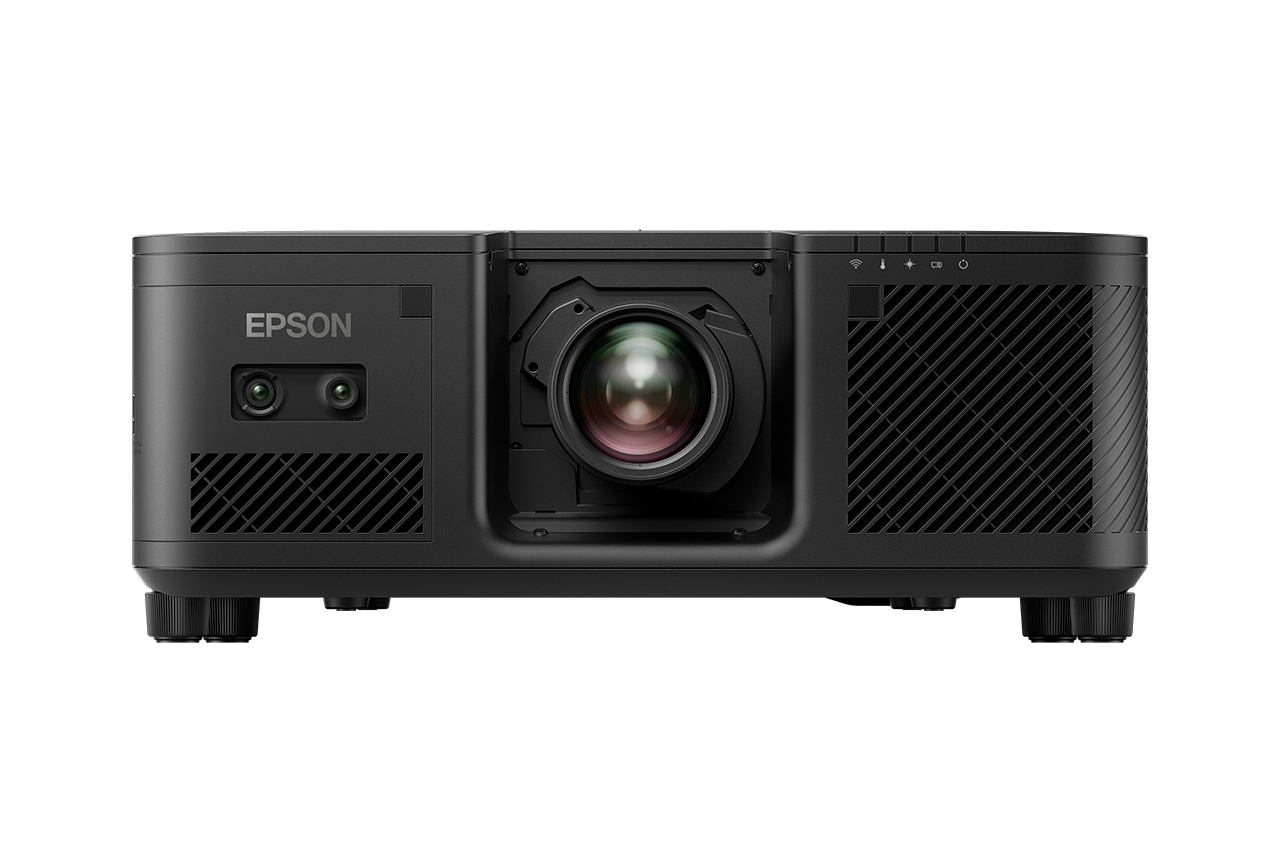

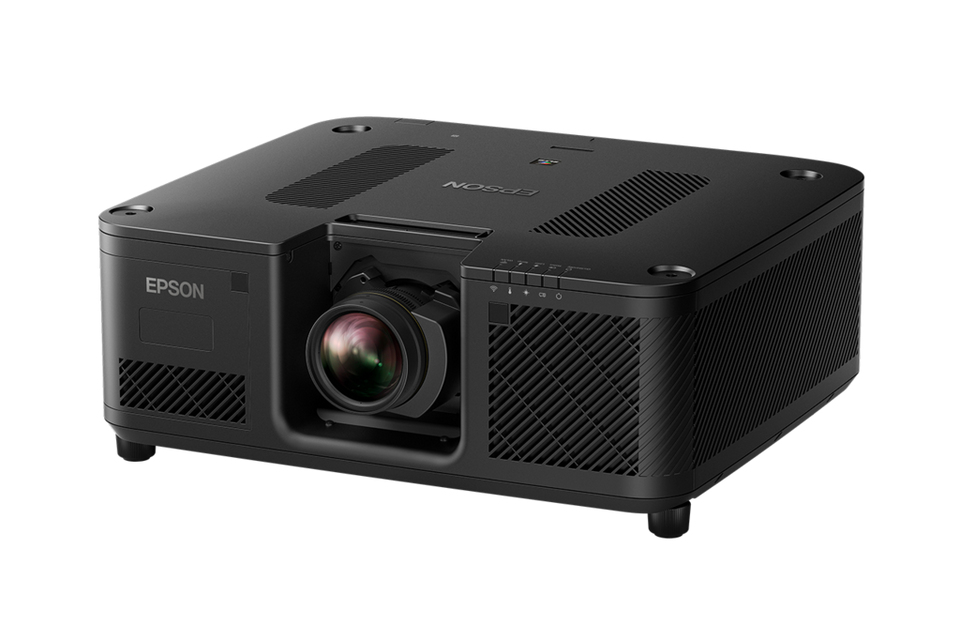

EB-XQ2030B
Model EB-XQ2030BPart no. V11HC01880EAN 8715946746968
76 specifications
- Noise48 dB
- Weight34.4 kg
- ColourBlack
- Projector brightness30000 ANSI lumens
- Light source typeLaser
- FocusMotorized
Overview
- Noise
- 48 dB
- Weight
- 34.4 kg
- Colour
- Black
- Projector brightness
- 30000 ANSI lumens
- Light source type
- Laser
- Focus
- Motorized
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-XQ2030B
- Part number
- V11HC01880
- EAN / UPC
- 8715946746968
- Also known as
- Epson EB-XQ2030B
Specifications
76 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 30000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000:1 |
| Native aspect ratio | 16:9 |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 21000 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| Matrix size | 2.64 cm (1.04") |
| Heat dissipation | 7106 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | Varies by lens |
| Zoom capability | Yes |
| Throw ratio | 0.34 - 11.00:1, Varies by lens |
| Interchangeable lens | Yes |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 48 dB |
| Noise level (economic mode) | 39 dB |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Placement | Ceiling, Floor, Flying frame |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1895 W |
| Power consumption (economy mode) | 1180 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 34.4 kg |
| Width | 620 mm |
| Depth | 530 mm |
| Height | 205 mm |
| Package width | 760 mm |
| Package depth | 840 mm |
| Package height | 340 mm |
| Package weight | 45 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Bundled software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
Technical details
| Specification | Value |
|---|---|
| Other features | 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, CEC compatible, Daisy chain Multi-Projection, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Integrated camera for image calibration, Lens position memory, Lon |
| Power consumption | 1,895 Watt (Normal On-Mode), 1,180 Watt (Eco On-Mode), 2,090 Watt (Normal Peak-mode), 1,546 Watt (Eco Peak-Mode), 1 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), 12G SDI Input, 12G SDI Output, USB content playback, Remote |
| Security features | Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, SNMP, ESC/VP.net, PJLink |
| Box contents | Document Pack, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries |
| Control panel | 1.04 inch with C2 Fine |
