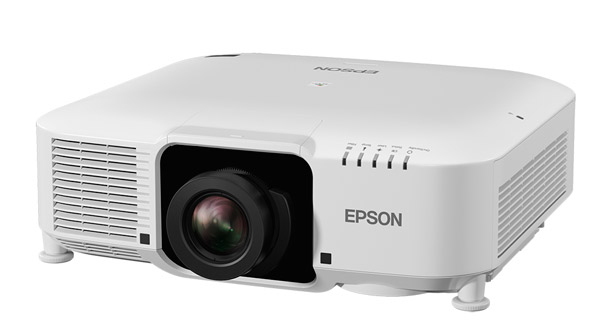

EB-PU1008WNL Projector module 8500 ANSI lumens 3LCD WUXGA (1920x1200) White
Model EB-PU1008WNLPart no. V11HA33953BUEAN 9314020634147
48 specifications
- Noise36 dB
- TypeProjector module
- Weight16.4 kg
- ColourWhite
- Projector brightness8500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Projector module
- Weight
- 16.4 kg
- Colour
- White
- Projector brightness
- 8500 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-PU1008WNL
- Part number
- V11HA33953BU
- EAN / UPC
- 9314020634147
- Also known as
- Epson EB-PU1008WNL Projector module 8500 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
48 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 8500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 25400 mm (50 - 1000") |
| Colour gamut | 8500% |
| Colour light output | 8500 ANSI lumens |
| Keystone correction, horizontal | - 30 - 30° |
| Keystone correction, vertical | - 45 - 45° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 24 - 38.2 mm |
| Aperture range (F-F) | 1.7 - 2.3 |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.44 |
| Horizontal lens shift range | 30 - 30% |
| Vertical lens shift range | 67 - 67% |
| Lens position memory | 10 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 30 dB |
| 4K Ultra HD upscaling | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 452 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 16.4 kg |
| Width | 545 mm |
| Depth | 436 mm |
| Height | 189 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
