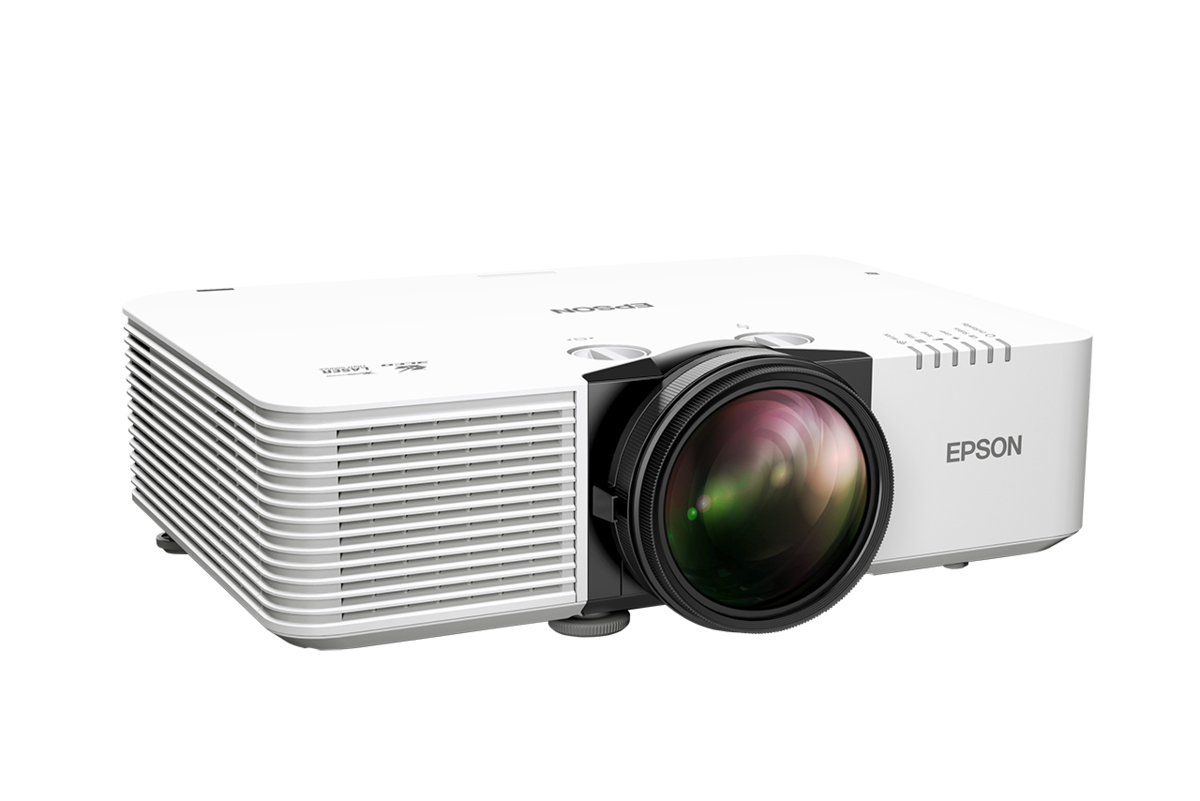

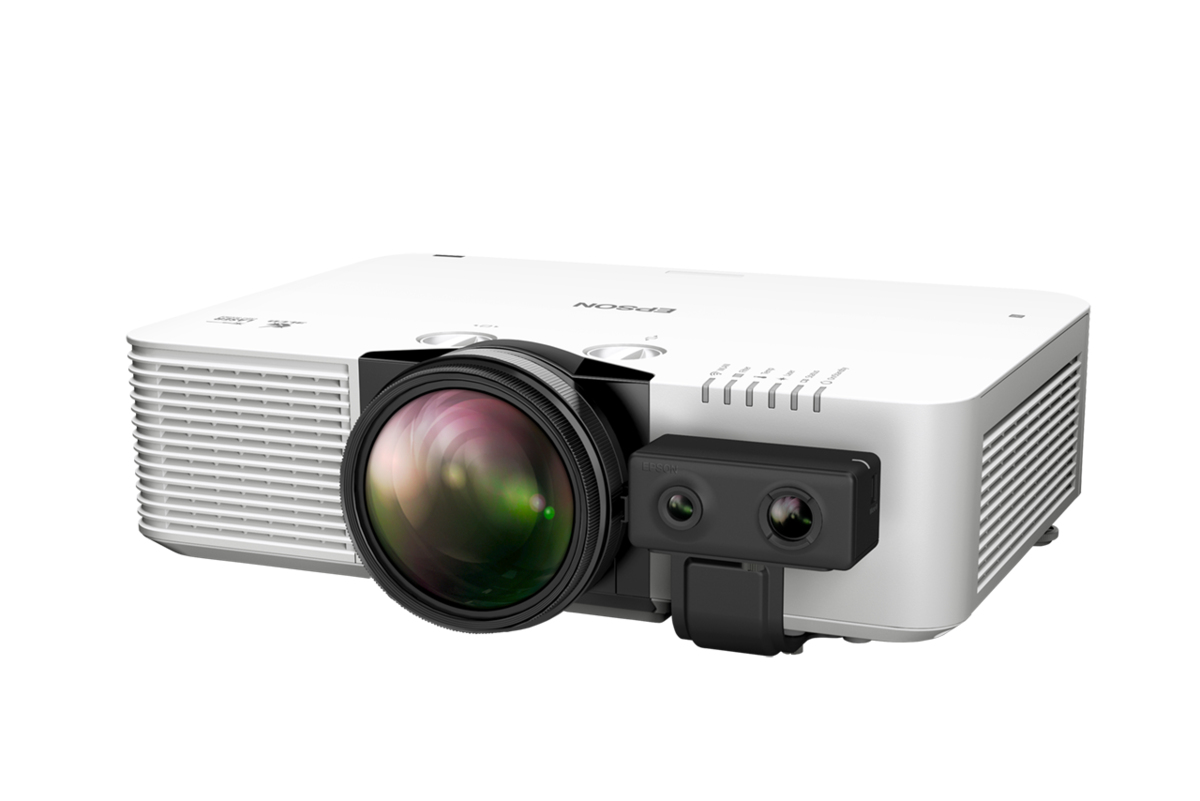

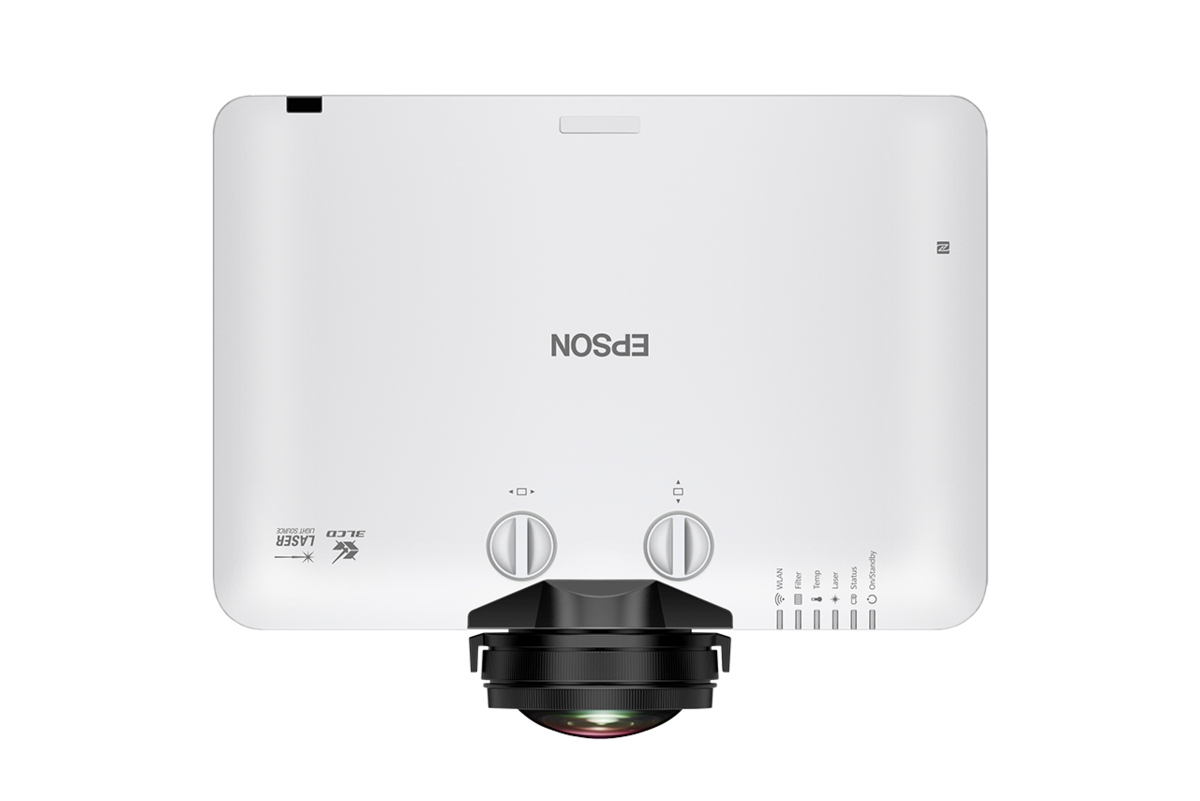

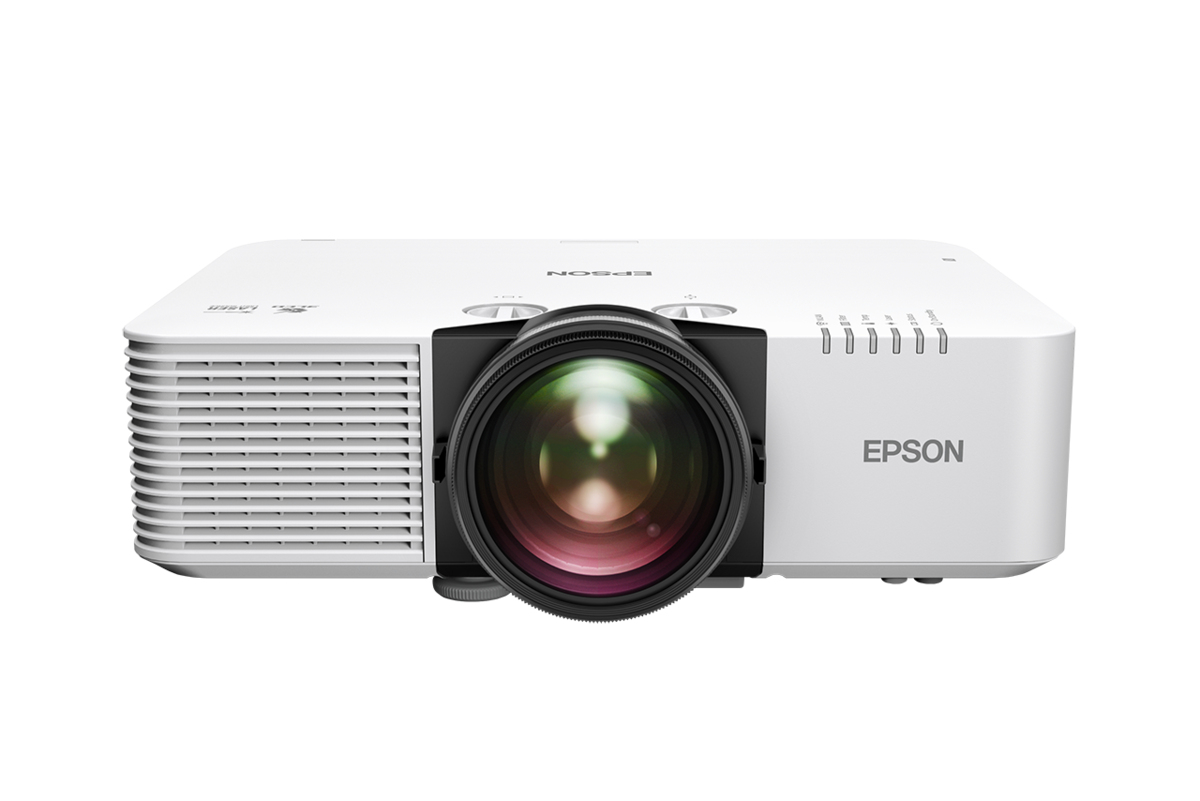

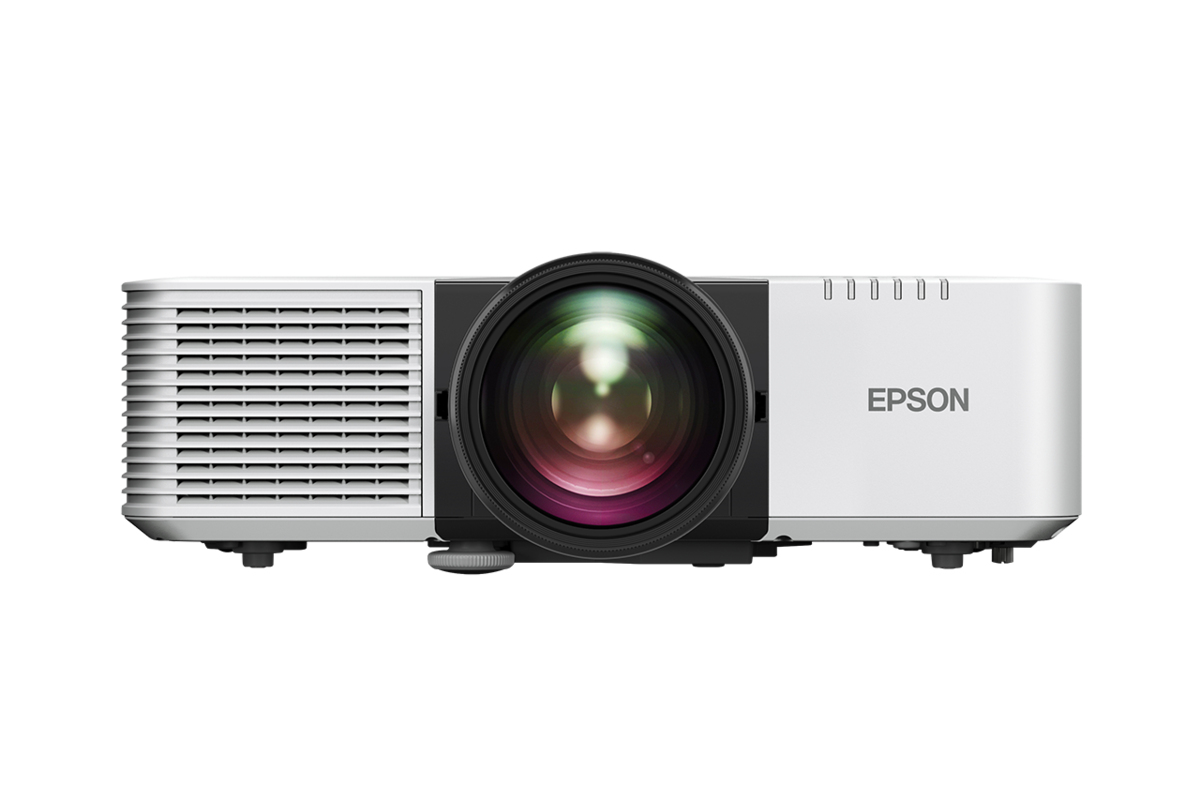

EB-L690E 6500 ANSI lumens 3LCD WUXGA (1920x1200) White
Model EB-L690EPart no. V11HB25080
67 specifications
- Noise32 dB
- Weight8.2 kg
- ColourWhite
- Projector brightness6500 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 32 dB
- Weight
- 8.2 kg
- Colour
- White
- Projector brightness
- 6500 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L690E
- Part number
- V11HB25080
- Also known as
- Epson EB-L690E 6500 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
67 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Projection distance (wide) | 1.4 - 14.8 m |
| Projection distance (tele) | 2.4 - 23.8 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Aperture range (F-F) | 1.5 - 1.7 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.35 - 2.2:1 |
| Horizontal lens shift range | 0 - 20% |
| Vertical lens shift range | 0 - 50% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 3 |
| DVI port | No |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 32 dB |
| Noise level (economic mode) | 25 dB |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Education |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 399 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 295 W |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.2 kg |
| Width | 440 mm |
| Depth | 340 mm |
| Height | 138 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
