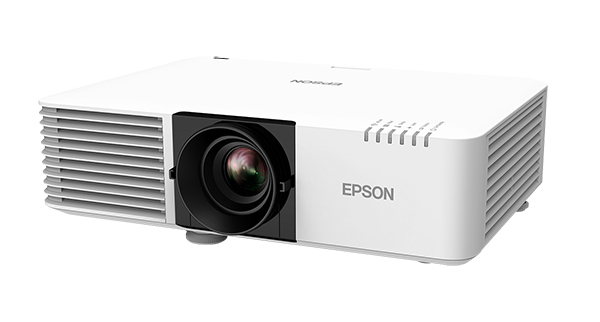

EB-L520U 5200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Model EB-L520UPart no. V11HA30053EAN 9314020634031
44 specifications
- Noise31 dB
- Weight7.7 kg
- ColourBlack, White
- Projector brightness5200 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 31 dB
- Weight
- 7.7 kg
- Colour
- Black, White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L520U
- Part numbers
- V11HA30053, V11HA30040
- EAN / UPC
- 9314020634031, 8715946695563
- Also known as
- Epson EB-L520U 5200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Specifications
44 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Contrast ratio (dynamic) | 2500000:1 |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Lamp power | 185 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Aperture range (F-F) | 1.5 - 1.7 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.35/2.2 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Video colour modes | Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Miracast | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 23 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black, White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 293 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.7 kg |
| Width | 440 mm |
| Depth | 339 mm |
| Height | 136 mm |
