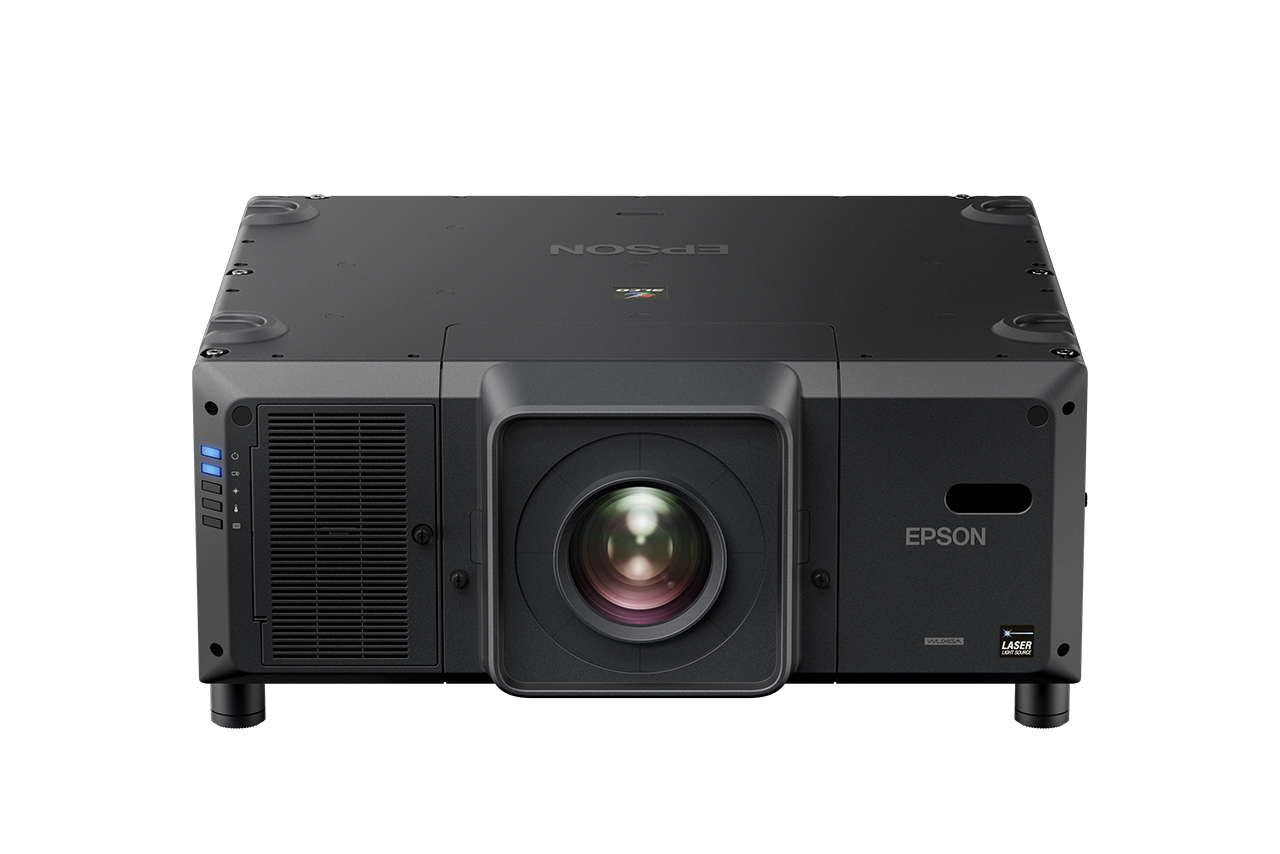

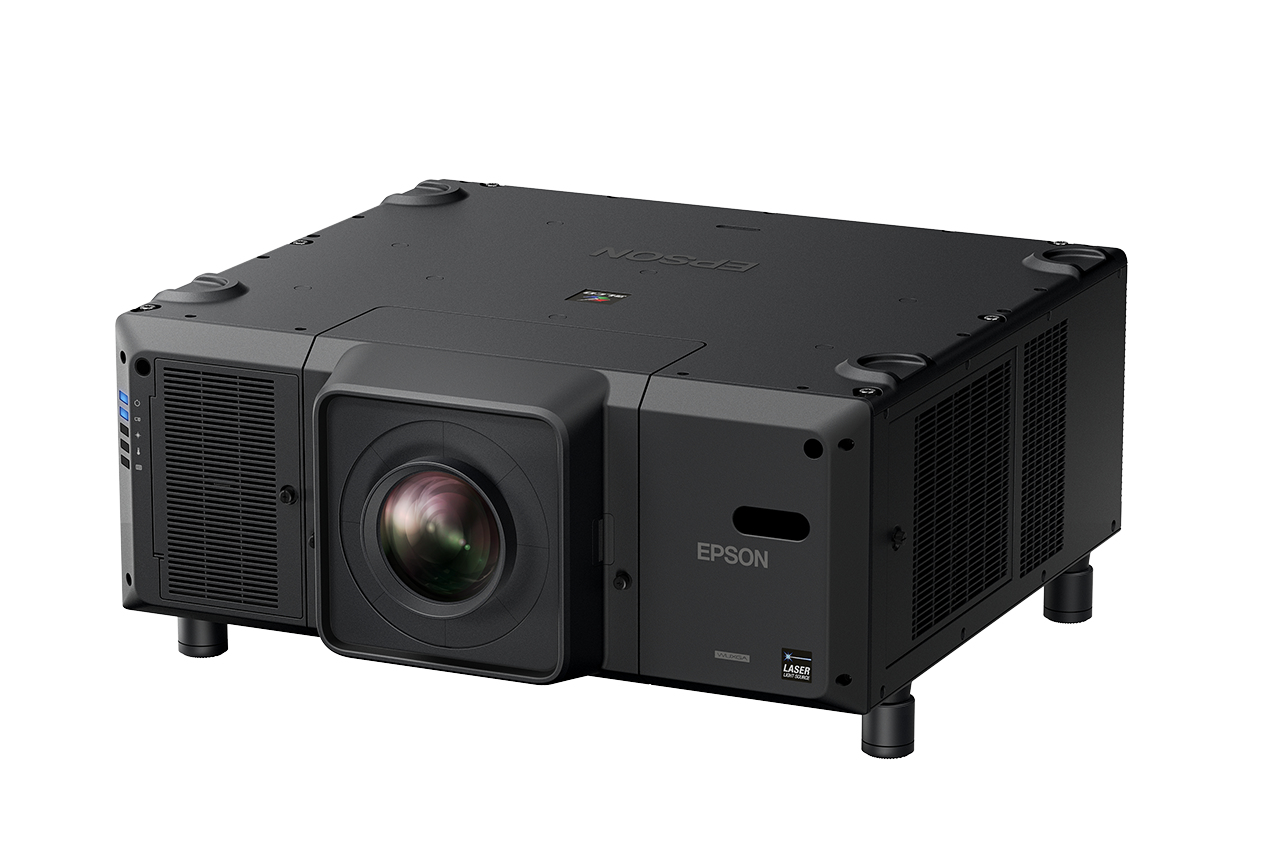

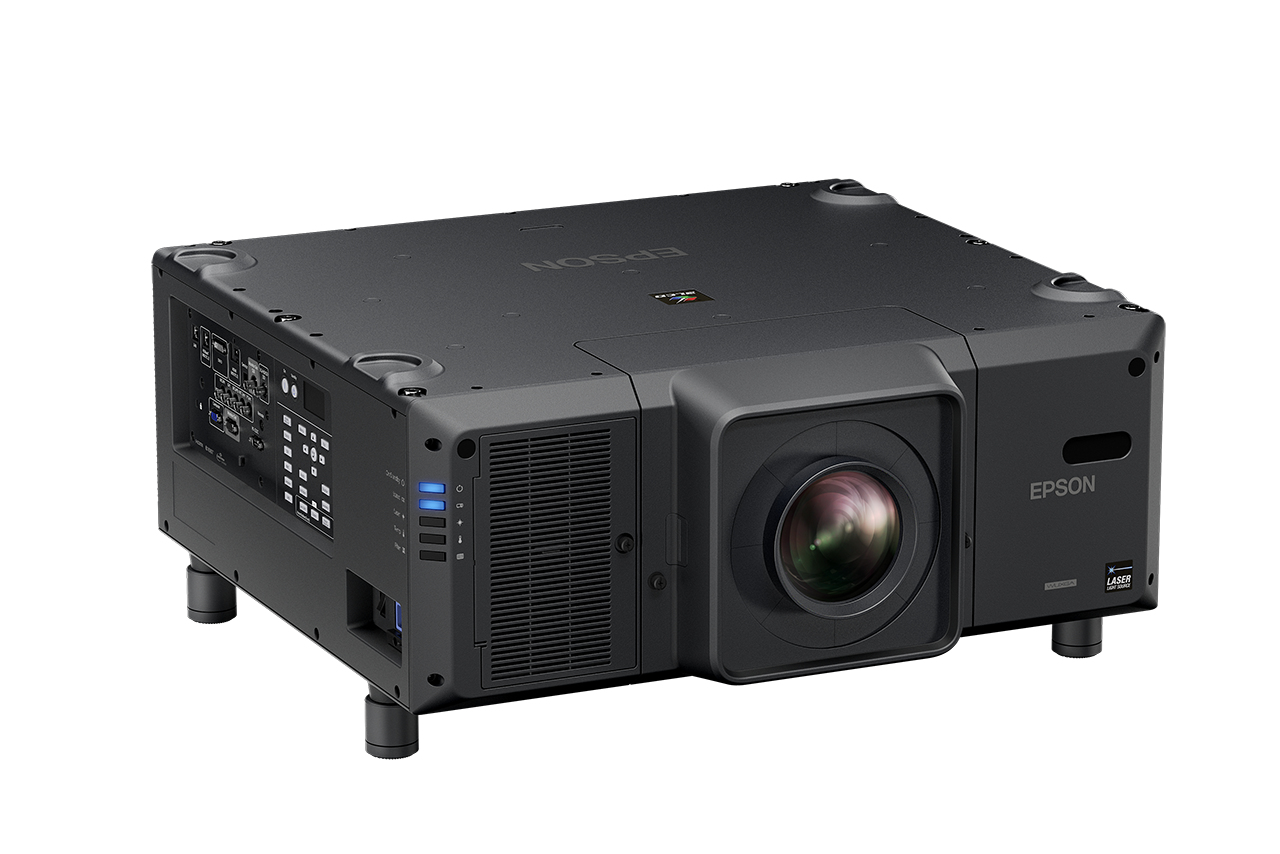

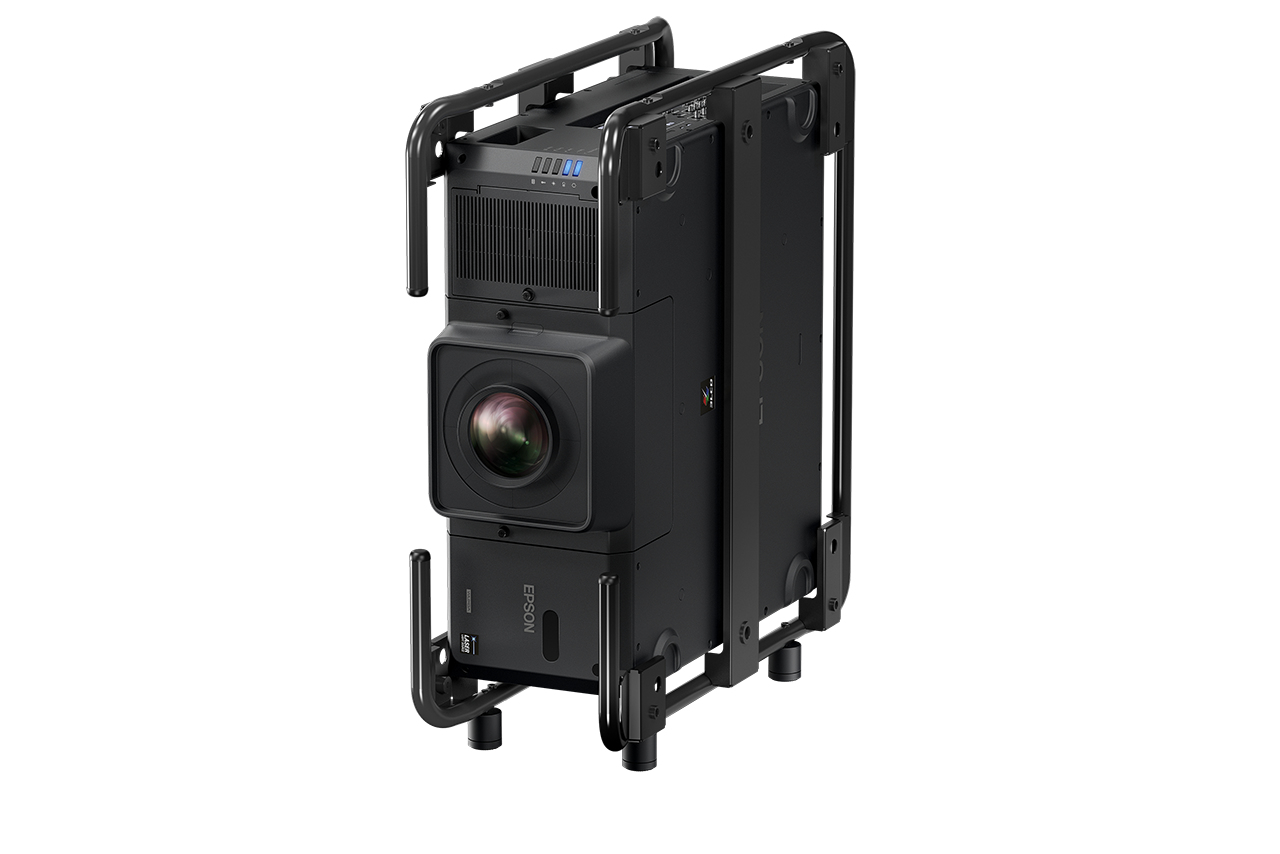

EB-L30000U
Model EB-L30000UPart no. V11H944840EAN 8715946681818
77 specifications
- Noise49 dB
- Weight63.8 kg
- ColourBlack
- Projector brightness30000 ANSI lumens
- Light source typeLaser
- FocusMotorized
Overview
- Noise
- 49 dB
- Weight
- 63.8 kg
- Colour
- Black
- Projector brightness
- 30000 ANSI lumens
- Light source type
- Laser
- Focus
- Motorized
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L30000U
- Part number
- V11H944840
- EAN / UPC
- 8715946681818
- Also known as
- Epson EB-L30000U
Specifications
77 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 30000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3500:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 2540 - 25400 mm (100 - 1000") |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 20000 ANSI lumens |
| Projector brightness (portrait mode) | 30000 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| Matrix size | 3.63 cm (1.43") |
| Heat dissipation | 7905 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Zoom type | Auto |
| Horizontal lens shift range | -30 - -30% |
| Vertical lens shift range | -65 - -65% |
| Lens position memory | 10 |
| Interchangeable lens | Yes |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 49 dB |
| Noise level (economic mode) | 41 dB |
| HDCP | Yes |
| Country of origin | China |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Presentation |
| Product colour | Black |

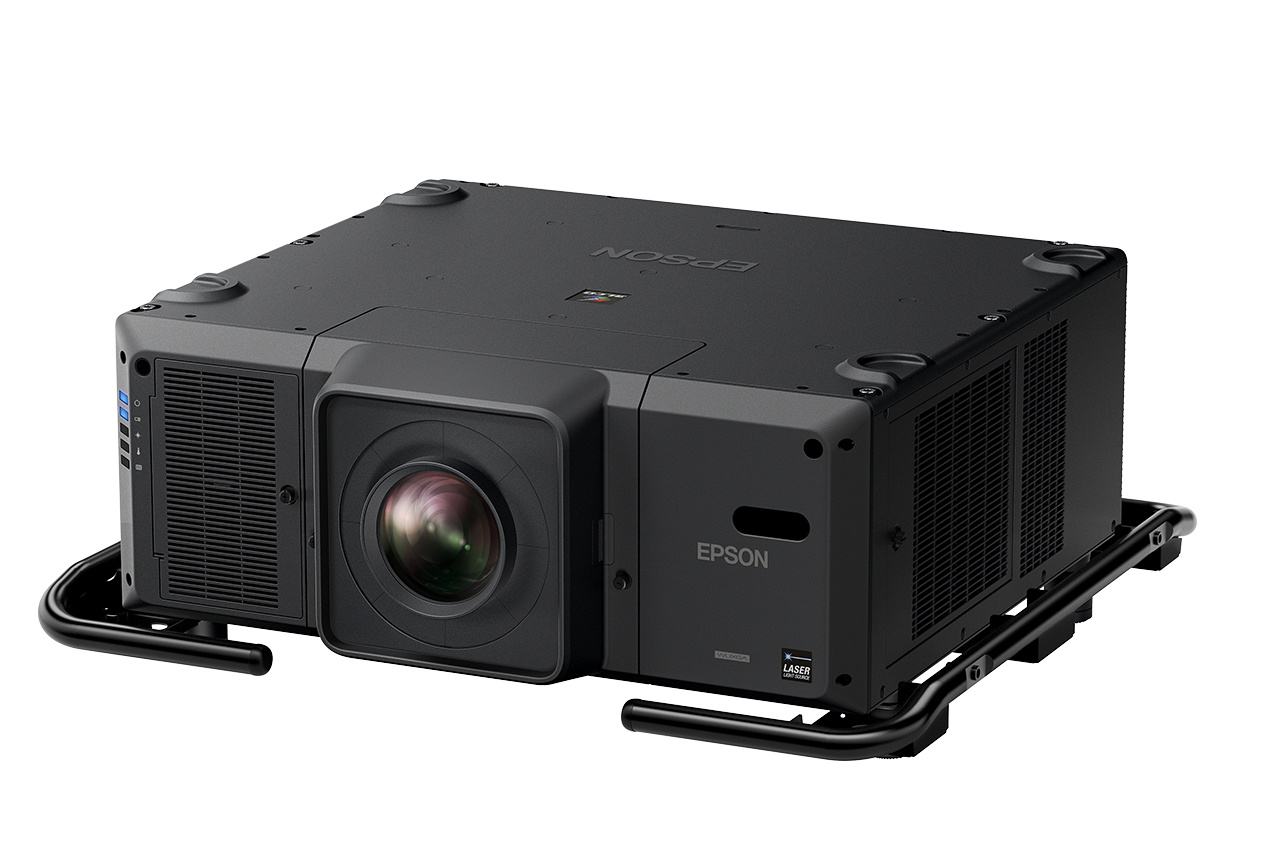

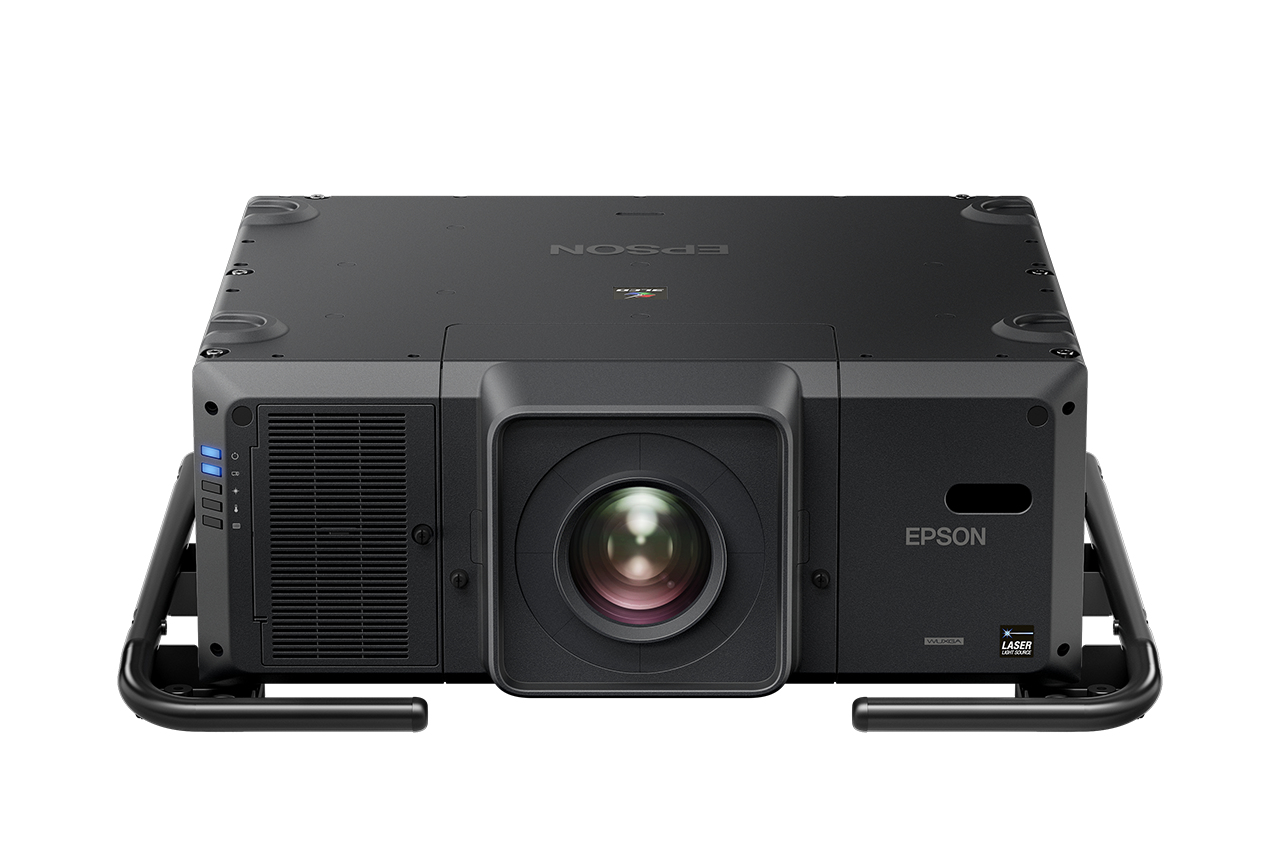

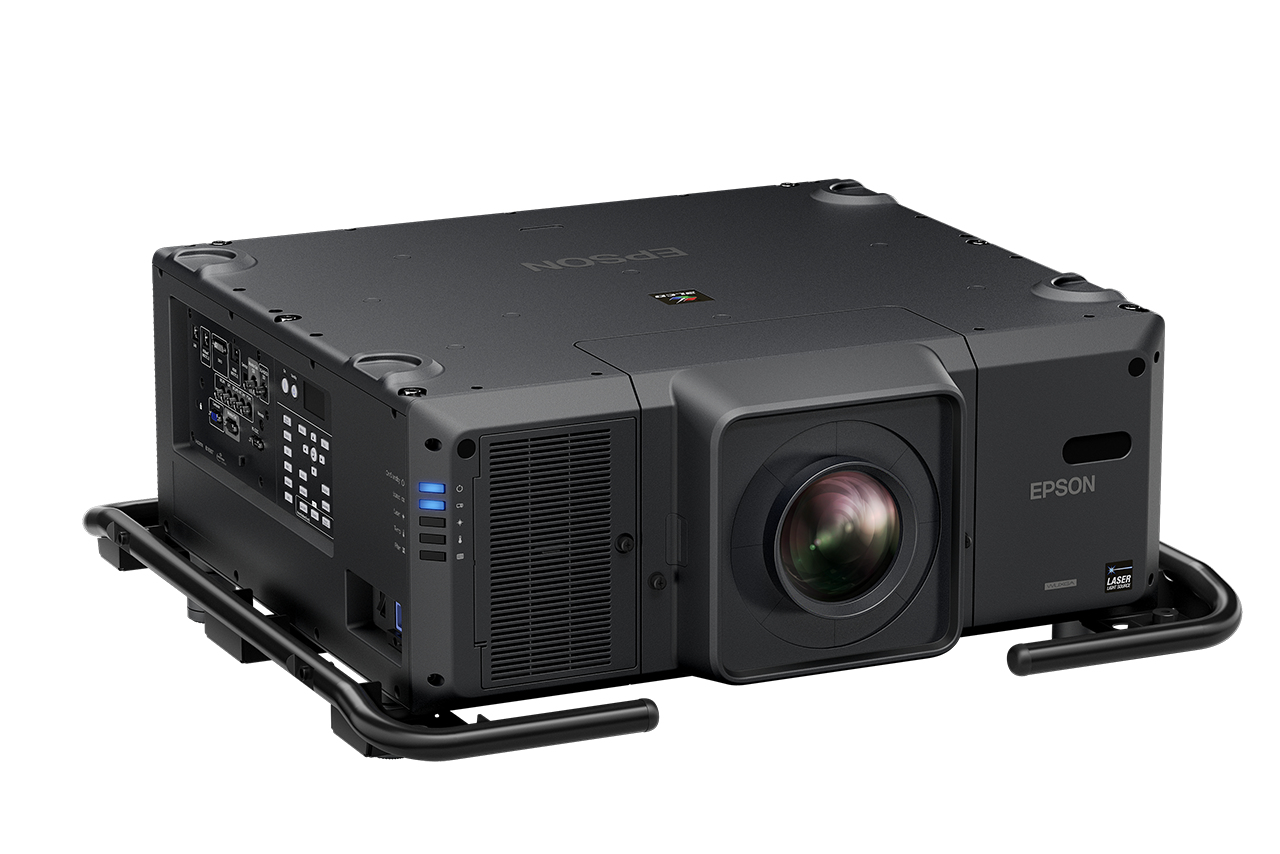

| Placement | Ceiling, Flying frame |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 2325 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 1511 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron XTP |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 63.8 kg |
| Width | 790 mm |
| Depth | 710 mm |
| Height | 299 mm |
| Package width | 1110 mm |
| Package depth | 1180 mm |
| Package height | 665 mm |
| Package weight | 116.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| WLAN adapter included | Yes |
| Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | 4K enhancement, Absolute Black, Auto Calibration, Edge Blending, Frame interpolation, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App |
| Power consumption | 1,748 Watt (Normal On-Mode), 2,325 Watt (Normal Peak-mode), 1,511 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
Other features
| Specification | Value |
|---|---|

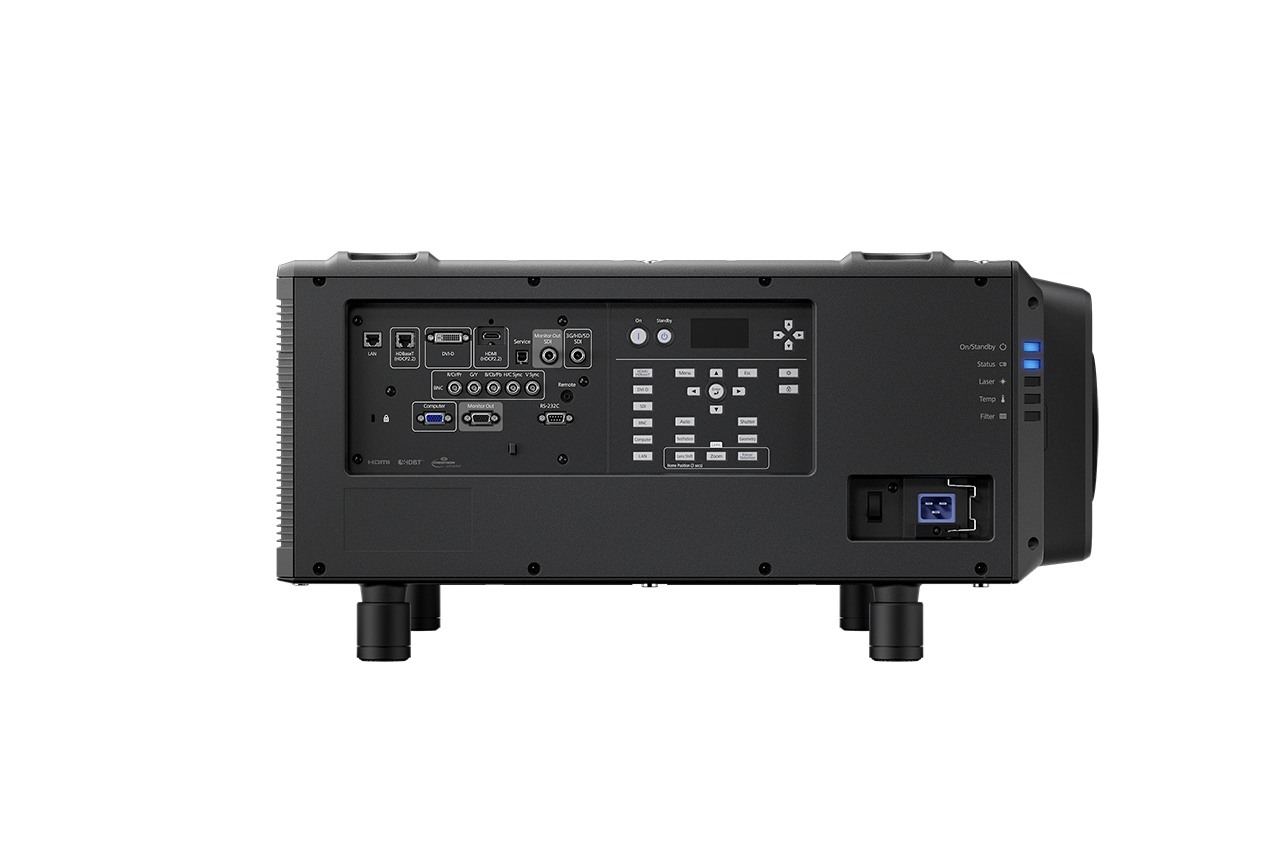

| Interface | USB 1.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in, VGA out, DVI in, BNC in, HDBaseT, HD-SDI, HDMI (HDCP 2.2), Remote |
| Security features | Security bar, Control panel lock, Password lock, Wireless LAN security, Password protection |
| Option type | Wireless LAN unit |
| Box contents | HDMI Cable Clamp, Power cable, Remote control incl. batteries |
| Control panel | 1.43 inch with C2 Fine |
