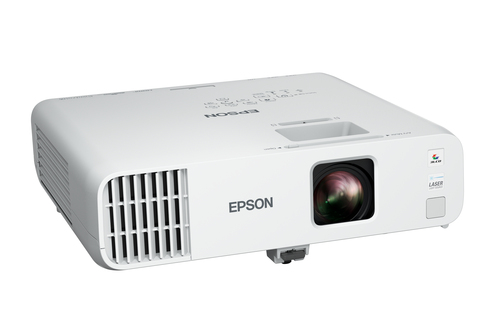

EB-L270F
Model EB-L270FPart no. V11HC68080EAN 8715946749914
79 specifications
- Noise38 dB
- Weight4.15 kg
- ColourWhite
- Projector brightness5200 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 38 dB
- Weight
- 4.15 kg
- Colour
- White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L270F
- Part number
- V11HC68080
- EAN / UPC
- 8715946749914
- Also known as
- Epson EB-L270F
Specifications
79 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 787.4 - 7874 mm (31 - 310") |
| Projection distance (wide) | 0.9 - 9.1 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3600 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.57 cm (0.62") |
| Heat dissipation | 945.2 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.1 mm |
| Aperture range (F-F) | 1.51 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.32 - 2.12:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Game, Presentation |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Country of origin | Philippines |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Education |
| Product colour | White |
| Placement | Ceiling, Desktop, Floor, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 222 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.15 kg |
| Width | 325 mm |
| Depth | 299 mm |
| Height | 90 mm |
Packaging content
| Specification | Value |
|---|---|

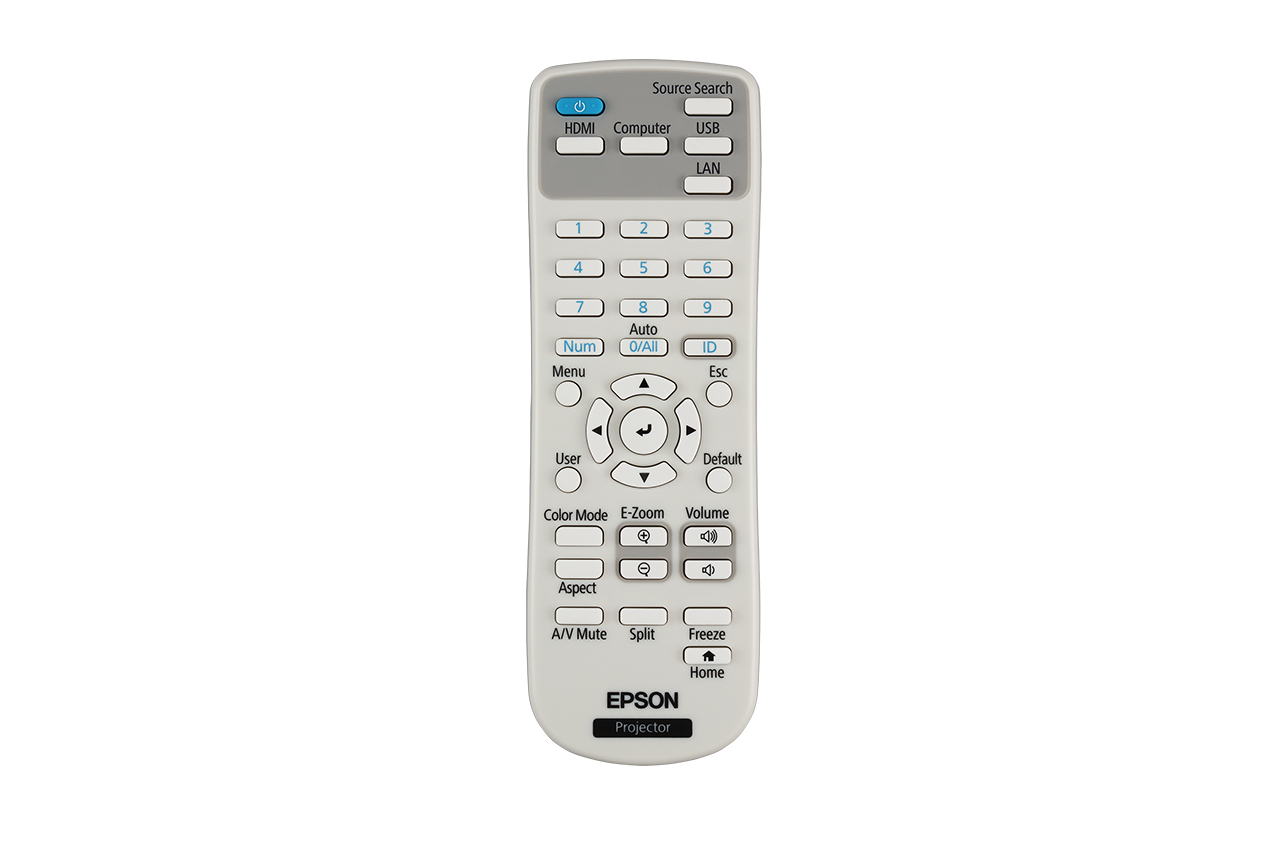

| Remote control included | Yes |
| Cables included | AC, HDMI |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | AV Mute Slide, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Qu |
| Power consumption | 222 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 209 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct (optional), VGA in (2x), VGA out, Composite in, Miracast (optional), Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac (optional) |
| Security features | Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Suspension adapter, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents | HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card |
| Control panel | 0.62 inch with C2 Fine |
