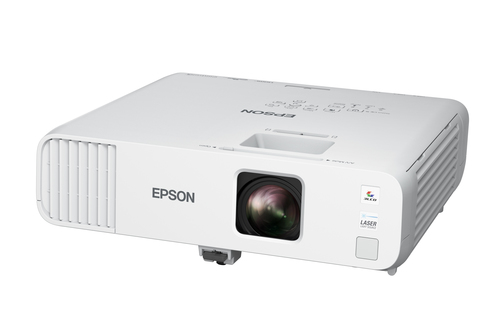

Home Cinema EB-L200W
Model EB-L200WPart no. V11H991040EAN 8715946686097
94 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight4.1 kg
- ColourWhite
- Projector brightness4200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 4.1 kg
- Colour
- White
- Projector brightness
- 4200 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L200W
- Part number
- V11H991040
- EAN / UPC
- 8715946686097
- Also known as
- Epson Home Cinema EB-L200W
Specifications
94 specifications in 19 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 736.6 - 7162.8 mm (29 - 282") |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2940 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Colour light output | 4200 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.5 cm (0.59") |
| White light output | 4200 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.51 - 1.99 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.38 - 2.24:1 |
| Offset | 10% |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation |
| Video colour modes | Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Country of origin | China |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 254 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 193 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Control4, Extron |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.1 kg |
| Width | 325 mm |
| Depth | 299 mm |
| Height | 90 mm |
| Package width | 420 mm |
| Package depth | 530 mm |
| Package height | 232 mm |
| Package weight | 6.17 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Bundled software | EasyMP Multi PC Projection, Epson Projector Management |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | AV Mute Slide, Auto Power On, Built-in speaker, Document Camera Compatible, Home Screen, Long light source life, Mute key, OSD copy function, PC Free, Quick Corner, Screen Mirroring, Split-Screen-Function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code |
| Sustainability certificates | TCO |
| Power consumption | 198 Watt (Normal On-Mode), 254 Watt (Normal Peak-mode), 193 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| USB display function | 2 in 1: Image/ Sound |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 36 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac |
| Security features | Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock |
| Supported network protocols | PJLink |

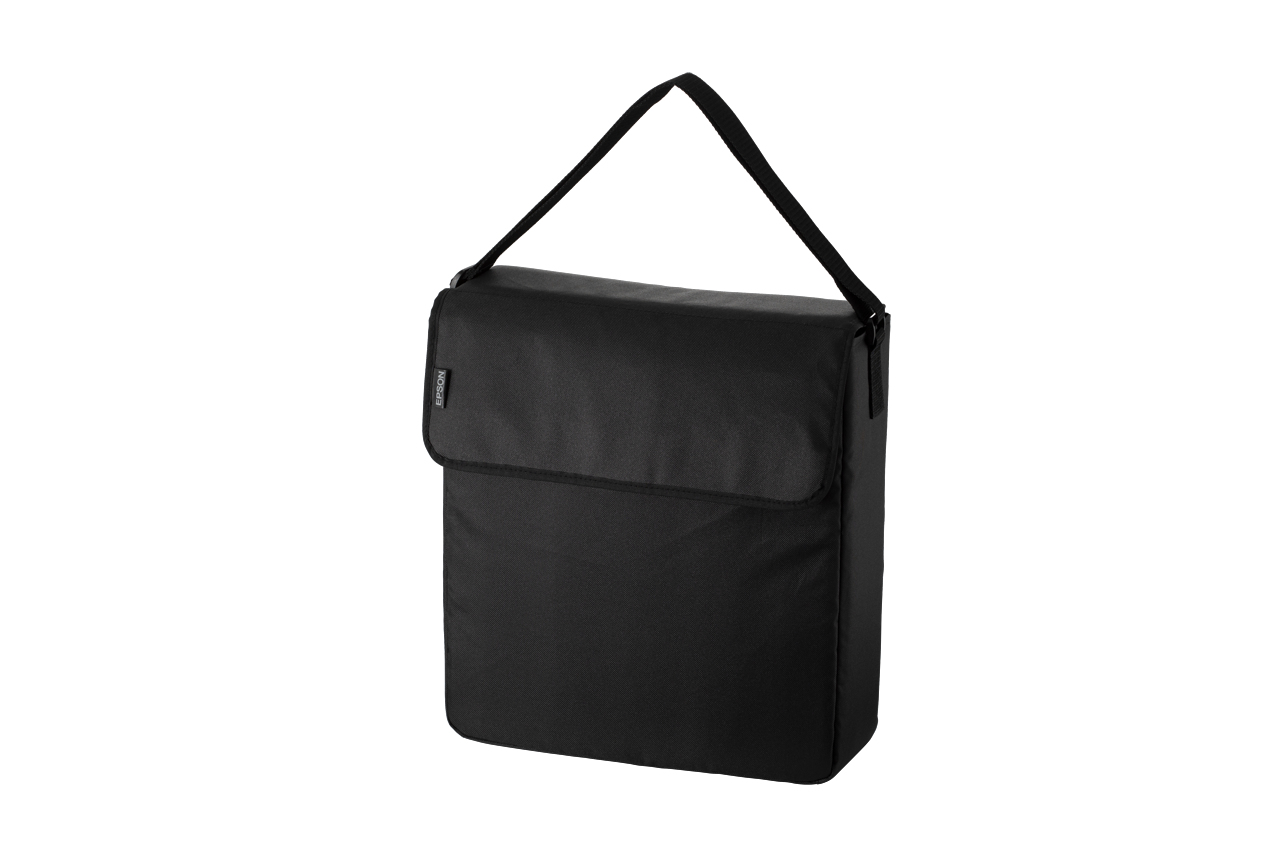

| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Soft carry case, Suspension adapter, WP System - ELPWP10, Wireless transmitter - ELPWT01 |
| Box contents | HDMI Cable 1.8m, Main unit, Power cable, Remote control incl. batteries |
| Control panel | 0.59 inch with C2 Fine |
