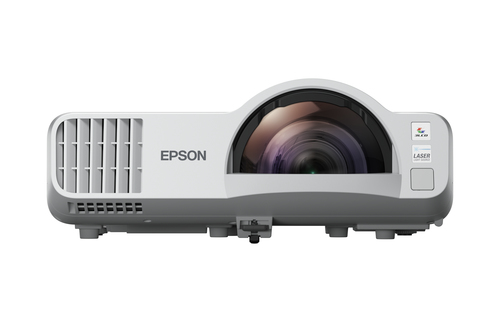

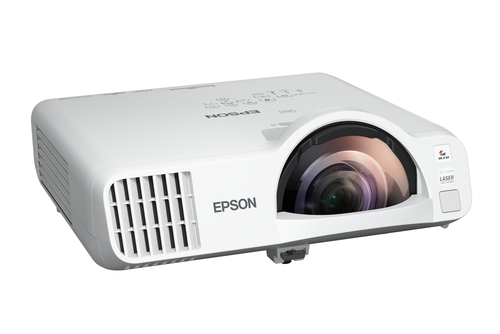

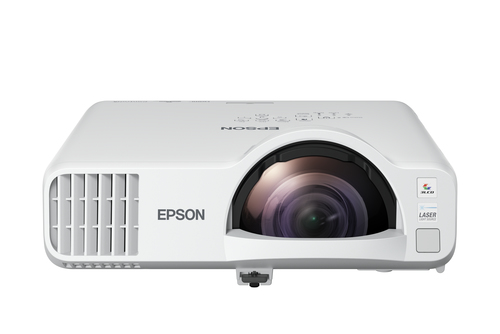

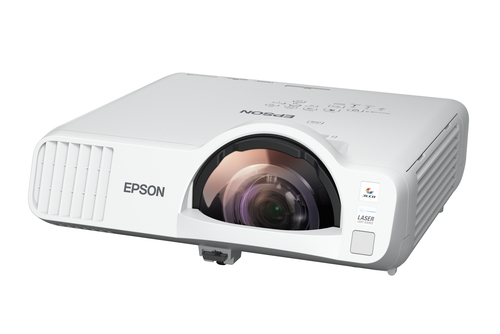

EB-L200SW
Model EB-L200SWPart no. V11H993040EAN 8715946686400
92 specifications
- Noise36 dB
- TypeShort throw projector
- Weight4.5 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Short throw projector
- Weight
- 4.5 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L200SW
- Part numbers
- V11H993040, V11H993053
- EAN / UPC
- 8715946686400, 9314020632693
- Also known as
- Epson EB-L200SW
Specifications
92 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1346.2 - 3048 mm (53 - 120") |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2660 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Colour light output | 3800 ANSI lumens |
| Keystone correction, horizontal | ±15° |
| Keystone correction, vertical | ±15° |
| Matrix size | 1.5 cm (0.59") |
| White light output | 3800 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 6.4 mm |
| Fixed focal length | 6.4 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.48 - 0.65:1 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 36 dB |
| Noise level (economic mode) | 26 dB |
| Country of origin | China |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 254 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 193 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
| Width | 325 mm |
| Depth | 337 mm |
| Height | 90 mm |
| Package width | 415 mm |
| Package depth | 535 mm |
| Package height | 235 mm |
| Package weight | 6.94 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Quick start guide | Yes |
| WLAN adapter included | Yes |
| Bundled software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Instant on/off, Mail notification function, Micropho |
| Sustainability certificates | TCO |
| Power consumption | 198 Watt (Normal On-Mode), 254 Watt (Normal Peak-mode), 193 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 32 pc(s) |
Other features
| Specification | Value |
|---|---|

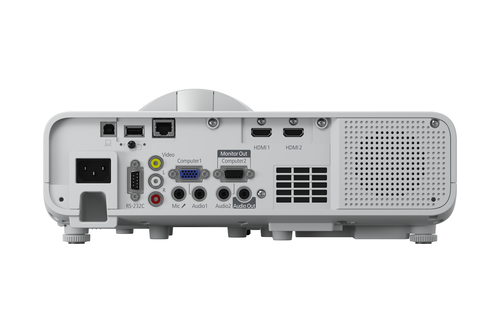

| Interface | USB 2.0-A, USB 2.0, RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (2x), Miracast, Jack plug out, Jack plug in (2x), Microphone input |
| Security features | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |

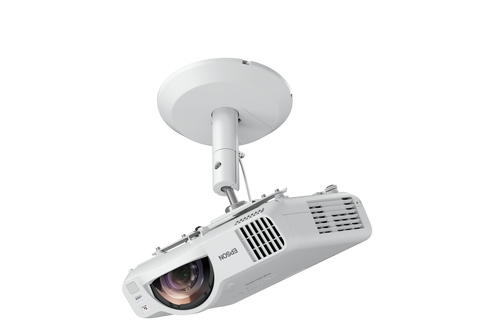

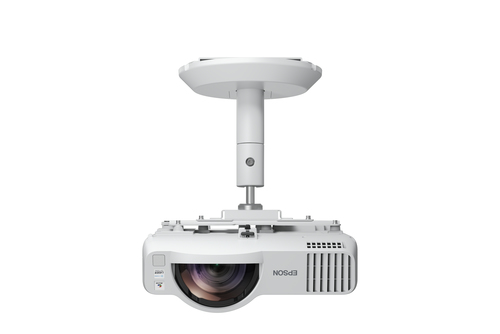

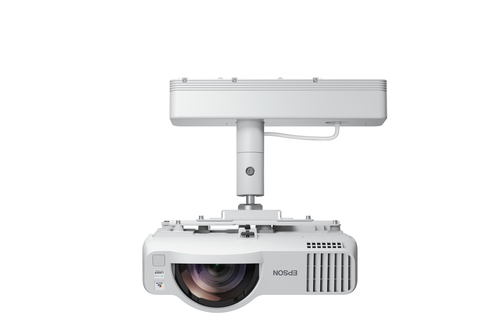

| Option type | Connection and control box, Document camera, External Speaker, Wall mount, Wireless LAN unit |
| Box contents | HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries |
| Control panel | 0.59 inch with C2 Fine |
