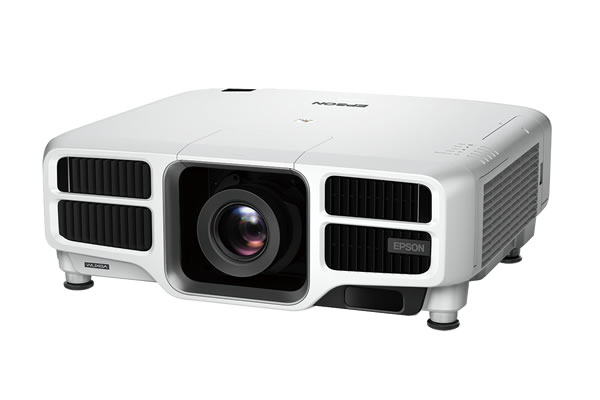

EB-L1490UNL Large venue projector 9000 ANSI lumens 3LCD WUXGA (1920x1200) White
Model EB-L1490UNLPart no. V11HA16953BUEAN 9314020631924
57 specifications
- Noise37 dB
- TypeLarge venue projector
- Weight23.7 kg
- ColourWhite
- Projector brightness9000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Large venue projector
- Weight
- 23.7 kg
- Colour
- White
- Projector brightness
- 9000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L1490UNL
- Part number
- V11HA16953BU
- EAN / UPC
- 9314020631924
- Also known as
- Epson EB-L1490UNL Large venue projector 9000 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
57 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 9000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1524 - 25400 mm (60 - 1000") |
| Projection distance | 3.37 - 5.49 m |
| Colour light output | 9000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -45 - 45° |
| White light output | 9000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Focal length range | 36 - 57.35 mm |
| Throw ratio | 1.57 - 2.56 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | Yes |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| BNC input ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 30 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 626 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 23.7 kg |
| Width | 586 mm |
| Depth | 492 mm |
| Height | 211 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| Cables included | AC, VGA |
| Carrying case | Yes |
| Manual | Yes |
