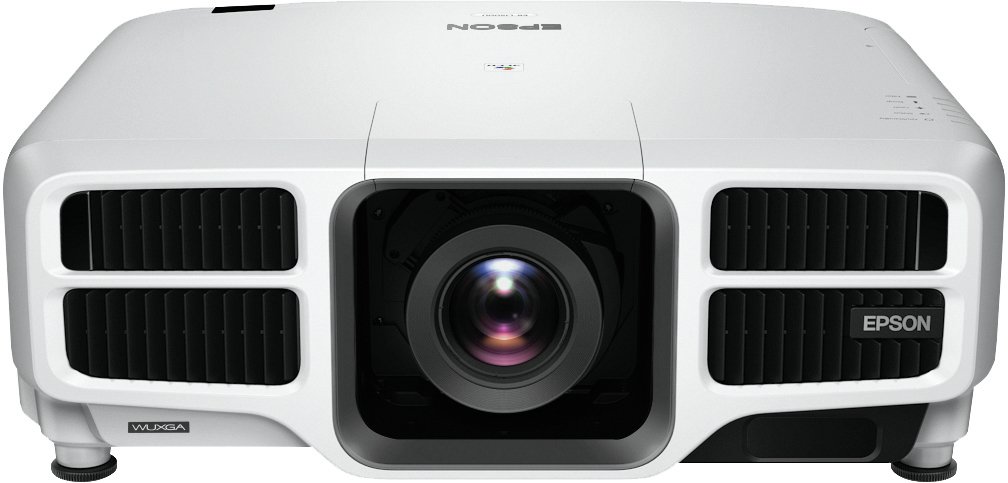

EB-L1490U
Model EB-L1490UPart no. V11HA16040EAN 8715946671482
102 specifications
- Noise37 dB
- TypeLarge venue projector
- Weight23.7 kg
- ColourWhite
- Projector brightness9000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Large venue projector
- Weight
- 23.7 kg
- Colour
- White
- Projector brightness
- 9000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L1490U
- Part number
- V11HA16040
- EAN / UPC
- 8715946671482
- Also known as
- Epson EB-L1490U
Specifications
102 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 9000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1524 - 25400 mm (60 - 1000") |
| Projection distance | 1.99 - 27.77 m |
| Projection distance (wide) | 2 - 17.2 m |
| Projection distance (tele) | 3.3 - 27.8 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 6300 ANSI lumens |
| Projector brightness (portrait mode) | 9000 ANSI lumens |
| Colour light output | 9000 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| White light output | 9000 ANSI lumens |
| Heat dissipation | 2128 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 36 - 57.35 mm |
| Aperture range (F-F) | 1.8 - 2.5 |
| Zoom type | Auto |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 - 2.56:1 |
| Horizontal lens shift range | -18 - -18% |
| Vertical lens shift range | -60 - -60% |
| Lens position memory | 10 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | Yes |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| BNC input ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 30 dB |
| Country of origin | China |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Flying frame |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 626 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 512 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 23.7 kg |
| Width | 586 mm |
| Depth | 492 mm |
| Height | 211 mm |
| Package width | 750 mm |
| Package depth | 780 mm |
| Package height | 325 mm |
| Package weight | 33.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| Cables included | AC, VGA |
| Carrying case | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| WLAN adapter included | Yes |
| Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | 4K enhancement, Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory |
| Power consumption | 554 Watt (Normal On-Mode), 626 Watt (Normal Peak-mode), 512 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 4 pc(s) |
| Products per pallet (UK) | 4 pc(s) |
| Products per pallet layer | 1 pc(s) |
| Products per pallet layer (UK) | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | Jack plug in (3x), Jack plug out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), HD-SDI, Wireless LAN b/g/g 25GHz (optional) |
| Security features | Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Option type | HDBaseT Transmitter, Quick wireless USB key, Wireless LAN unit |
| Box contents | CD Manual, Cable cover, Computer cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries |
| Control panel | 1.03 inch with C2 Fine |
