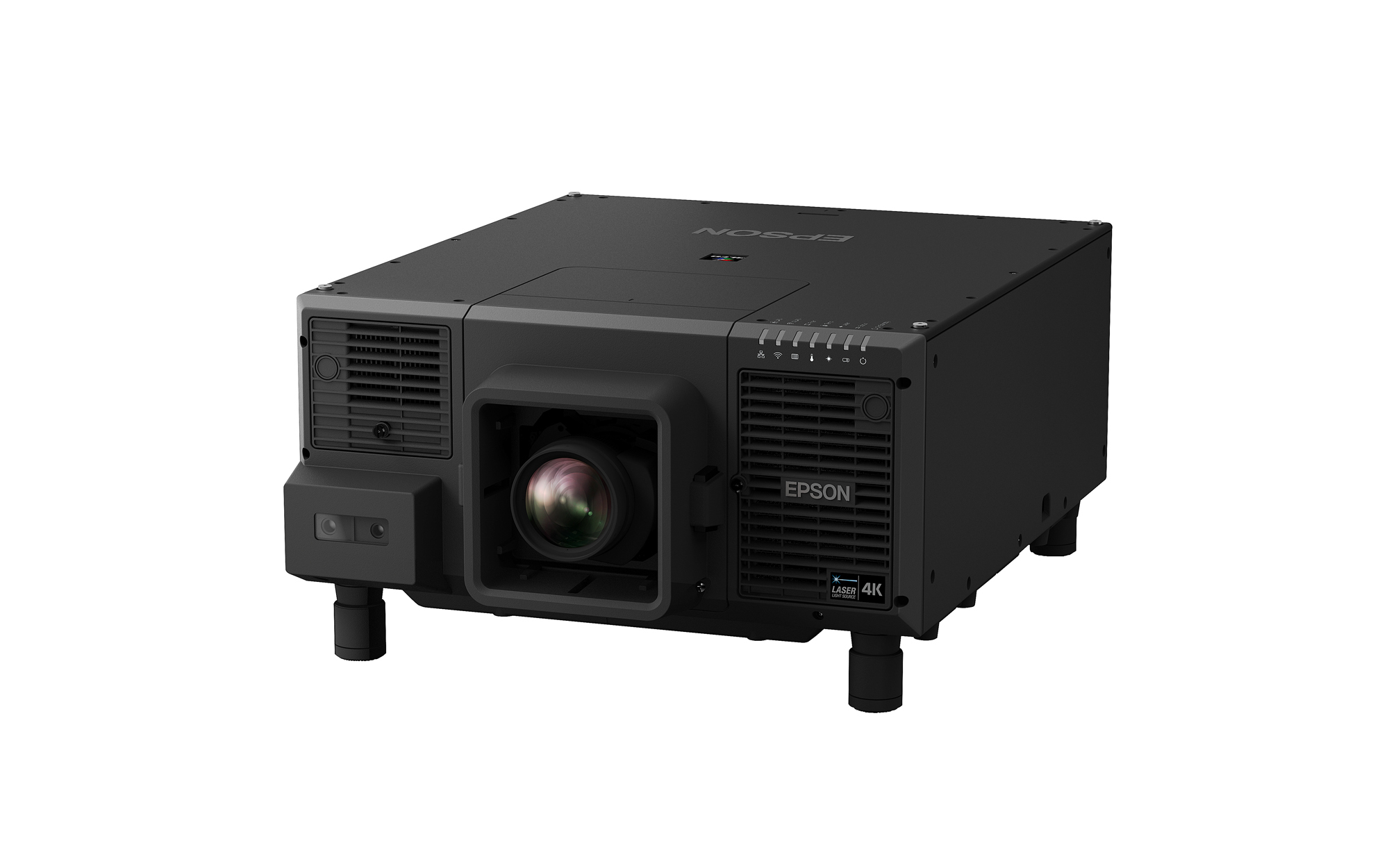

EB-L12000Q
Model EB-L12000QPart no. V11H832840EAN 8715946663203
87 specifications
- Noise45 dB
- TypeCeiling-mounted projector
- Weight51.4 kg
- ColourBlack
- Projector brightness12000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 45 dB
- Type
- Ceiling-mounted projector
- Weight
- 51.4 kg
- Colour
- Black
- Projector brightness
- 12000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L12000Q
- Part number
- V11H832840
- EAN / UPC
- 8715946663203
- Also known as
- Epson EB-L12000Q
Specifications
87 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 12000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 1200:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 25400 mm (60 - 1000") |
| Projection distance | 1.98 - 55.28 m |
| Projection distance (wide) | 2 - 34.2 m |
| Projection distance (tele) | 3.2 - 55.3 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 8400 ANSI lumens |
| Projector brightness (portrait mode) | 12000 ANSI lumens |
| Colour light output | 12000 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| Matrix size | 2.62 cm (1.03") |
| White light output | 12000 ANSI lumens |
| Heat dissipation | 5919 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 36 - 57.3 mm |
| Aperture range (F-F) | 1.8 - 2.3 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.61:1 |
| Throw ratio | 1.52 - 2.47:1 |
| Horizontal lens shift range | -16 - -16% |
| Vertical lens shift range | -58 - -58% |
| Lens position memory | 10 |
| Interchangeable lens | Yes |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232C |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 45 dB |
| Noise level (economic mode) | 38 dB |
| Country of origin | China |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling-mounted projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling, Flying frame |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1741 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 1030 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 51.4 kg |
| Width | 620 mm |
| Depth | 790 mm |
| Height | 358 mm |
| Package width | 790 mm |
| Package depth | 980 mm |
| Package height | 630 mm |
| Package weight | 64.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| WLAN adapter included | Yes |
| Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory |
| Power consumption | 1,546 Watt (Normal On-Mode), 1,741 Watt (Normal Peak-mode), 1,030 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | HDBaseT, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), Wireless LAN b/g/g 25GHz (optional), HDMI (HDCP 2.2), Display Port (optional), 12G SDI Input, 12G SDI Output, 3G-SDI Input (4x), DC Power Output (900mA), 3G-SDI Output (4x), Etherc |
| Security features | Kensington lock, Security bar, Wireless LAN security, Password protection |
| Option type | HDBaseT Transmitter, Wireless LAN unit |
| Box contents | CD Manual, Cable cover, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries |
| Control panel | 1.03 inch with C2 Fine |
