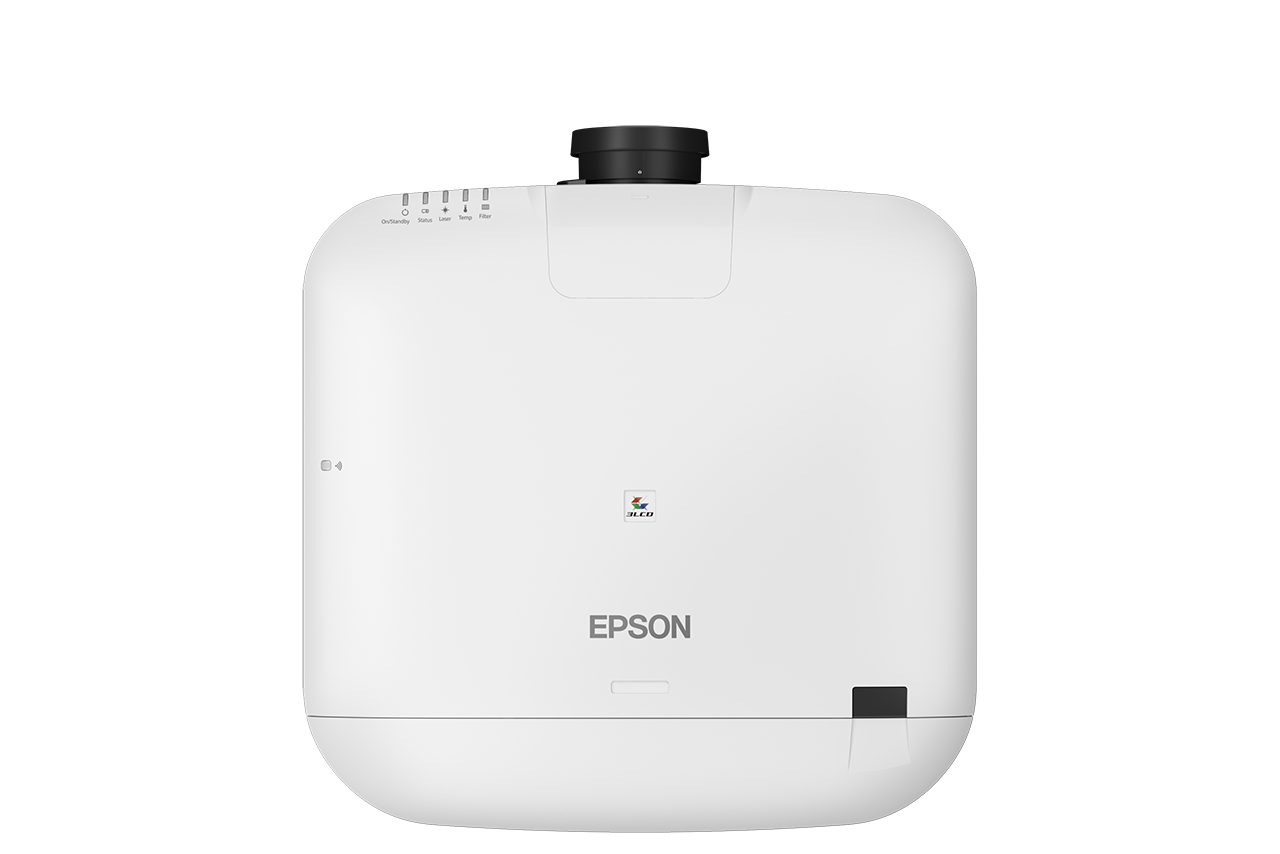

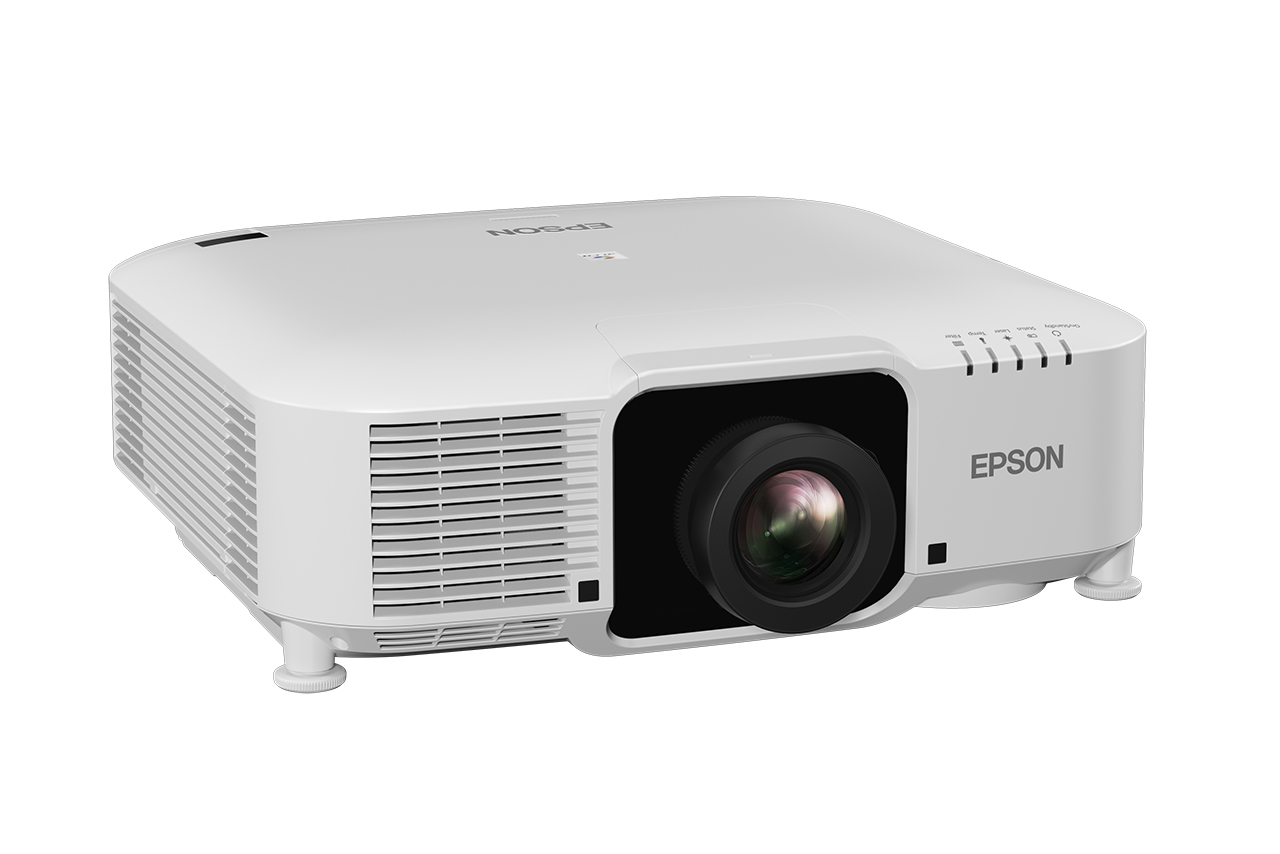

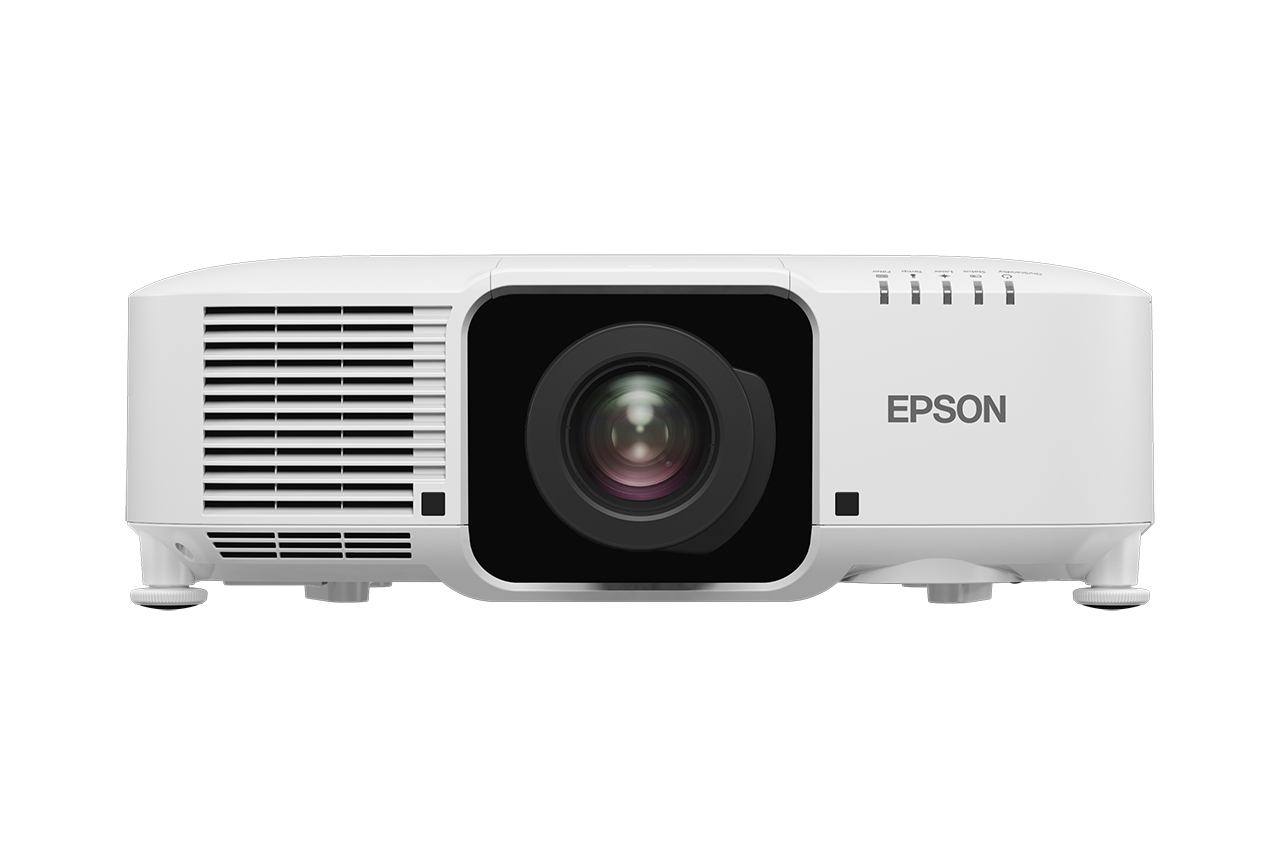

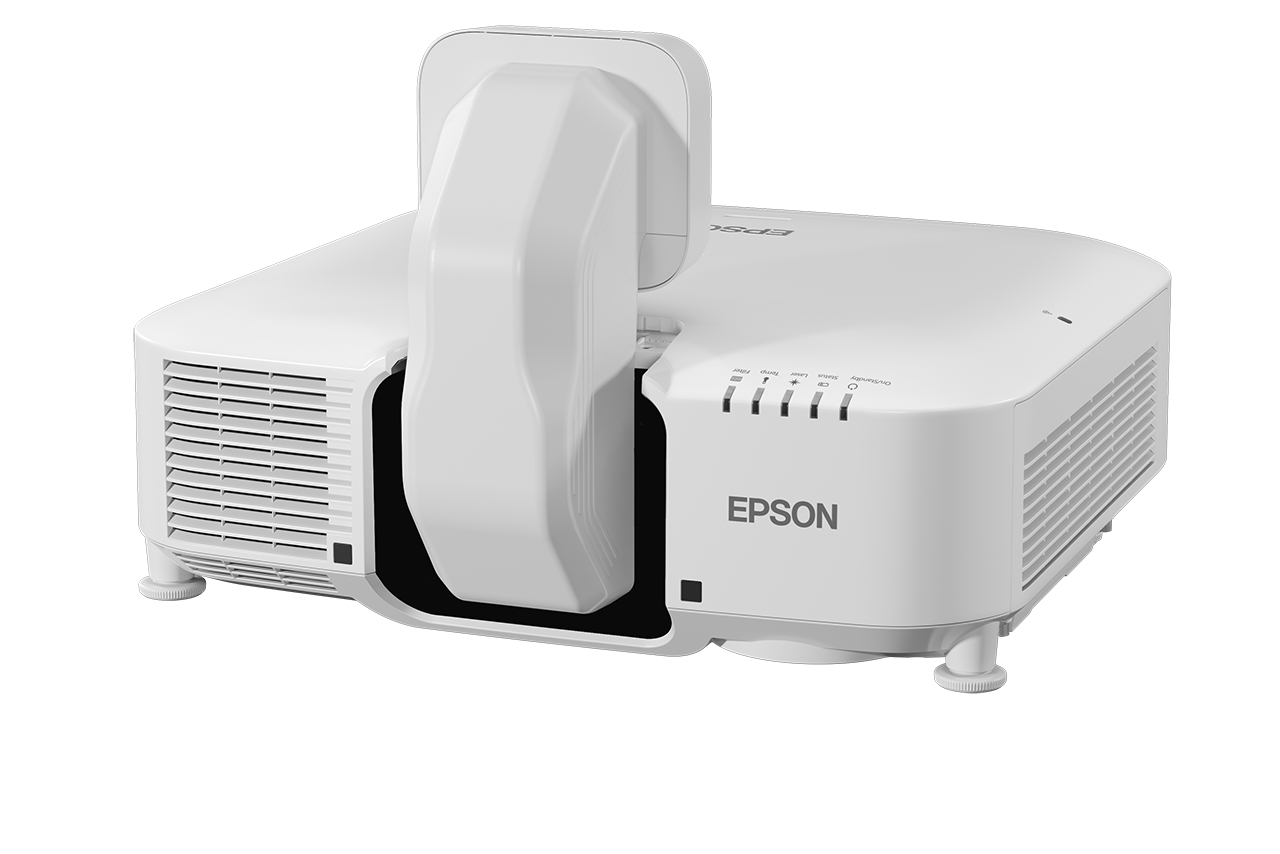

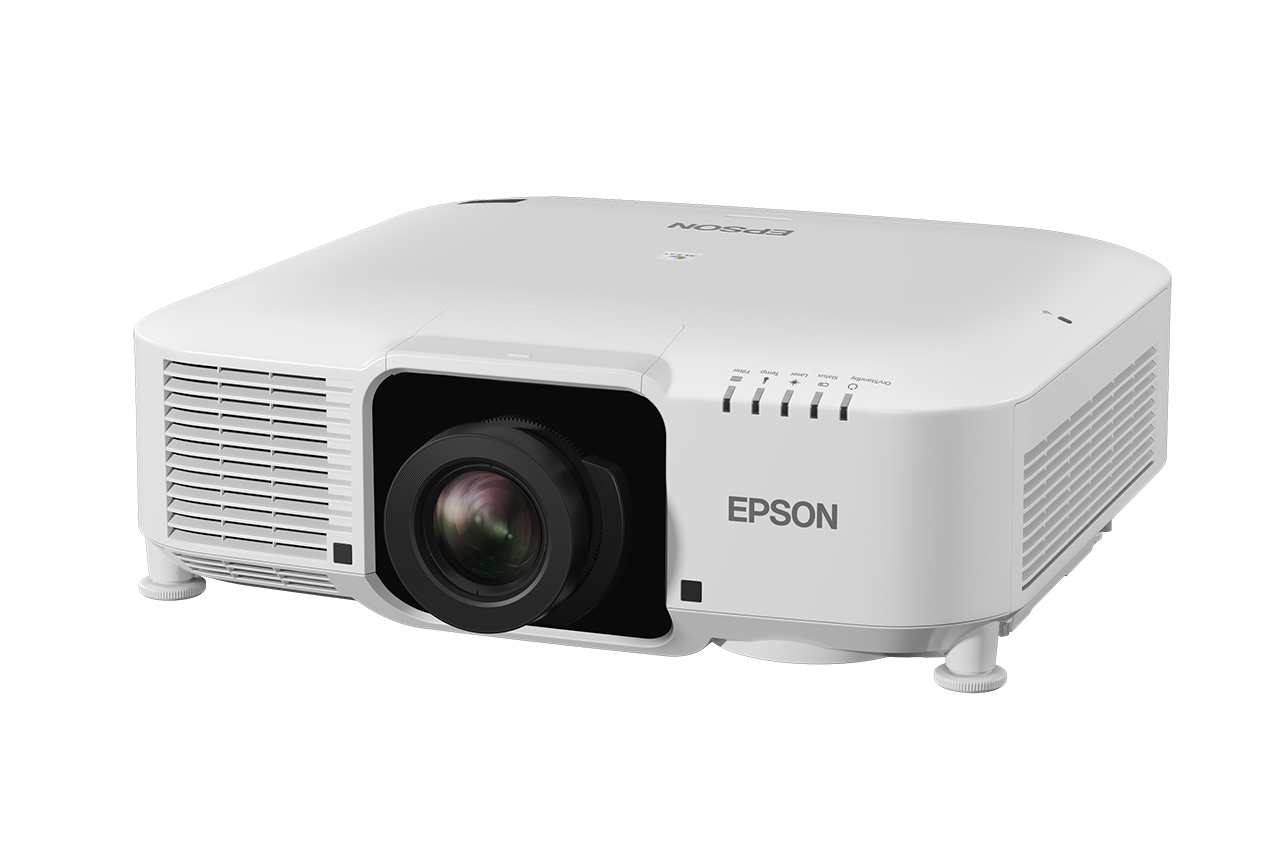

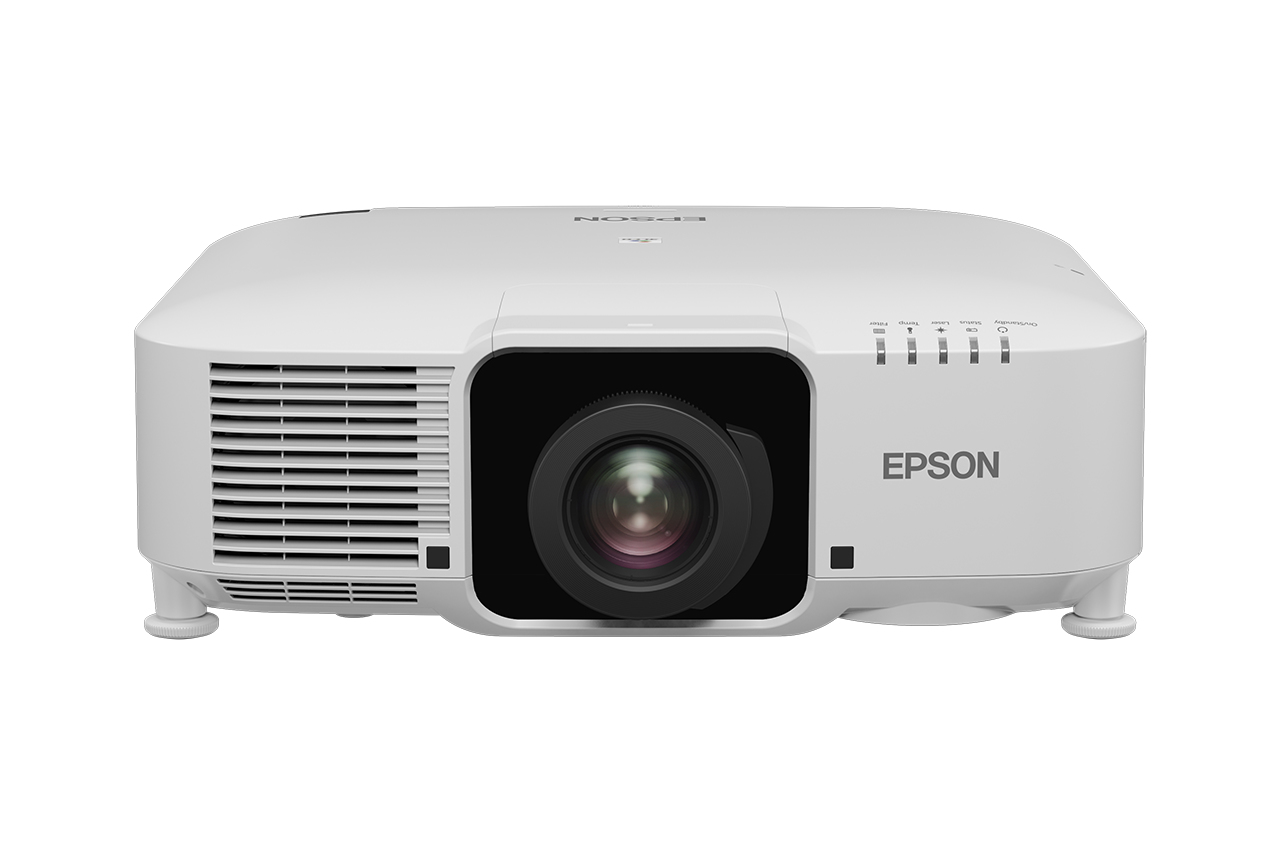

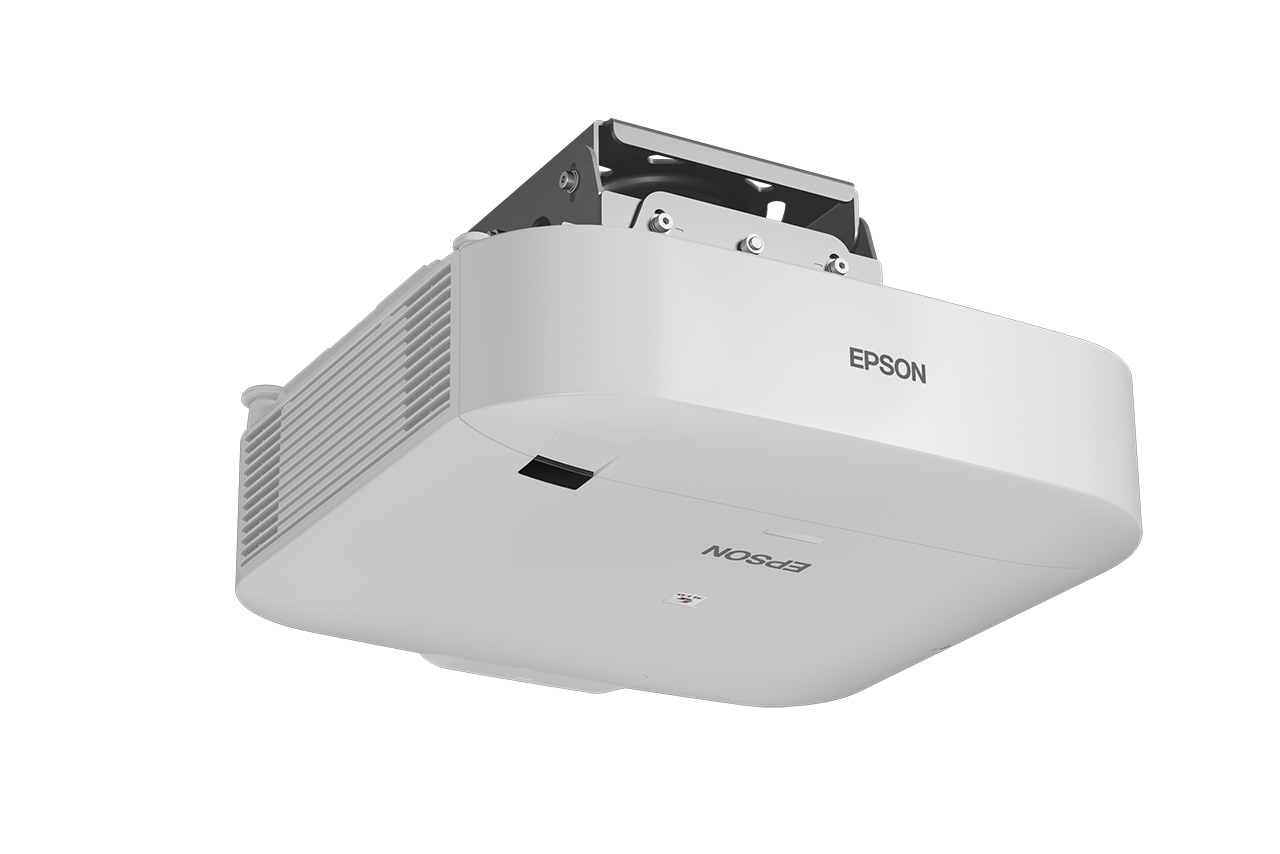

EB-L1070U
Model EB-L1070UPart no. V11H940940EAN 8715946672496
106 specifications
- Noise36 dB
- TypeLarge venue projector
- Weight16.9 kg
- ColourWhite
- Projector brightness7000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Large venue projector
- Weight
- 16.9 kg
- Colour
- White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-L1070U
- Part number
- V11H940940
- EAN / UPC
- 8715946672496
- Also known as
- Epson EB-L1070U
Specifications
106 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10, 16:9 |
| Screen size compatibility | 1270 - 25400 mm (50 - 1000") |
| Projection distance (wide) | 1.5 - 31.6 m |
| Projection distance (tele) | 2.5 - 50.4 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4900 ANSI lumens |
| Projector brightness (portrait mode) | 7000 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| Matrix size | 1.93 cm (0.76") |
| Heat dissipation | 1414.4 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | Varies by lens |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.6:1 |
| Throw ratio | 0.35 - 10.11:1 |
| Interchangeable lens | Yes |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2400 |
| Supported video modes | 1080p, 2160p |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Adjustable colour temperature | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 0 |
| DVI port | Yes |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| BNC input ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 30 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Air filter | Yes |
| Country of origin | China |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |

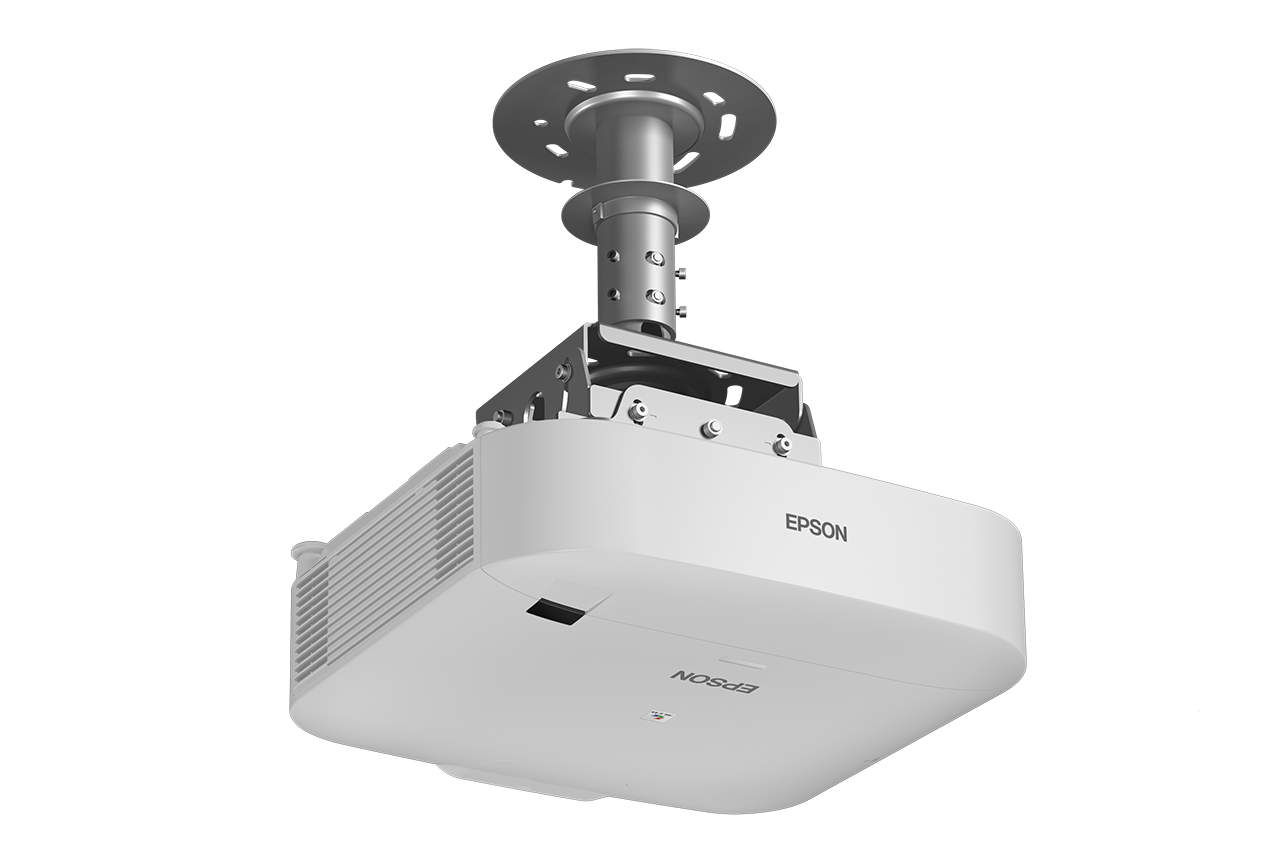

| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 416 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 299 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 16.9 kg |
| Width | 545 mm |
| Depth | 484 mm |
| Height | 189 mm |
| Package width | 572 mm |
| Package depth | 767 mm |
| Package height | 270 mm |
| Package weight | 20.7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| WLAN adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | 4K enhancement, Document Camera Compatible, Lens position memory |
| Sustainability certificates | TCO |
| Power consumption | 416 Watt (Normal Peak-mode), 299 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
Other features
| Specification | Value |
|---|---|

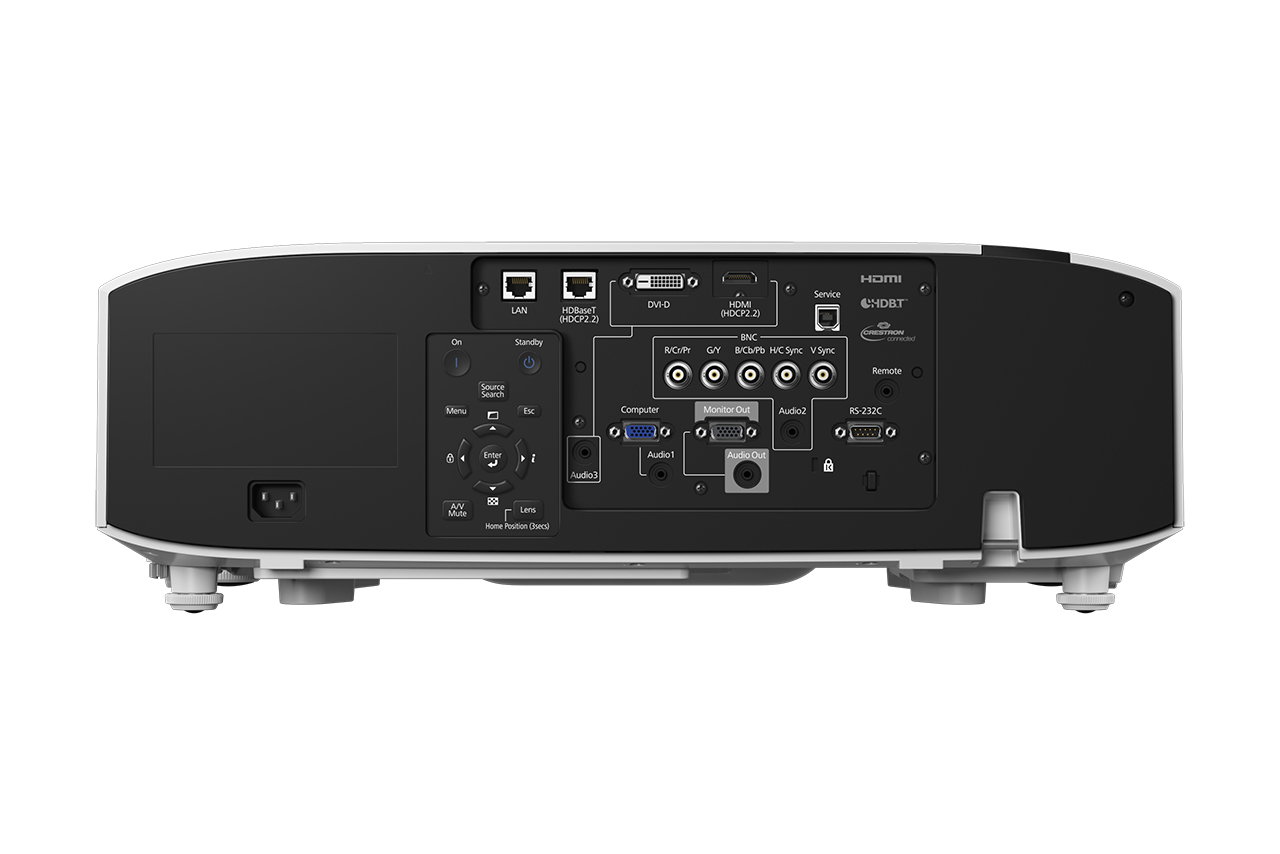

| Interface | USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), WLAN (2x), VGA in, VGA out, DVI in, HDMI in, BNC in, HDBaseT, Jack plug out, Jack plug in (3x), HDMI (HDCP 2.2), Wireless LAN IEEE 802.11b/g/n (optional) |
| Security features | Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Password protection |
| Option type | Air filter ELPAF38, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit |
| Box contents | CD Manual, Cable cover, Lens connector cap, Power cable, Quick Start Guide, Remote control incl. batteries |
| Control panel | 0.76 inch with C2 Fine |
