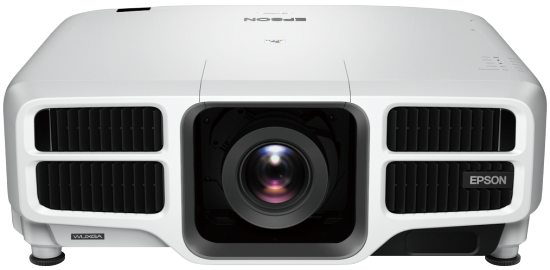

Epson EB-L1000U

Epson EB-L1000U

Model EB-L1000UPart no. V11H934040EAN 8715946646688

106 specifications
  • Noise34 dB
  • TypeLarge venue projector
  • Weight20 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
34 dB
Type
Large venue projector
Weight
20 kg
Colour
White
Projector brightness
5000 ANSI lumens
Light source type
Laser
Brand
Epson
Model
EB-L1000U
Part number
V11H934040
EAN / UPC
8715946646688
Also known as
Epson EB-L1000U

Specifications

106 specifications in 18 groups

Projector

Projector brightness5000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)1800:1
Native aspect ratio16:10
Screen size compatibility1270 - 7620 mm (50 - 300")
Projection distance1.53 - 15.1 m
Projection distance (wide)1.5 - 9.4 m
Projection distance (tele)2.5 - 15.1 m
Contrast ratio (dynamic)2500000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)3500 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±45°
Matrix size1.93 cm (0.76")

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusMotorized
Focal length range24.02 - 38.24 mm
Aperture range (F-F)1.7 - 2.3
Zoom capabilityYes
Zoom typeAuto
Zoom ratio1.6:1
Throw ratio1.44 - 2.32:1
Horizontal lens shift range-30 - 30°
Vertical lens shift range-67 - 67°
Horizontal lens shift range-30 - -30%
Vertical lens shift range-67 - -67%
Lens position memory10

Video

Full HDYes
3DNo
Video colour modesCinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity0
USB 2.0 Type-B ports quantity1
Serial interface typeRS-232C
PC Audio inYes
PC Audio outYes
BNC input ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level34 dB
Noise level (economic mode)28 dB
Country of originChina
Password protectionYes

Multimedia

Built-in speaker(s)Yes

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)454 W
Power consumption (standby)0.5 W
Power consumption (economy mode)313 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight20 kg
Width586 mm
Depth492 mm
Height211 mm
Package width750 mm
Package depth780 mm
Package height325 mm
Package weight29.6 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection

Technical details

Mobile app supportYes
Other features4K enhancement, Absolute Black, Auto Calibration, Built-in speaker, Customizable user logo, Frame interpolation, Lens position memory
Power consumption377 Watt (Normal On-Mode), 454 Watt (Normal Peak-mode), 313 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.1 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.1 m
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet6 pc(s)
Products per pallet (UK)6 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceUSB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in, VGA out, DVI in, HDMI in, BNC in, HDBaseT, Jack plug out, Jack plug in (3x), Wireless LAN b/g/g 2.4GHz (optional)
RS-232 ports1
RS-232CYes
Security featuresKensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection
Option typeQuick wireless USB key, Wireless LAN unit
Box contentsCD Manual, Cable cover, Computer cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries
Control panel0.76 inch with C2 Fine
