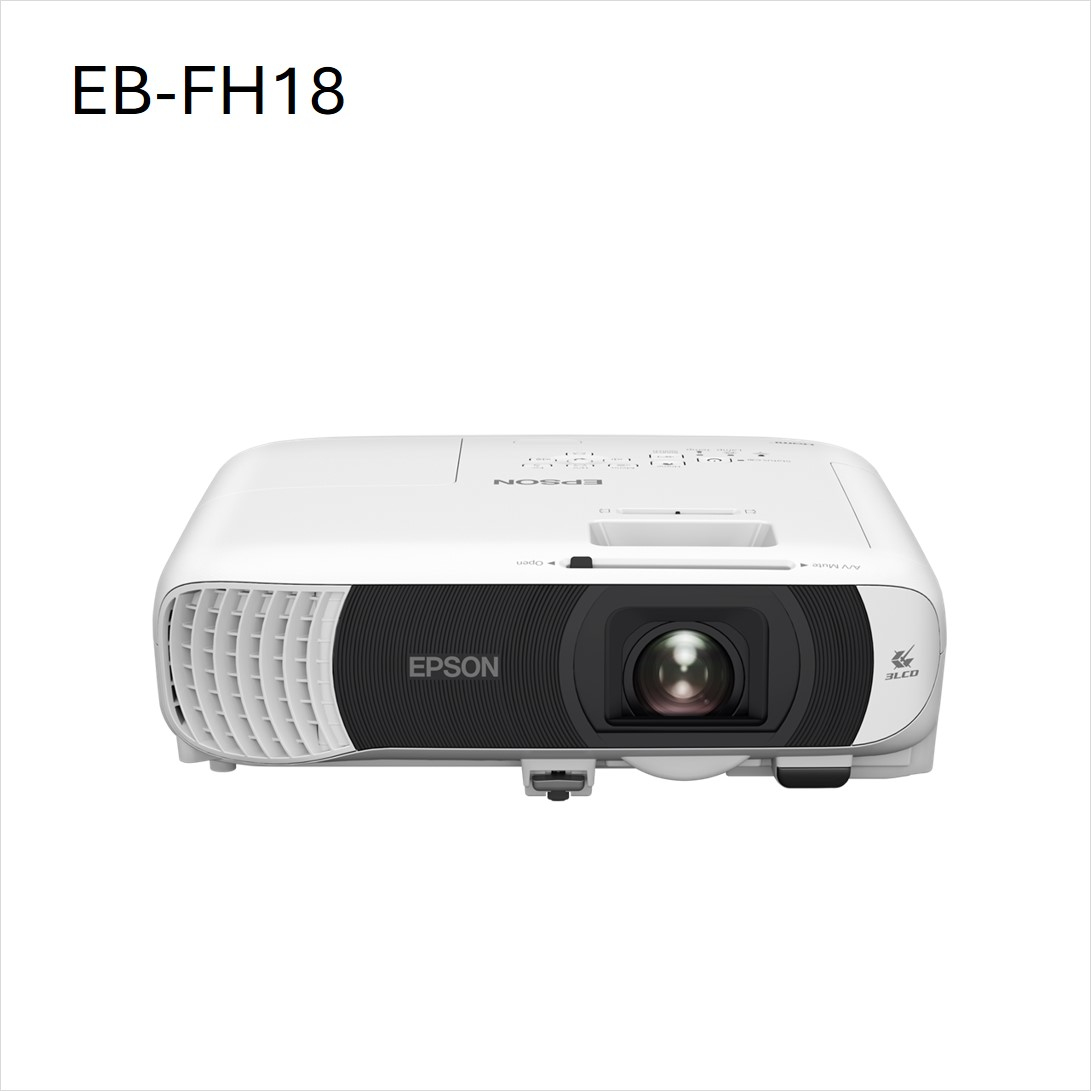

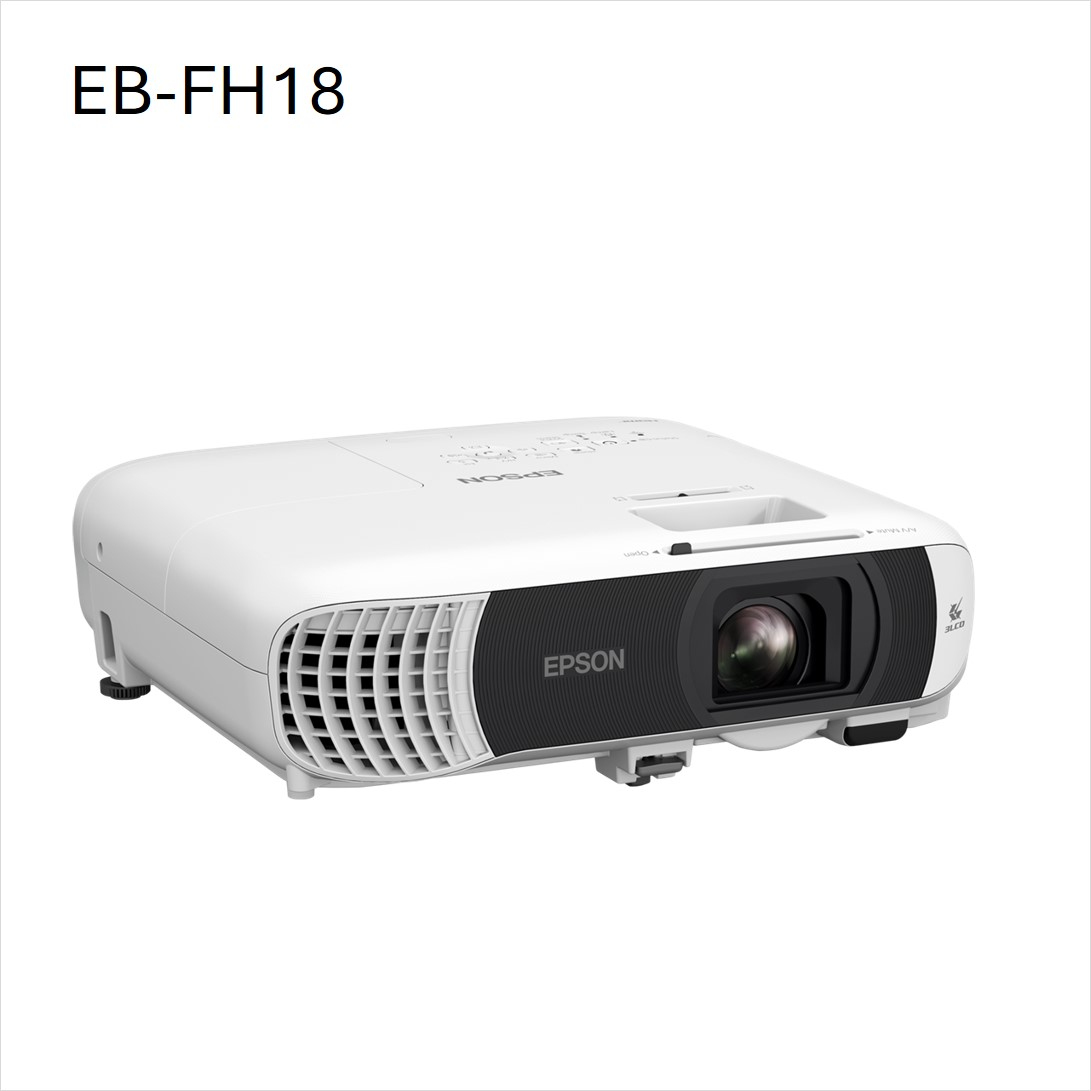

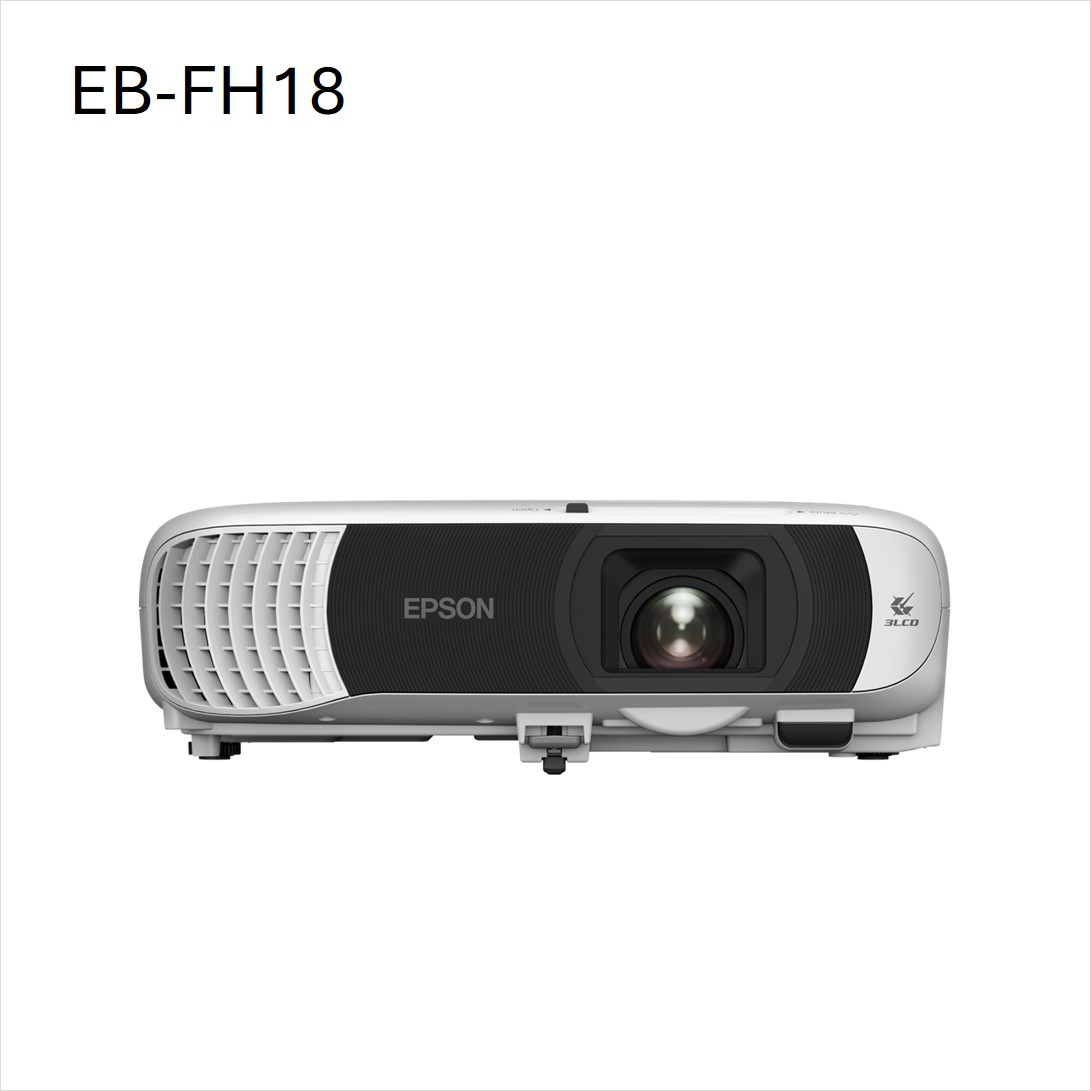

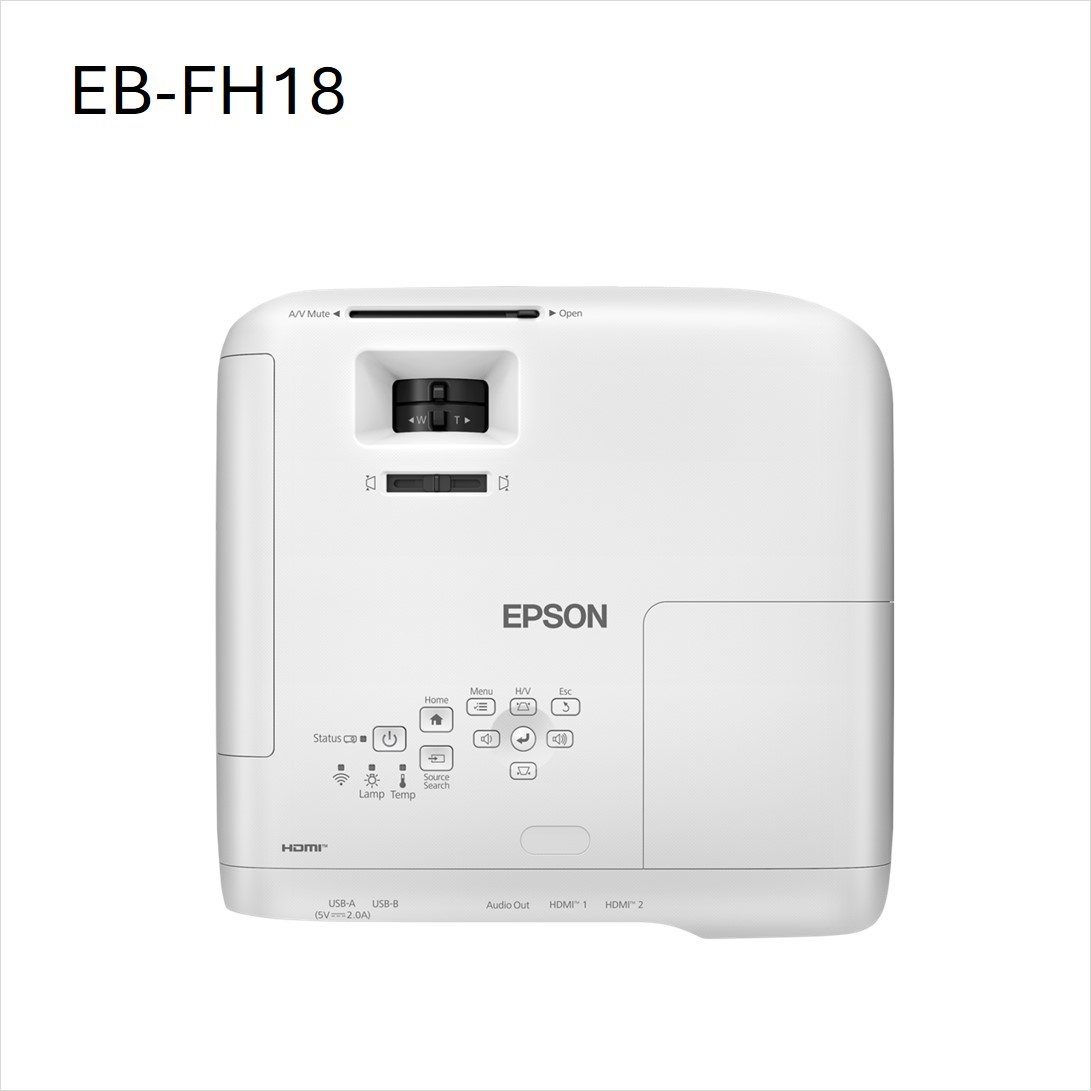

EB-FH18
Model EB-FH18Part no. V11HB59240EAN 8715946738598
99 specifications
- Noise37 dB
- Weight3.1 kg
- ColourWhite
- Projector brightness4100 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 37 dB
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4100 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-FH18
- Part number
- V11HB59240
- EAN / UPC
- 8715946738598
- Also known as
- Epson EB-FH18
Specifications
99 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 787.4 - 7721.6 mm (31 - 304") |
| Projection distance | 0.88 - 14.29 m |
| Projection distance (wide) | 0.9 - 8.9 m |
| Projection distance (tele) | 1.4 - 14.3 m |
| Contrast ratio (dynamic) | 16000:1 |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 2300 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.57 cm (0.62") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5500 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 230 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.1 mm |
| Aperture range (F-F) | 1.51 - 1.77 |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.30 - 2.09:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Video processing | 8 bit |

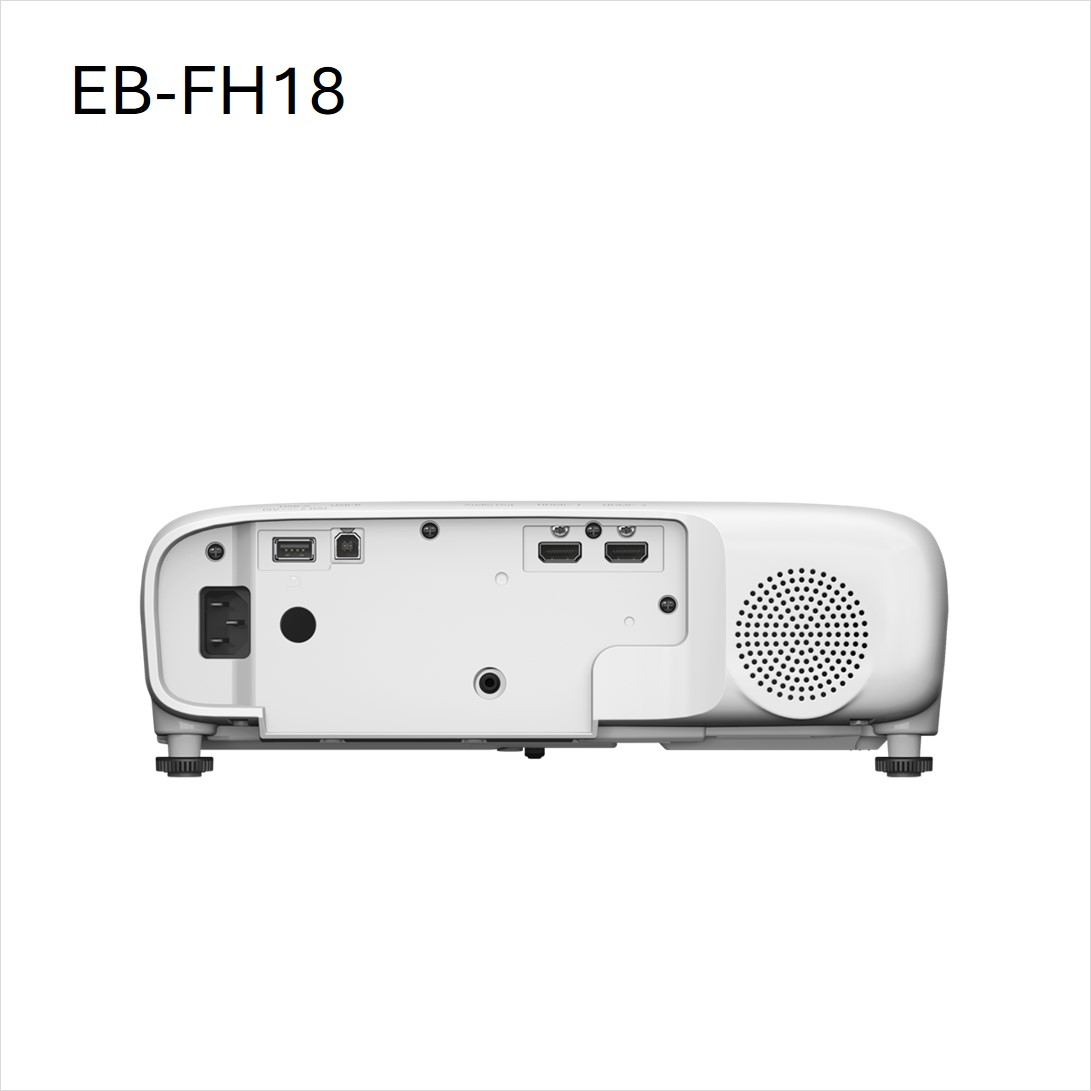

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Country of origin | Philippines |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 284 W |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (economy mode) | 181 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |

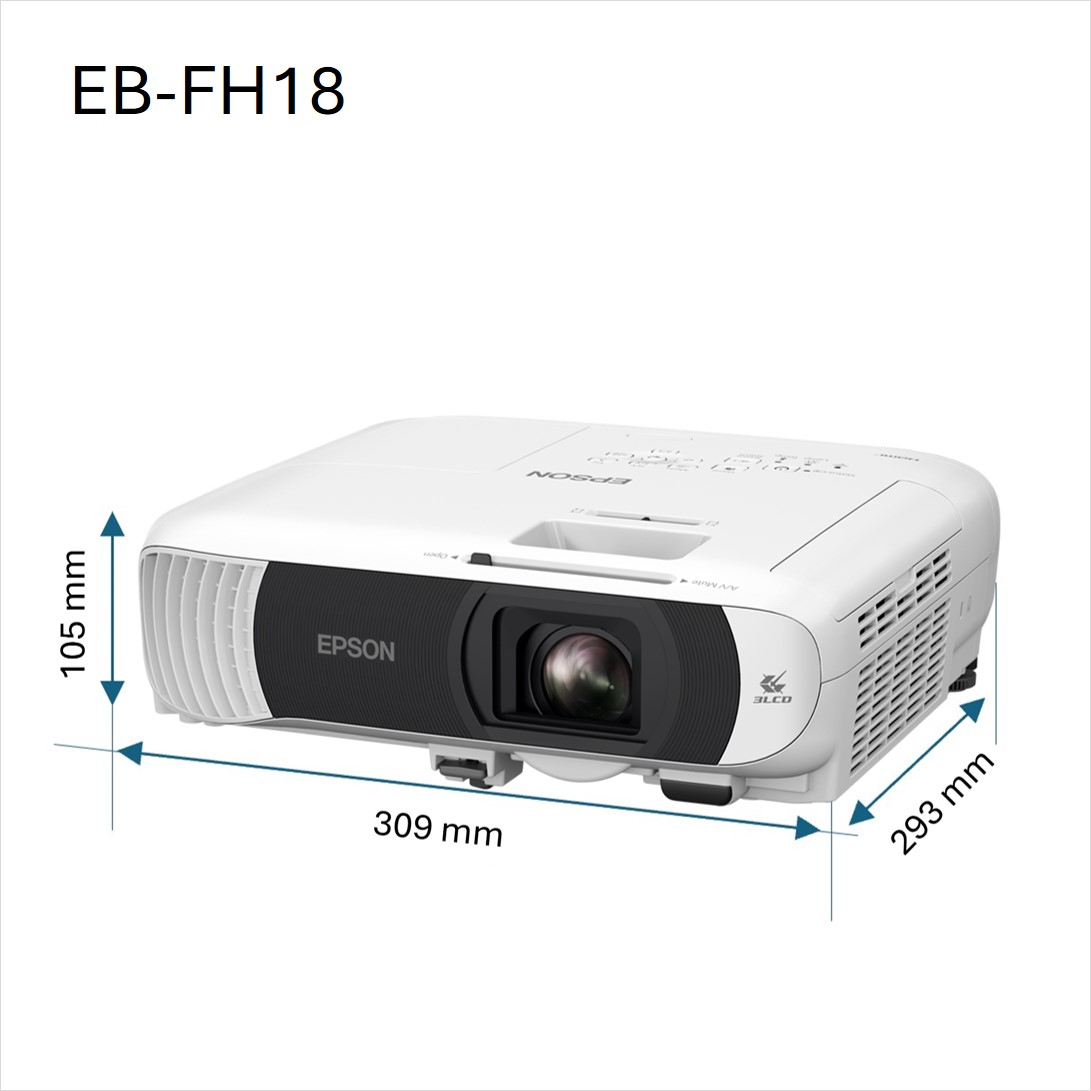

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 309 mm |
| Depth | 293 mm |
| Height | 105 mm |
| Package width | 380 mm |
| Package depth | 390 mm |
| Package height | 175 mm |
| Package weight | 4.44 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | A/V mute, AV Mute Slide, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Home Screen, JPEG Viewer, Long lamp life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Volume control, Web Control, |
| Power consumption | 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 2.25 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.25 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 72 pc(s) |
| Products per pallet (UK) | 72 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Standard |
| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), Miracast, Jack plug out |
| Security features | Kensington lock, Padlock, Security cable hole, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP |
| Option type | Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Spare lamp, Suspension adapter |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document |
| Control panel | 0.62 inch with C2 Fine |
