EB-E12 XGA 3LCD Projector
Model EB-E12 XGA 3LCD ProjectorPart no. V11HB55052
44 specifications
- Noise37 dB
- Weight2.4 kg
- ColourWhite
- Projection technology3LCD
- Service life of light source6000 h
- FocusManual
Overview
- Noise
- 37 dB
- Weight
- 2.4 kg
- Colour
- White
- Projection technology
- 3LCD
- Service life of light source
- 6000 h
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-E12 XGA 3LCD Projector
- Part number
- V11HB55052
- Also known as
- Epson EB-E12 XGA 3LCD Projector XGA (1024x768) White
Specifications
44 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 381 - 8890 mm (15 - 350") |
| Colour light output | 3600 ANSI lumens |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
| White light output | 3600 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 16.7 mm |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Throw ratio | 1.44 – 2.88 |

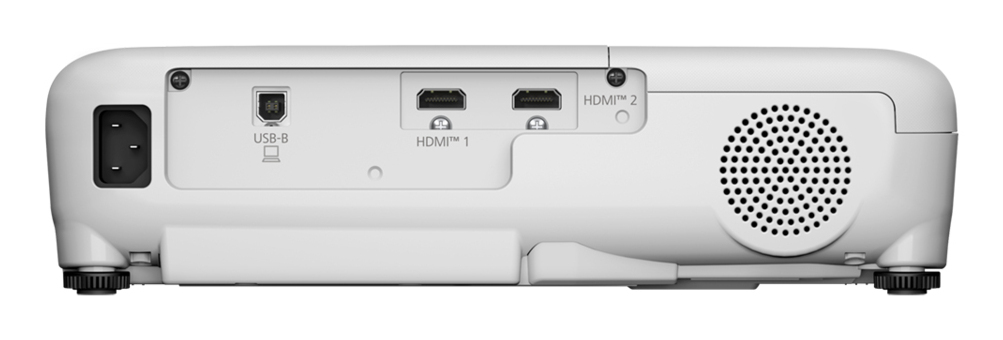

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| USB 2.0 Type-B ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 332 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 302 mm |
| Depth | 234 mm |
| Height | 77 mm |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
