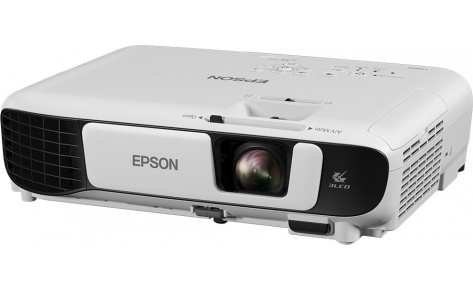

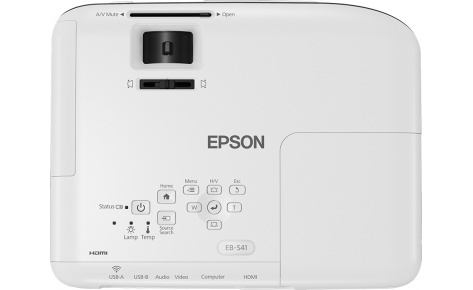

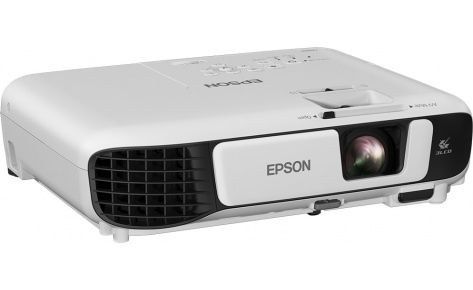

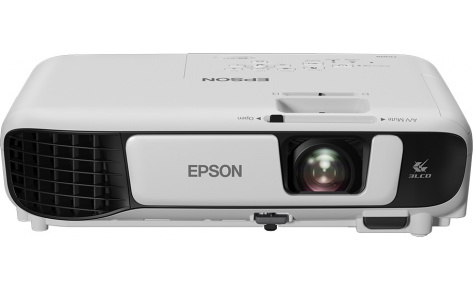

EB-E05 Standard throw projector 3200 ANSI lumens 3LCD XGA (1024x768) Grey, White
Model EB-E05Part no. V11H843140EAN 8715946674667
72 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.5 kg
- ColourGrey, White
- Projector brightness3200 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.5 kg
- Colour
- Grey, White
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-E05
- Part number
- V11H843140
- EAN / UPC
- 8715946674667
- Also known as
- Epson EB-E05 Standard throw projector 3200 ANSI lumens 3LCD XGA (1024x768) Grey, White
Specifications
72 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance (wide) | 0 - 1.8 m |
| Projection distance (tele) | 0 - 2.17 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 2235 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.4 cm (0.55") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Throw ratio | 1.48 - 1.77:1 |
| Offset | 8% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| On Screen Display (OSD) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Grey, White |
| Placement | Desktop |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 210 W |
| Power consumption (standby) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 302 mm |
| Depth | 237 mm |
| Height | 82 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 80 cm |
| Pallet gross width | 12 cm |
| Pallet height (UK) | 2.23 m |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 80 cm |
| Products per pallet | 78 pc(s) |
| Products per pallet (UK) | 78 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
