EB-E01
Model EB-E01Part no. V11H971040EAN 8715496680224
91 specifications
- ConnectivityVGA in, HDMI in, USB 2.0
- Noise37 dB
- TypeShort throw projector
- Weight2.4 kg
- ColourWhite
- Projector brightness3300 ANSI lumens
Overview
- Connectivity
- VGA in, HDMI in, USB 2.0
- Noise
- 37 dB
- Type
- Short throw projector
- Weight
- 2.4 kg
- Colour
- White
- Projector brightness
- 3300 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-E01
- Part numbers
- V11H971040, V11H971056, V11H971040DA
- EAN / UPC
- 8715496680224, 8715946680224
- Also known as
- Epson EB-E01
Specifications
91 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3300 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:10, 16:9 |
| Screen size compatibility | 762 - 8890 mm (30 - 350") |
| Projection distance | 0 - 1.76 m |
| Contrast ratio (dynamic) | 15000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2200 ANSI lumens |
| Uniformity | 85% |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.4 cm (0.55") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.7 mm |
| Fixed focal length | 16.7 mm |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.44 - 1.95:1 |
Video
| Specification | Value |
|---|---|
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Video processing | 10 bit |

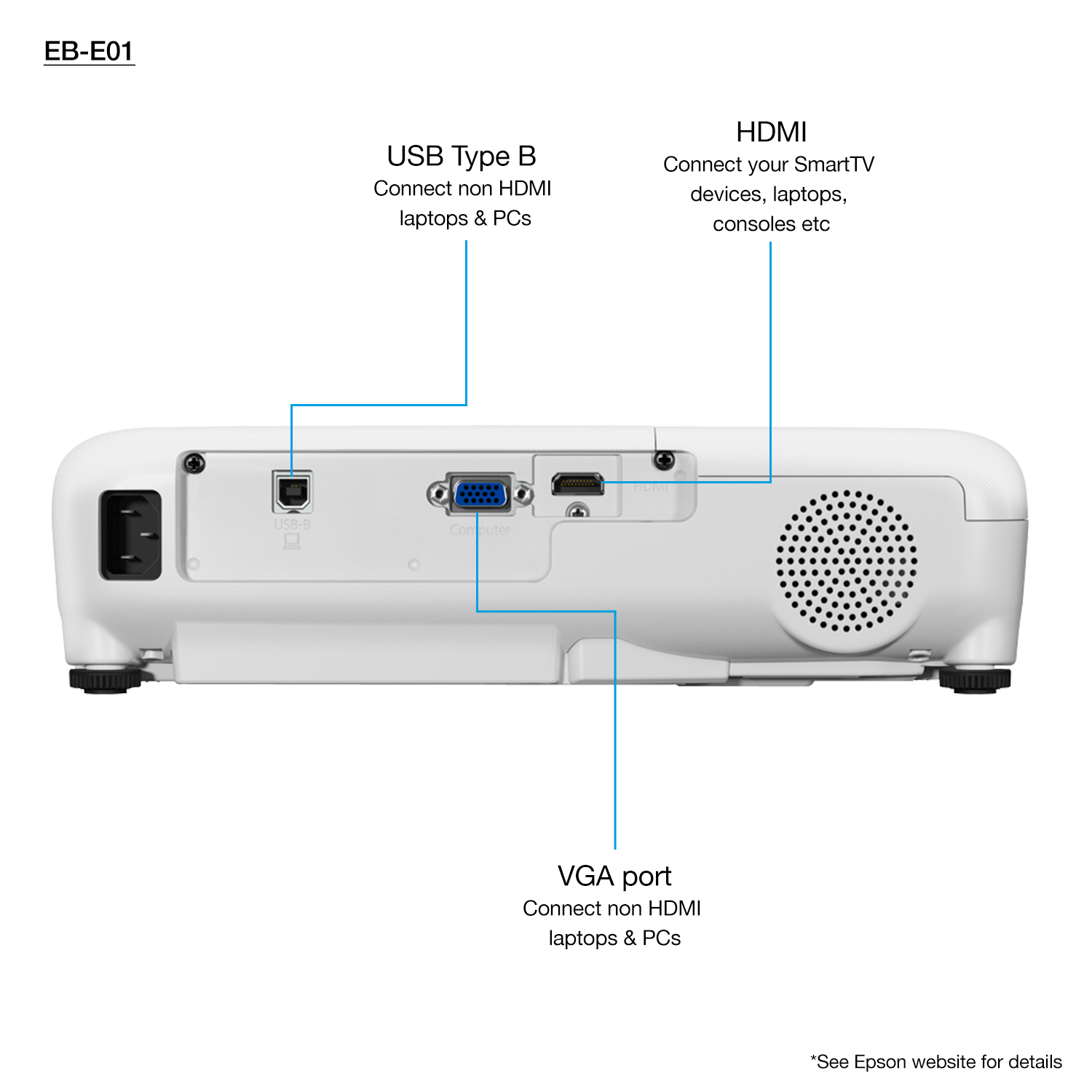

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Country of origin | Philippines |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Portable |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 327 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 225 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |

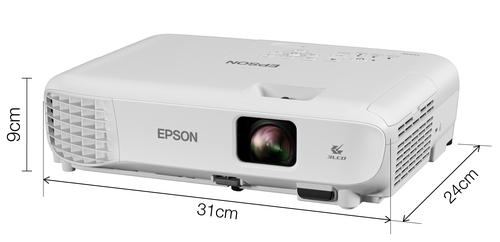

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 302 mm |
| Depth | 237 mm |
| Height | 82 mm |
| Package width | 329 mm |
| Package depth | 378 mm |
| Package height | 150 mm |
| Package weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Bundled software | Epson Creative Projection, Epson Projector Management, Epson Projector Professional Tool |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | AV Mute Slide, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function |
| Power consumption | 286 Watt (Normal On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
| USB display function | 2 in 1: Image / Mouse |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 84 pc(s) |
| Products per pallet (UK) | 126 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | VGA in, HDMI in, USB 2.0 |
| Security features | Kensington lock, Security bar, Password protection |
| Option type | Soft carry case |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card |
| Control panel | 55 inch with C2 Fine |
