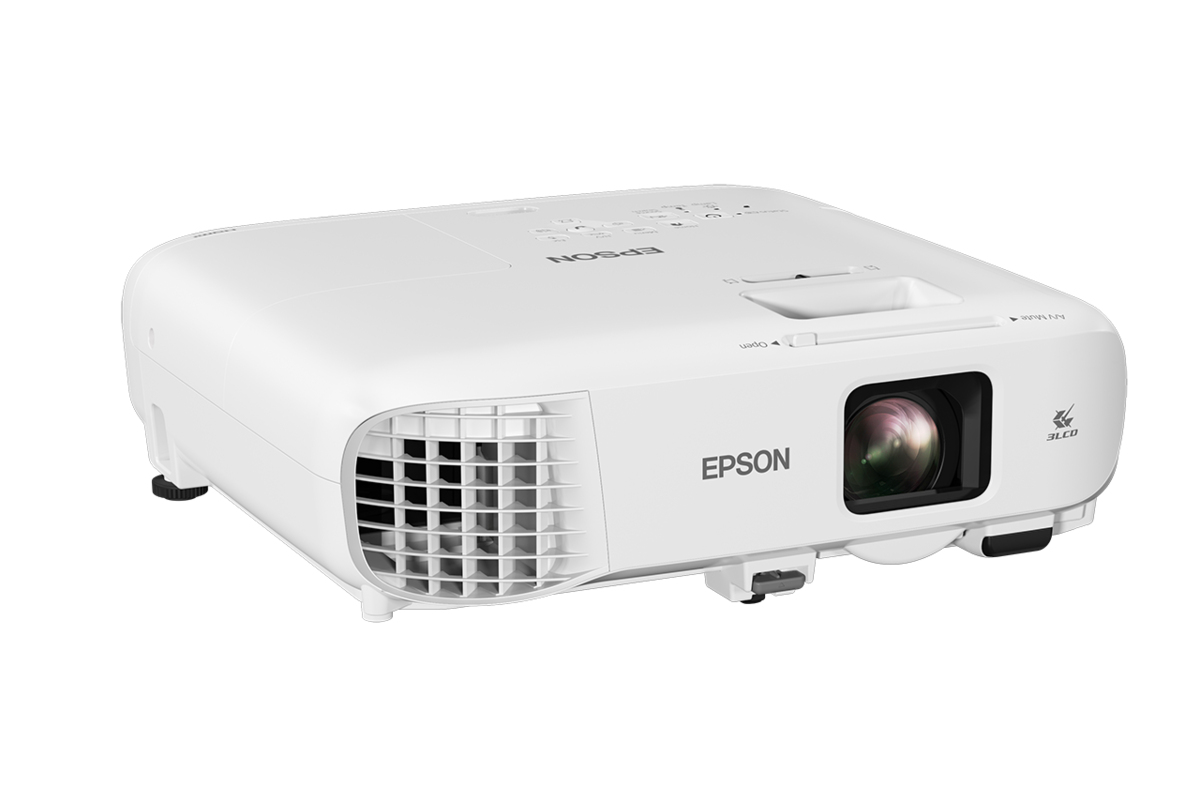

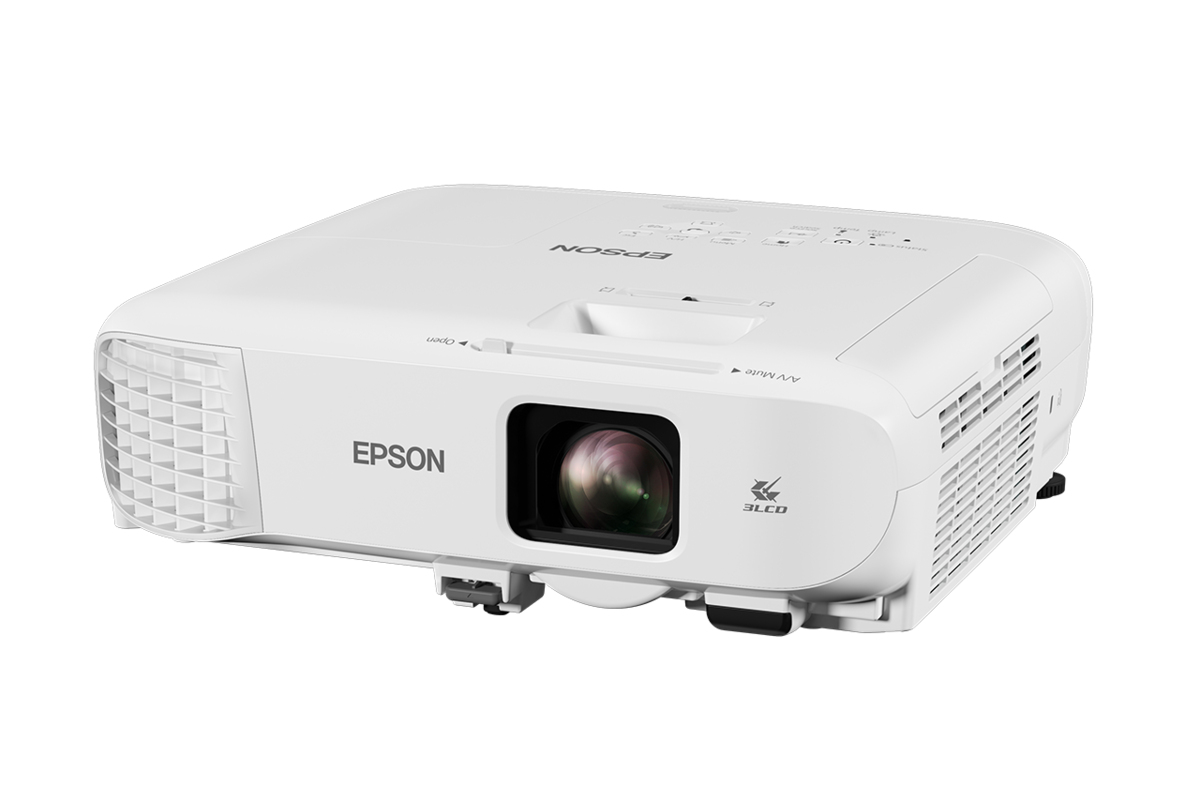

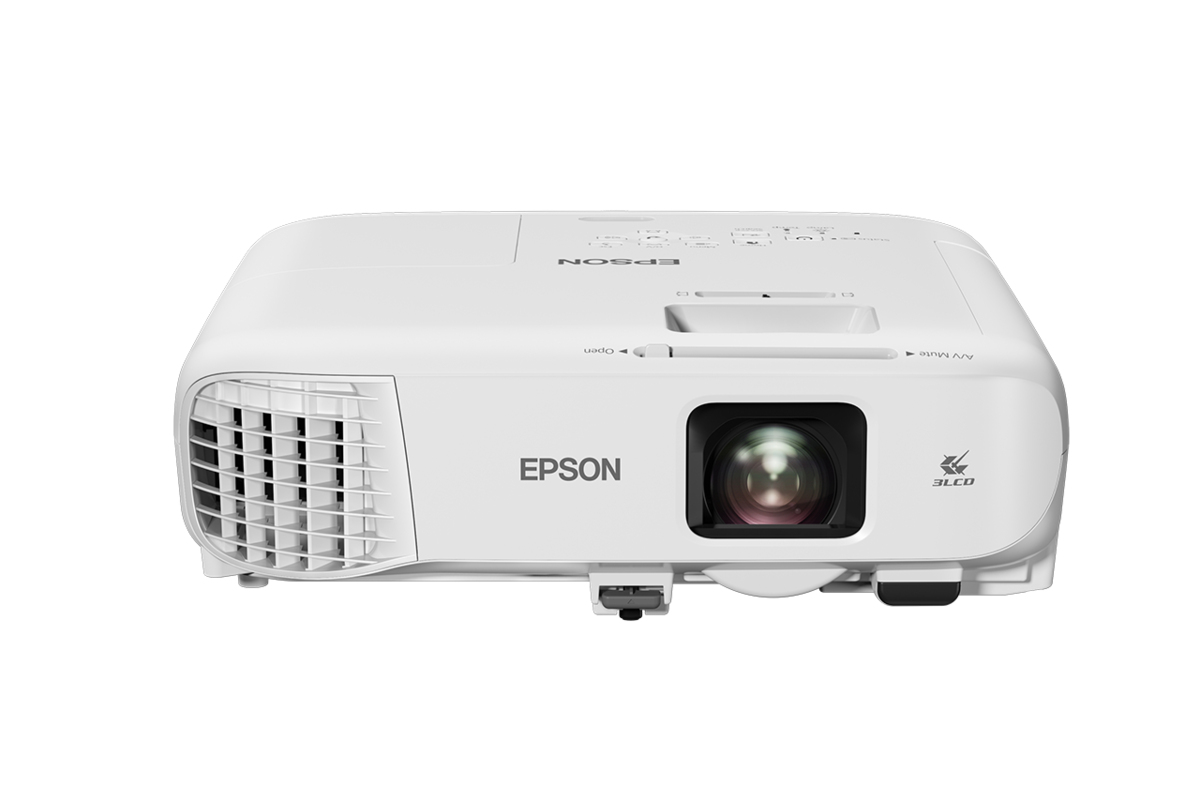

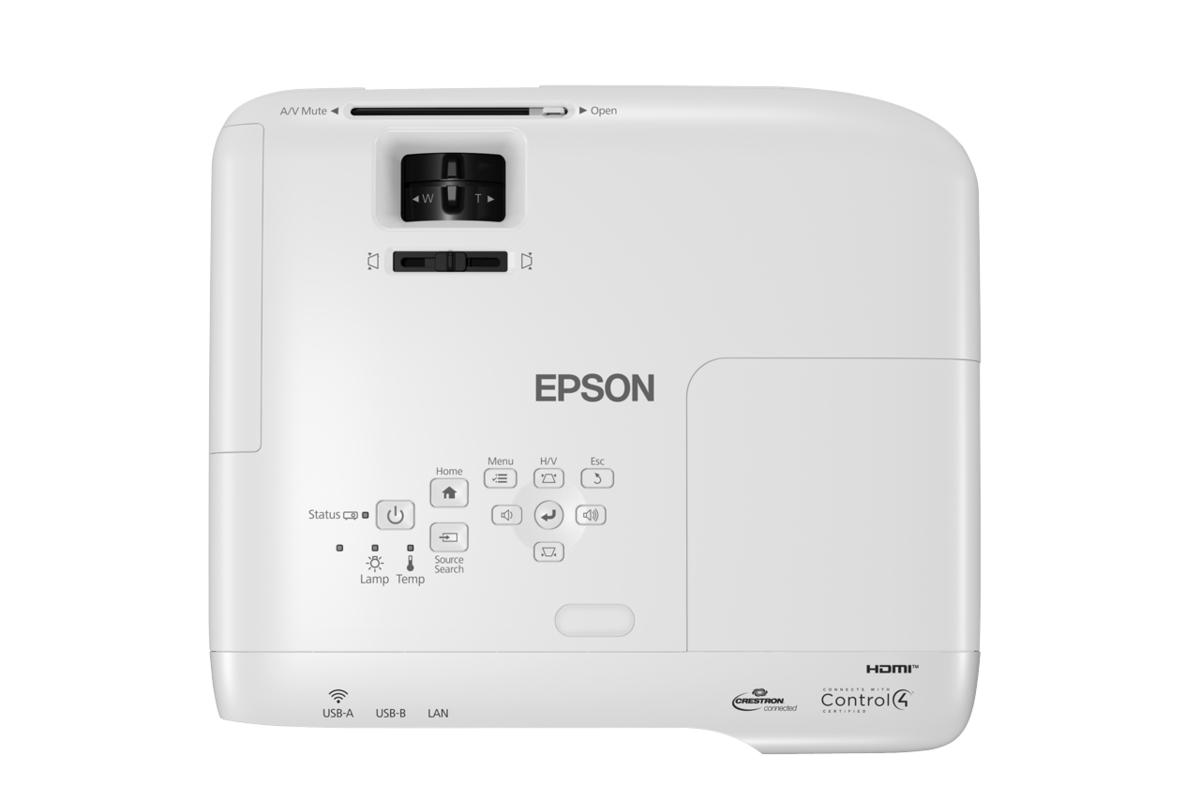

EB-972 Ultra short throw projector 4100 ANSI lumens 3LCD XGA (1024x768) White
Model EB-972Part no. V11H986052EAN 9314020632785
71 specifications
- Noise37 dB
- TypeUltra short throw projector
- Weight3.1 kg
- ColourWhite
- Projector brightness4100 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Ultra short throw projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4100 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-972
- Part numbers
- V11H986052, V11H986053
- EAN / UPC
- 9314020632785
- Also known as
- Epson EB-972 Ultra short throw projector 4100 ANSI lumens 3LCD XGA (1024x768) White
Specifications
71 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projector brightness | 4001 LED lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 4:3 |
| Smart projector | Yes |
| Screen size compatibility | 685.8 - 6654.8 mm (27 - 262") |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 10000 h |
| Lamp type | UHE |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 – 29.2 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.58 - 2.56 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |

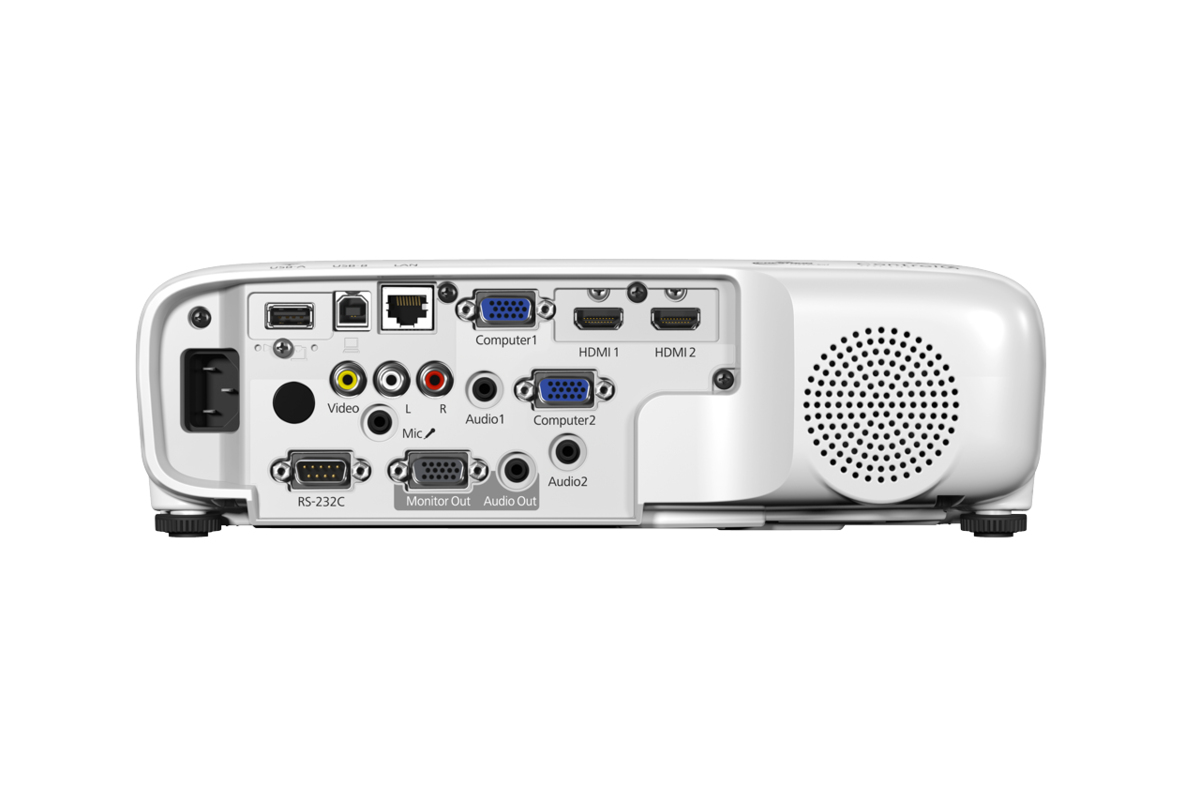

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Screen mirroring | Yes |
| Air filter | Yes |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 16 |
| RMS rated power | 1 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Education |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 285 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Cord length | 3 m |
Supplier features
| Specification | Value |
|---|---|
| Battery type | AA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 309 mm |
| Depth | 282 mm |
| Height | 90 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | VGA, Power, USB Type-A to Micro USB-B |
| Carrying case | Yes |
| Bundled software | CDROM |
