EB-870Ei
Model EB-870EiPart no. V11HC03040EAN 8715946749648
86 specifications
- Noise33 dB
- TypeUltra short throw projector
- Weight7.2 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 33 dB
- Type
- Ultra short throw projector
- Weight
- 7.2 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-870Ei
- Part number
- V11HC03040
- EAN / UPC
- 8715946749648
- Also known as
- Epson EB-870Ei
Specifications
86 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 21:9, 16:9 |
| Smart projector | No |
| Screen size compatibility | 1524 - 3302 mm (60 - 130") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3600 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±3° |
| Keystone correction, vertical | ±3° |
| Matrix size | 1.57 cm (0.62") |
| Heat dissipation | 956.8 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.25 - 0.35:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB |
| Video processing | 10 bit |

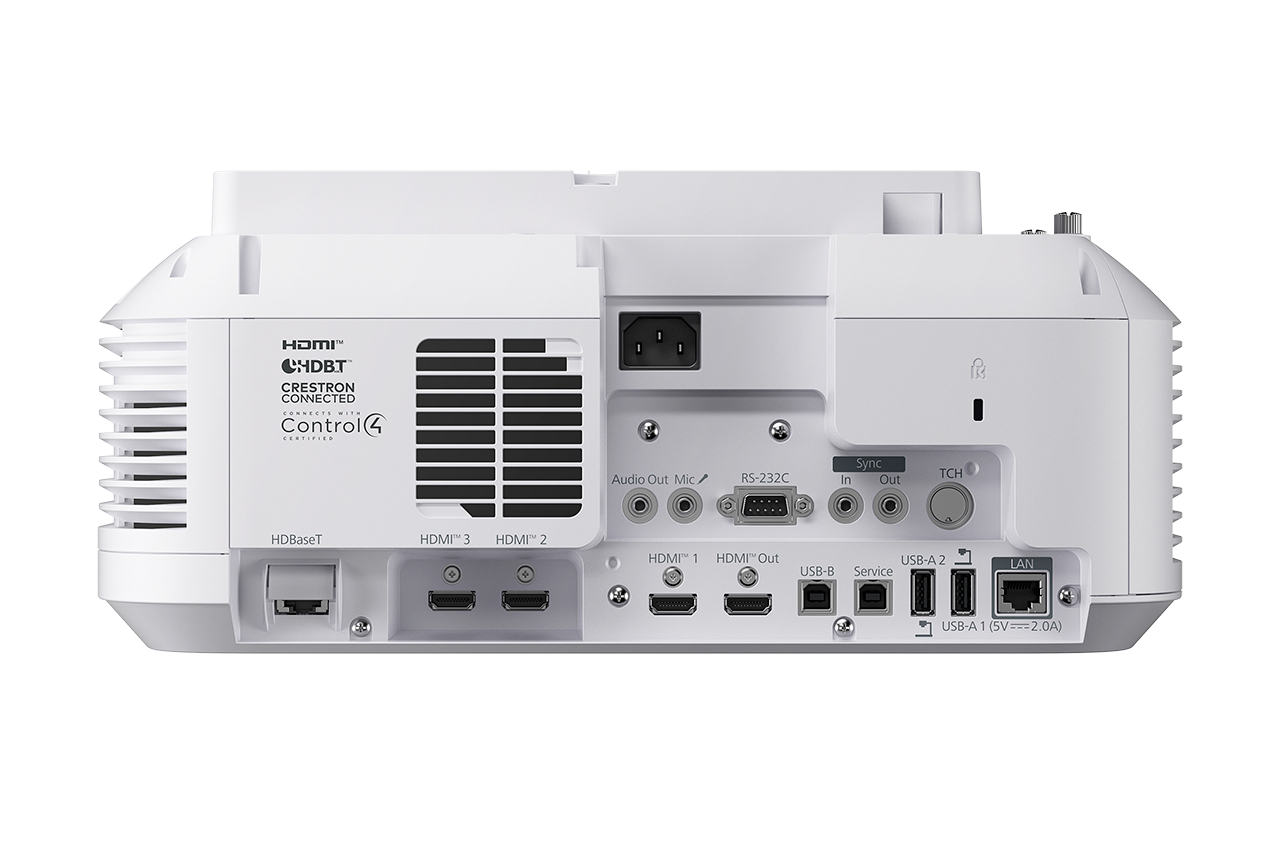

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 3 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi Direct | Yes |
| Miracast | Yes |
| Apple AirPlay 2 support | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Interactive input supported | Interactive pen |
| Noise level | 33 dB |
| Noise level (economic mode) | 25 dB |
| Country of origin | Philippines |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Education |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 245.2 W |
| Power consumption (economy mode) | 205.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 45 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.2 kg |
| Width | 376 mm |
| Depth | 395 mm |
| Height | 139 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Interactive pen included | Yes |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Calibration, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Duolink Interactivity, Easy OSD pre-setting, Finger-touch support, Home Screen, |
| Power consumption | 245.2 Watt (Normal On-Mode), 205.3 Watt (Eco On-Mode), 311.9 Watt (Normal Peak-mode), 275.6 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), USB 2.0 Mini-B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, HDMI in (3x), HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in, Microphone input, Sync. in, Sync. out, Multi-Touch interface |
| Security features | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, HDBaseT Transmitter, Pen tip(Felt), Pen tip(Teflon), Replacement pen tips, Safety wire set, Short throw wall mount, Visualiser camera |
| Box contents | 2 x Pen tip(Teflon), Information sheet, Interactive pen, Pen Holder/Stand, Power cable, Projector feet, USB cable |
| Control panel | 0.62 inch with C2 Fine |
