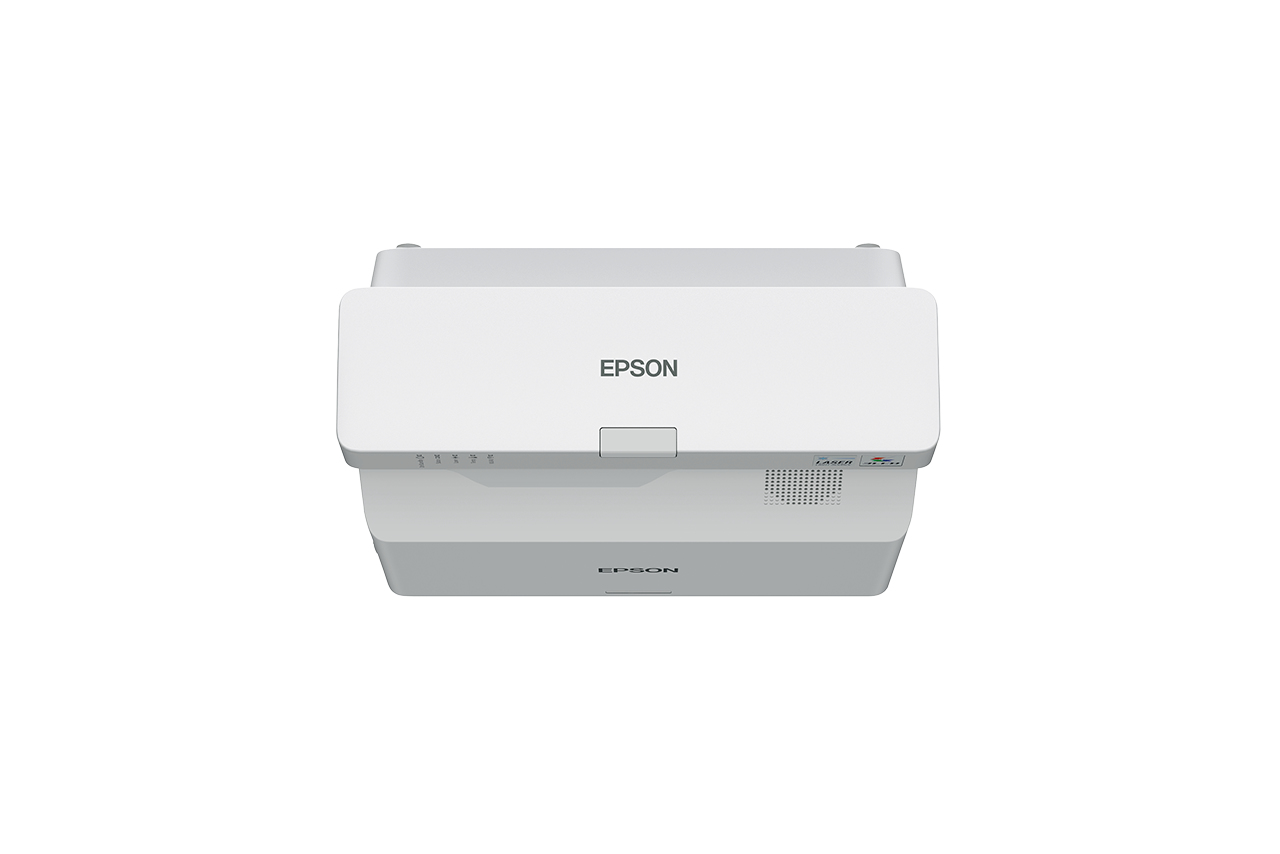

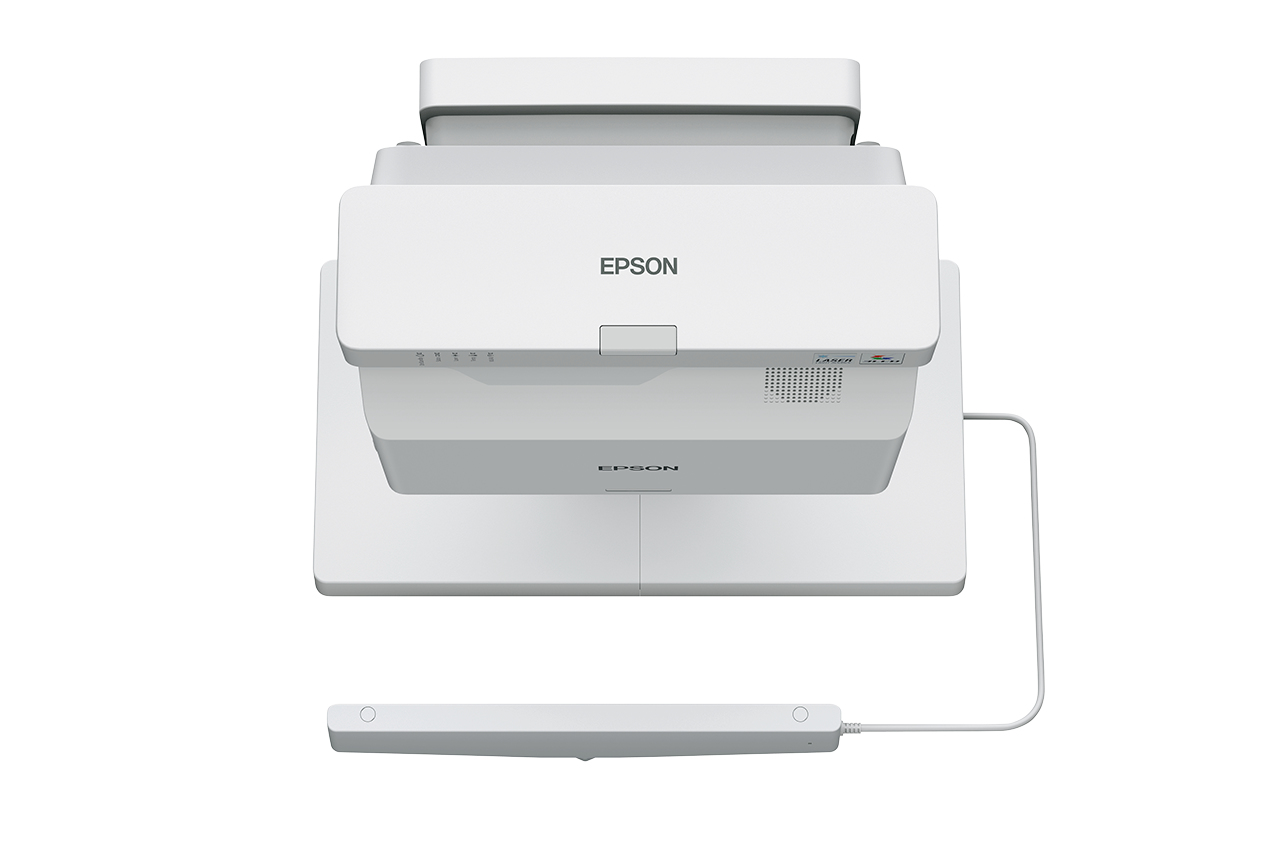

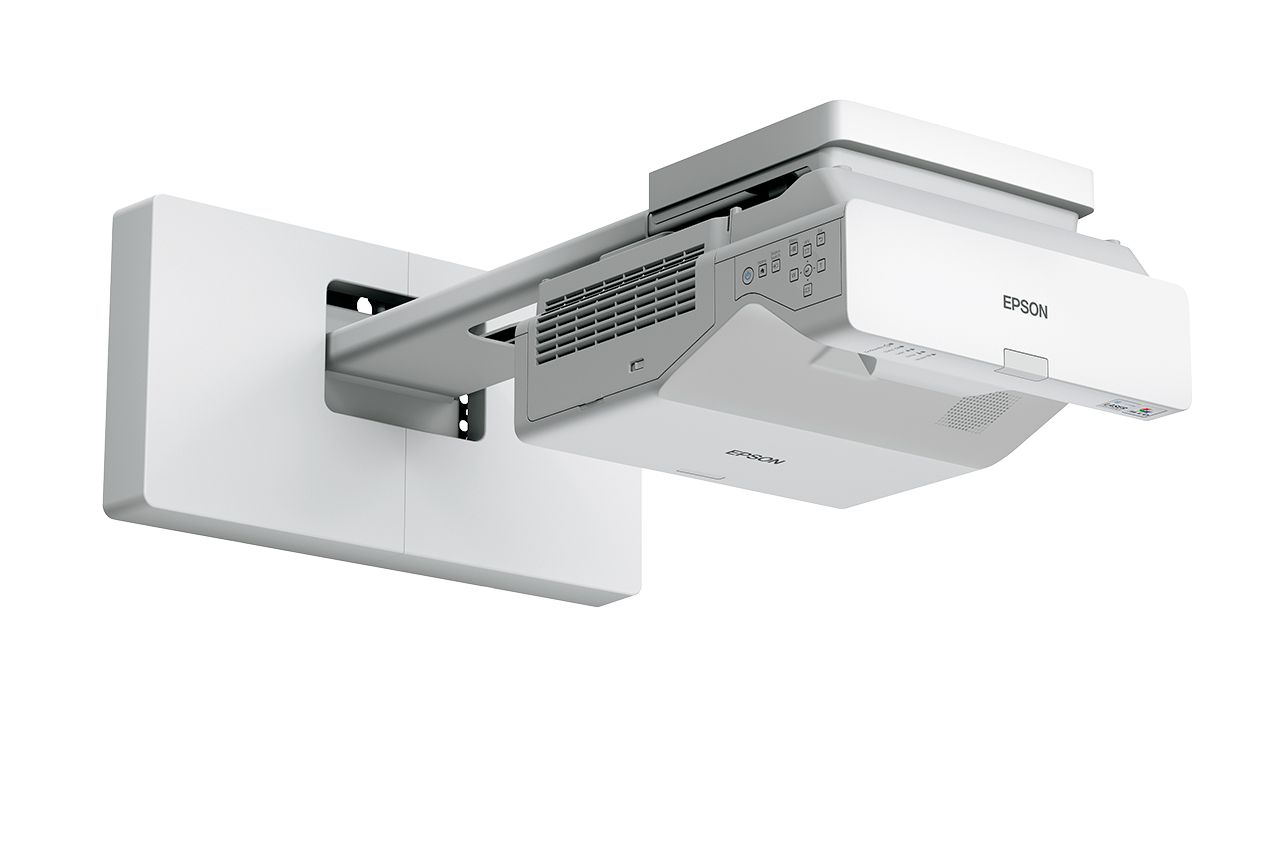

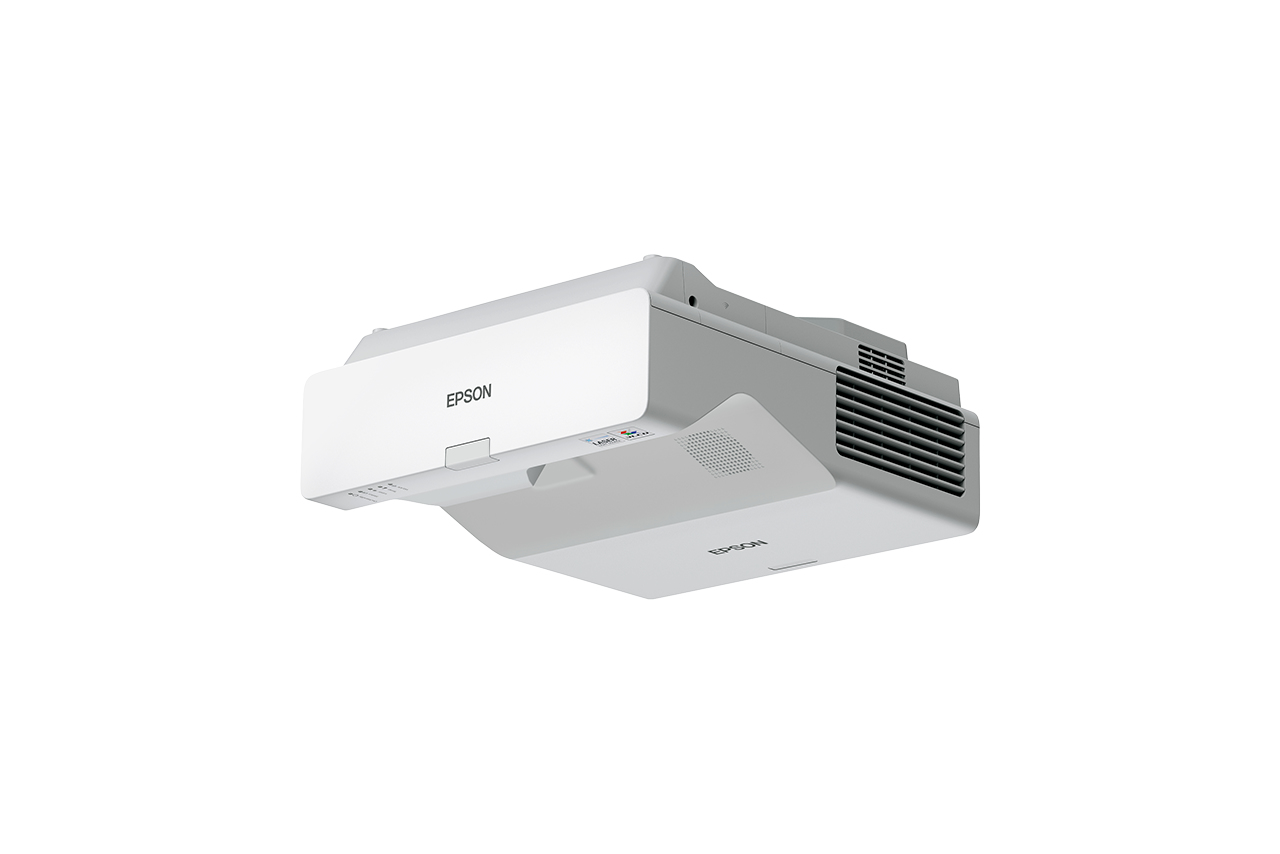

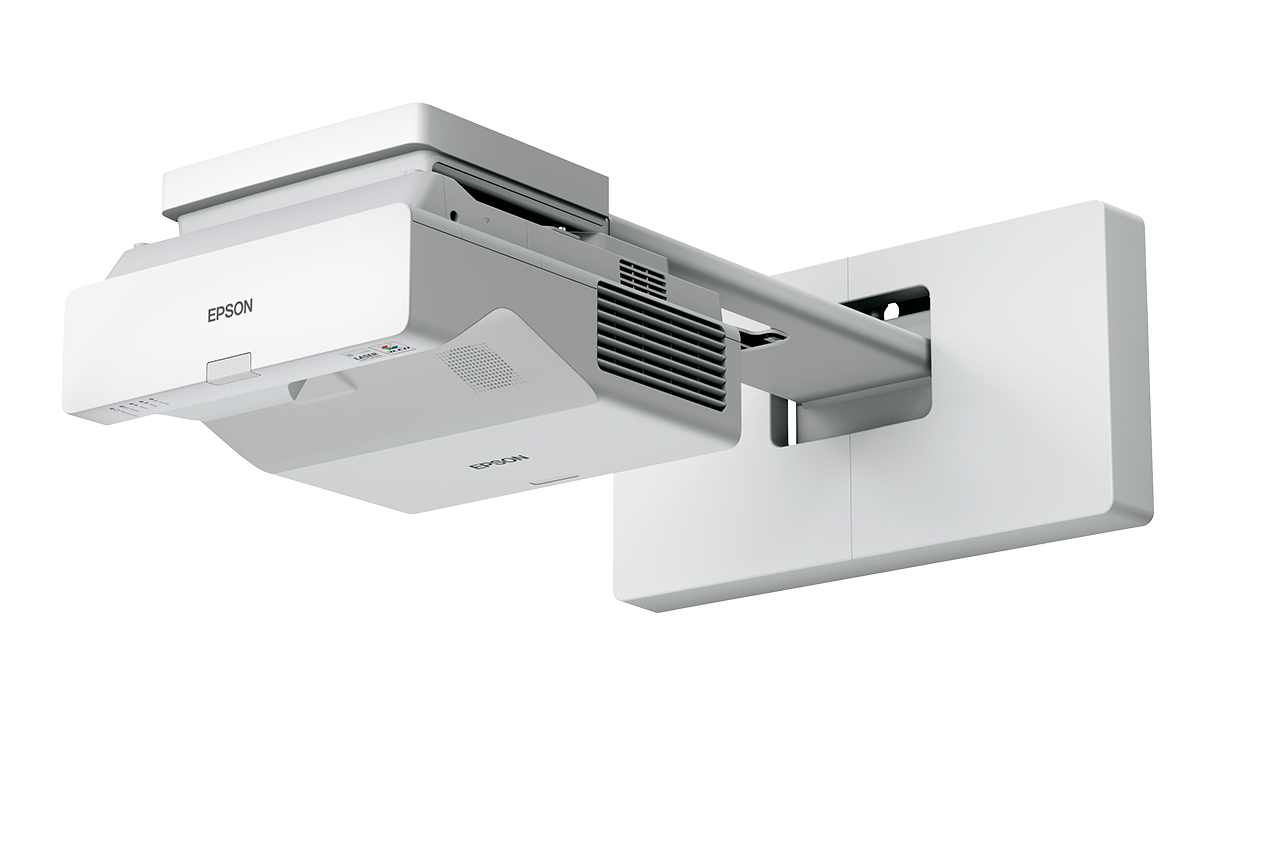

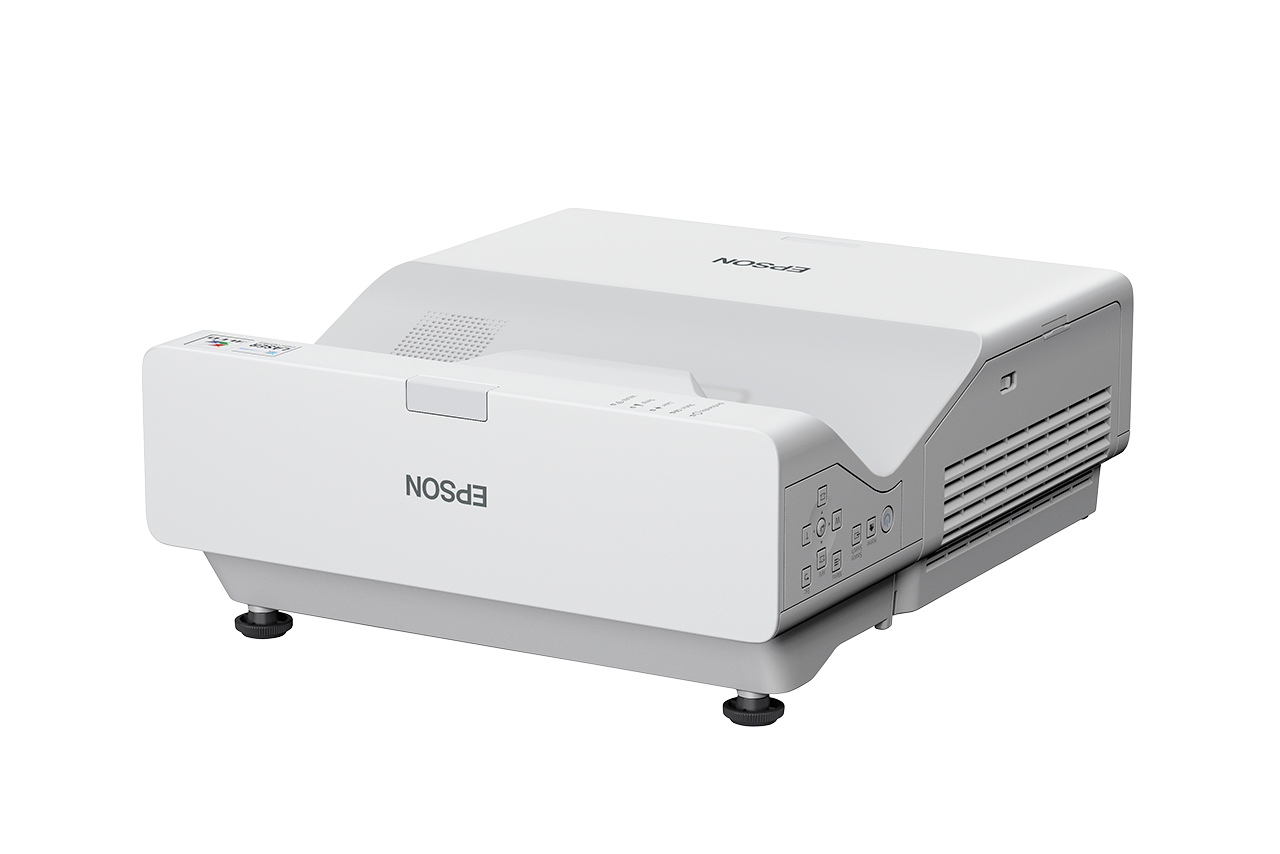

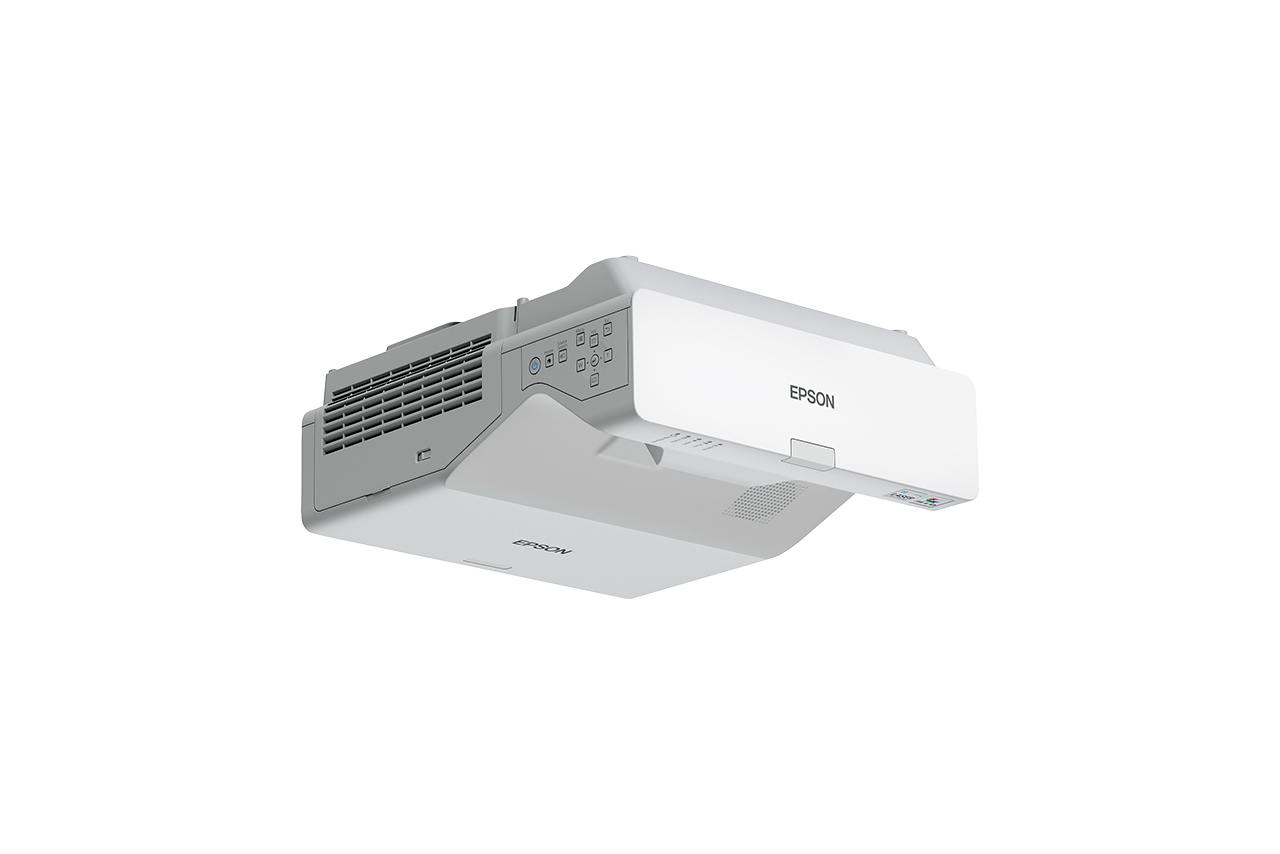

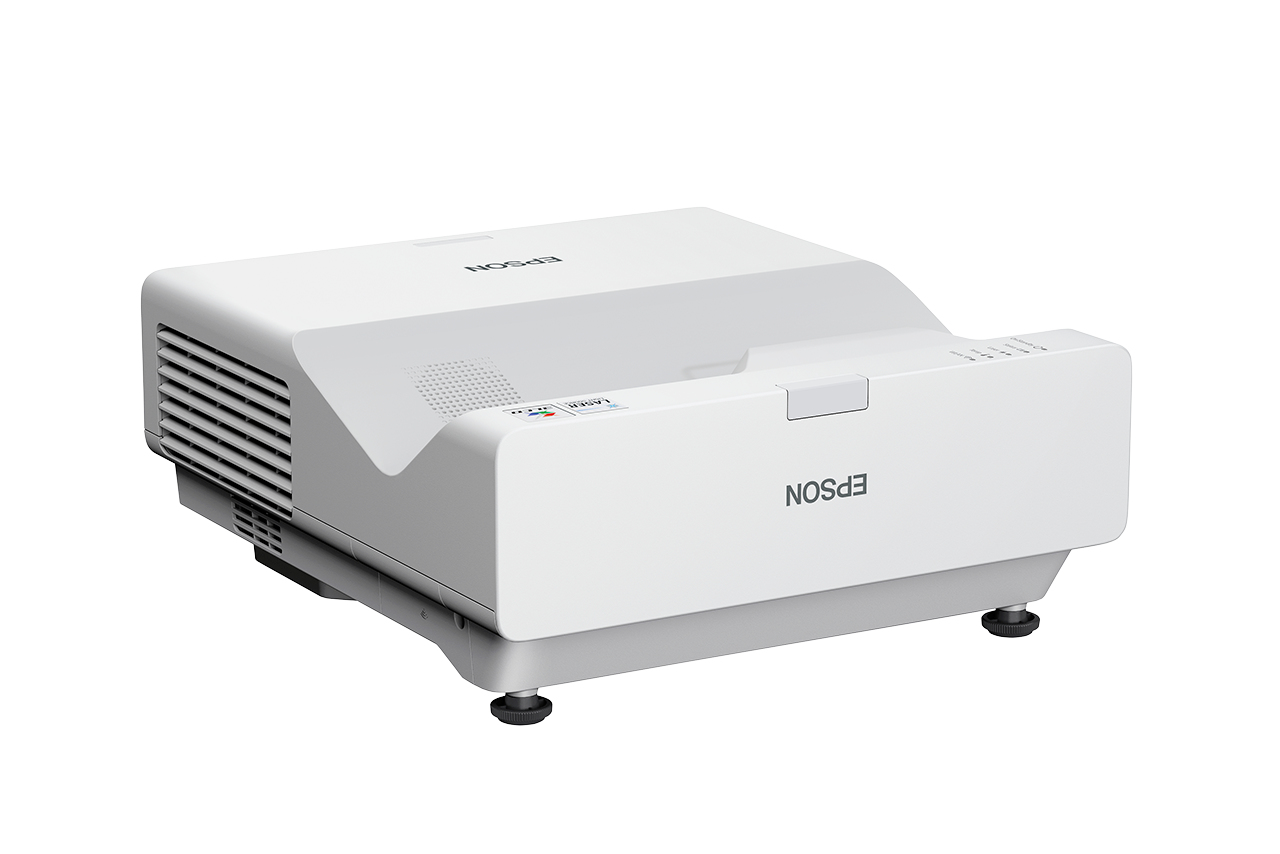

Epson EB-770Fi
Epson

EB-770Fi

Model EB-770FiPart no. V11HA78080EAN 8715946715230

98 specifications
  • Noise37 dB
  • TypeUltra short throw projector
  • Weight6 kg
  • ColourWhite
  • Projector brightness4100 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
37 dB
Type
Ultra short throw projector
Weight
6 kg
Colour
White
Projector brightness
4100 ANSI lumens
Light source type
Laser
Brand
Epson
Model
EB-770Fi
Part numbers
V11HA78080, V11HA78053
EAN / UPC
8715946715230, 9314020636165
Also known as
Epson EB-770Fi

Specifications

98 specifications in 17 groups

Projector

Projector brightness4100 ANSI lumens
Projection technology3LCD
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)2500000:1
Native aspect ratio16:9
Screen size compatibility1524 - 2540 mm (60 - 100")
Contrast ratio (dynamic)5000000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)2800 ANSI lumens
Vertical scan range192 - 240 Hz
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
Heat dissipation895 BTU/h

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusManual
Focal length range3.7 mm
Fixed focal length3.7 mm
F-number (relative aperture)1.6
Zoom capabilityYes
Zoom ratio1.35:1
Throw ratio0.25 - 0.35:1

Video

Analog signal format systemNot supported
Full HDYes
3DNo
Video colour modesBlackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity3
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
USB 2.0 ports quantity4
USB 2.0 Type-A ports quantity2
USB 2.0 Type-B ports quantity2
Microphone inYes
Serial interface typeRS-232C

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Storage

Card reader integratedNo

Features

InteractiveYes
Interactive input supportedInteractive pen/Touch
Noise level37 dB
Noise level (economic mode)27 dB
Country of originPhilippines
Password protectionYes

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeUltra short throw projector
Market positioningPresentation
Product colourWhite
PlacementCeiling, Desktop, Wall
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)197 W
Power consumption (standby)0.5 W
Power consumption (PowerSave)199 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage100 - 240 V

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight6 kg
Width356 mm
Depth395 mm
Height133 mm
Package width450 mm
Package depth485 mm
Package height325 mm
Package weight9.15 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, USB
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management

Technical details

Other features21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and verti
Power consumption197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.1 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.1 m
Pallet length (UK)120 cm
Products per pallet12 pc(s)
Products per pallet (UK)24 pc(s)
Products per pallet layer2 pc(s)
Products per pallet layer (UK)4 pc(s)

Other features

InterfaceUSB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touc
Security featuresKensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Supported network protocolsHTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Option typeAir filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Box contents2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Control panel0.62 inch with C2 Fine
