Epson EB-760Wi
Epson

EB-760Wi

Model EB-760WiPart no. V11HA80080EAN 8715946715261

102 specifications
  • Noise37 dB
  • Weight6 kg
  • ColourWhite
  • Projector brightness4100 ANSI lumens
  • Light source typeLaser
  • FocusManual
See all specifications

Overview

Noise
37 dB
Weight
6 kg
Colour
White
Projector brightness
4100 ANSI lumens
Light source type
Laser
Focus
Manual
Brand
Epson
Model
EB-760Wi
Part numbers
V11HA80080, V11HA80053
EAN / UPC
8715946715261
Also known as
Epson EB-760Wi

Specifications

102 specifications in 18 groups

Projector

Projector brightness4100 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)2500000:1
Native aspect ratio16:10
Smart projectorNo
Screen size compatibility1346.2 - 2540 mm (53 - 100")
Contrast ratio (dynamic)5000000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)2800 ANSI lumens
Vertical scan range100 - 120 Hz
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
Matrix size1.5 cm (0.59")
Heat dissipation895 BTU/h

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusManual
Focal length range3.7 mm
Fixed focal length3.7 mm
F-number (relative aperture)1.6
Zoom capabilityYes
Zoom ratio1.35:1
Throw ratio0.27 - 0.37:1

Video

Analog signal format systemNot supported
Full HDNo
3DNo
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB
Video processing10 bit

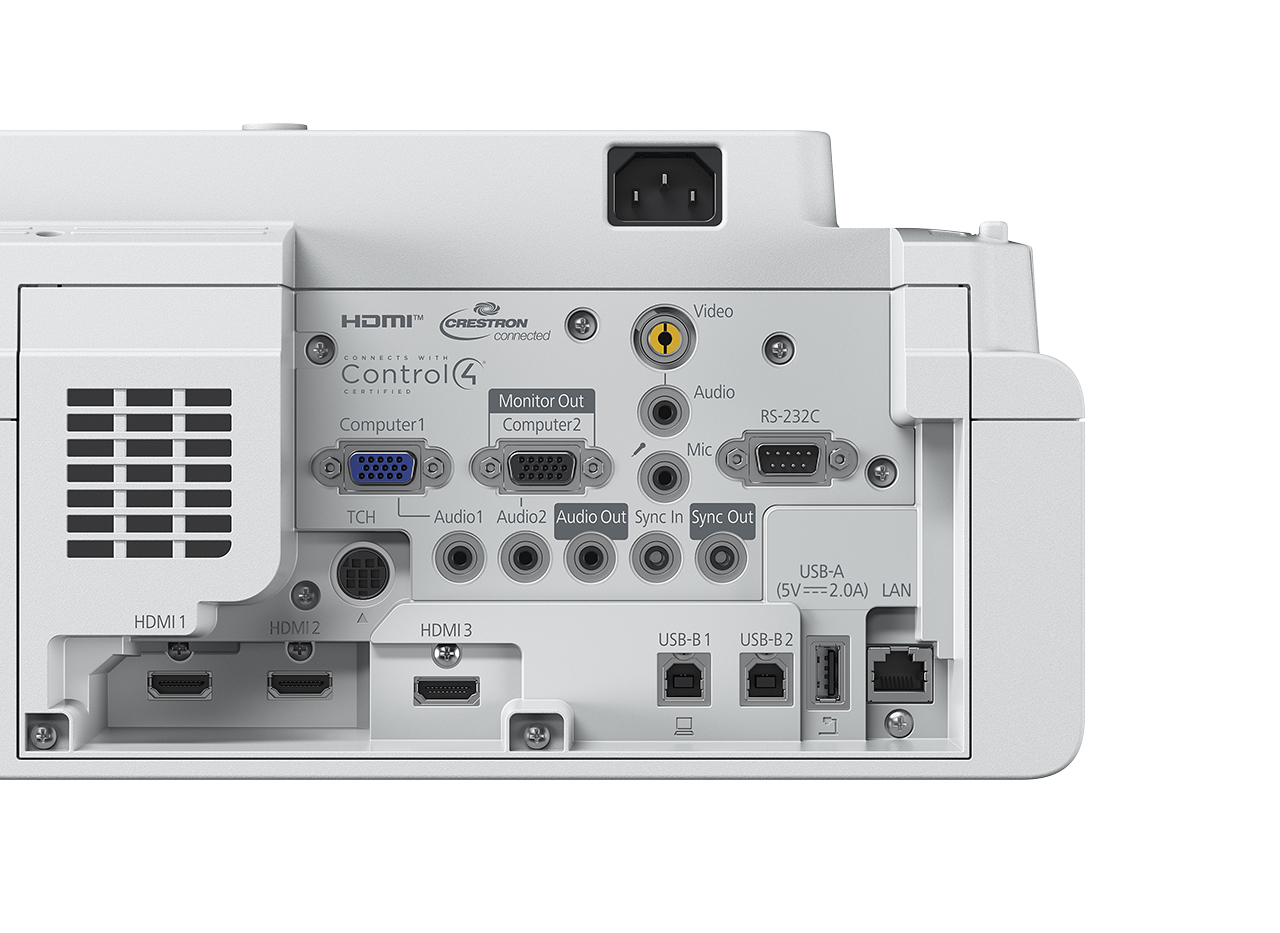

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity3
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
Service port typeUSB Type-B
USB 2.0 ports quantity2
Headphone outputs3
Microphone inYes
Serial interface typeRS-232C

Network

Smart TVNo
Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
MiracastYes

Storage

Card reader integratedNo

Features

InteractiveYes
Noise level37 dB
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Air filterYes
Country of originPhilippines
Password protectionYes

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Market positioningPresentation
Product colourWhite
PlacementCeiling, Desktop, Wall
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)197 W
Power consumption (economy mode)141 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight6 kg
Width356 mm
Depth395 mm
Height133 mm
Package width450 mm
Package depth490 mm
Package height325 mm
Package weight9.17 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, USB
Interactive pen includedYes
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management

Technical details

Mobile app supportYes
Other featuresA/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction,
Power consumption197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.1 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.1 m
Pallet length (UK)120 cm
Products per pallet12 pc(s)
Products per pallet (UK)24 pc(s)
Products per pallet layer2 pc(s)
Products per pallet layer (UK)4 pc(s)

Other features

InterfaceUSB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input
Security featuresKensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Supported network protocolsHTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Option typeAir filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Box contents2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Control panel0.59 inch with C2 Fine
