EB-755F
Model EB-755FPart no. V11HA08640EAN 8715946681979
97 specifications
- Noise36 dB
- TypeUltra short throw projector
- Weight5.7 kg
- ColourBlack
- Projector brightness3600 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Ultra short throw projector
- Weight
- 5.7 kg
- Colour
- Black
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-755F
- Part number
- V11HA08640
- EAN / UPC
- 8715946681979
- Also known as
- Epson EB-755F
Specifications
97 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1651 - 3048 mm (65 - 120") |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.7 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2500 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Colour light output | 3600 ANSI lumens |
| Keystone correction, horizontal | ±3° |
| Keystone correction, vertical | ±3° |
| Matrix size | 1.55 cm (0.61") |
| White light output | 3600 ANSI lumens |
| Heat dissipation | 867 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.26 - 0.36:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Video processing | 10 bit |

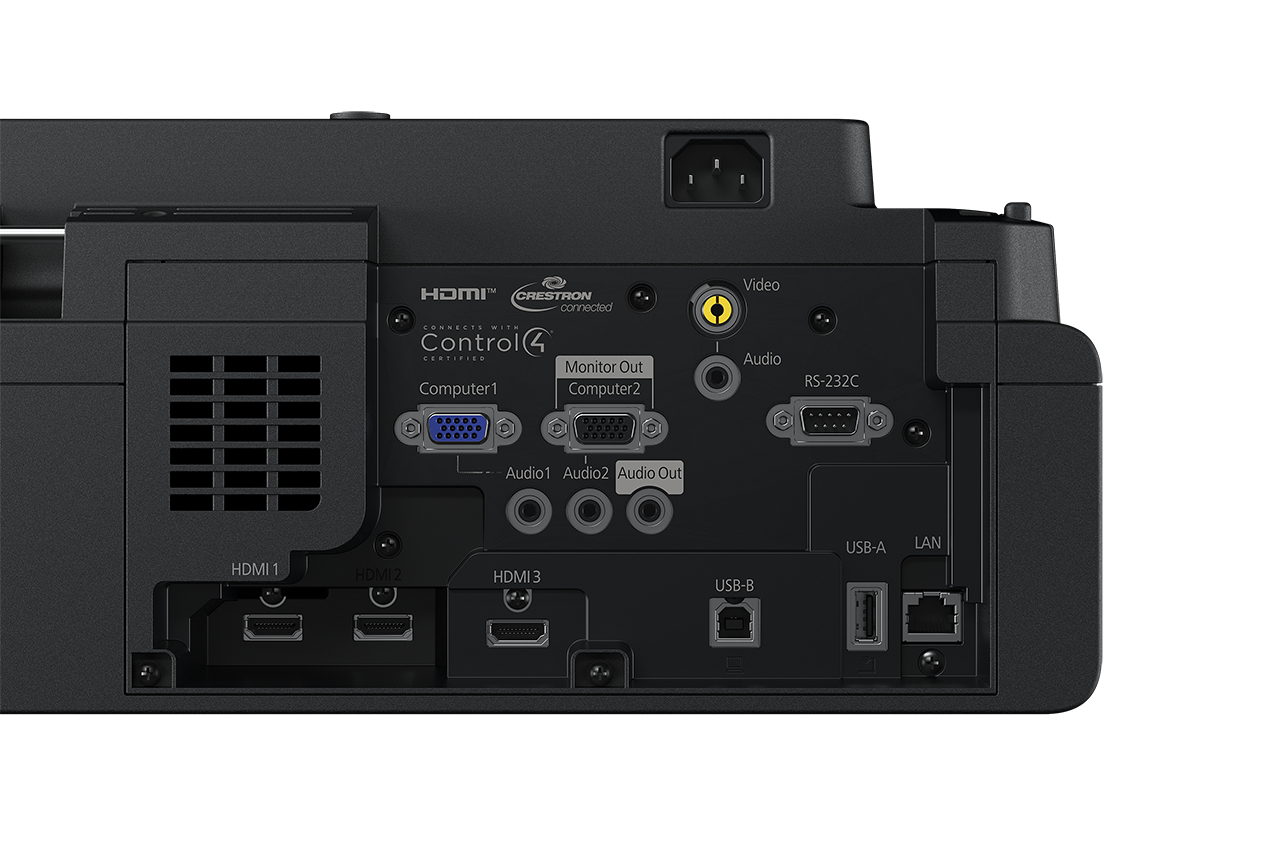

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| HDMI connector type | Full-size |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 26 dB |
| Country of origin | Philippines |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | Black |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 255 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 197 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.7 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Package width | 442 mm |
| Package depth | 475 mm |
| Package height | 313 mm |
| Package weight | 8.23 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| WLAN adapter included | Yes |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | Yes |
| Other features | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light sour |
| Power consumption | 200 Watt (Normal On-Mode), 255 Watt (Normal Peak-mode), 197 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| USB display function | 2 in 1: Image/ Sound |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 12 pc(s) |
| Products per pallet (UK) | 24 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x) |
| Security features | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | Wireless LAN unit |
| Box contents | Power cable, Remote control incl. batteries |
| Control panel | 0.61 inch with C2 Fine |
