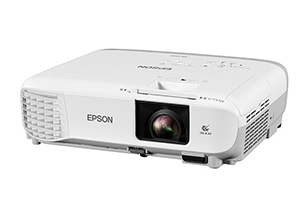

Epson EB-685WT data projector Wall-mounted projector 3500 ANSI lumens 3LCD WXGA (1280x800) White

Epson EB-685WT data projector Wall-mounted projector 3500 ANSI lumens 3LCD WXGA (1280x800) White

Model EB-685WT

50 specifications
  • TypeWall-mounted projector
  • Weight5.8 kg
  • ColourWhite
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Type
Wall-mounted projector
Weight
5.8 kg
Colour
White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Epson
Model
EB-685WT
Part number
EB-685WT
Also known as
Epson EB-685WT data projector Wall-mounted projector 3500 ANSI lumens 3LCD WXGA (1280x800) White

Specifications

50 specifications in 13 groups

Projector

Projector brightness3500 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)14000:1
Number of colours1.073 billion colours

Light source

Light source typeLamp
Lamp typeUHE
Lamp power250 W

Lens system

FocusManual
Fixed focal length3.7 mm
Zoom capabilityYes
Zoom typeAuto
Magnification1.35x

Video

Analog signal format systemNTSC, PAL, SECAM
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Supported video modes480i, 480p, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity3
USB 2.0 ports quantity1
USB 2.0 Type-B ports quantity1
Audio (L/R) in3
Audio (L/R) out1
Serial interface typeRS-232
Mobile High-Definition Link (MHL)Yes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeWall-mounted projector
Product colourWhite
PlacementWall

Power

Power sourceAC
Power consumption (typical)373 W
Power consumption (standby)0.23 W
Power consumption (PowerSave)324 W
Power consumption (network standby)2.2 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight5.8 kg
Width367 mm
Depth400 mm
Height149 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, USB
ManualYes
Mounting brackets includedYes
Quick start guideYes

Other features

RS-232 ports1
