Epson EB-5510 Standard throw projector 5500 ANSI lumens 3LCD XGA (1024x768) White

Epson EB-5510 Standard throw projector 5500 ANSI lumens 3LCD XGA (1024x768) White

Model EB-5510Part no. V11H828040EAN 8715946624372

108 specifications
  • Noise38 dB
  • TypeStandard throw projector
  • Weight6.7 kg
  • ColourWhite
  • Projector brightness5500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Standard throw projector
Weight
6.7 kg
Colour
White
Projector brightness
5500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-5510
Part numbers
V11H828040, EB-5510
EAN / UPC
8715946624372, 4988617276673
Also known as
Epson EB-5510 Standard throw projector 5500 ANSI lumens 3LCD XGA (1024x768) White

Specifications

108 specifications in 16 groups

Projector

Projector brightness5500 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)15000:1
Native aspect ratio4:3
Supported aspect ratios16:10, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Number of colours1.073 billion colours
Projector brightness (economic mode)3700 ANSI lumens
Uniformity87%
Horizontal scan range15 - 92 kHz
Vertical scan range50 - 85 Hz
Colour light output5500 ANSI lumens
Keystone correction, horizontal30°
Keystone correction, vertical30°
Matrix size1.6 cm (0.63")
Matrix type3-panel (p-Si TFT active)
White light output5500 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power300 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range16.72 - 33.47 mm
Aperture range (F-F)1.5 - 2.15
Zoom capabilityYes
Zoom typeManual
Optical zoom2x
Throw ratio1.27 - 2.59:1
Horizontal lens shift range-38 - 38%
Vertical lens shift range-58 - 58%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
3DNo
3D ReadyNo
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 642, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (H
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video processing10 bit

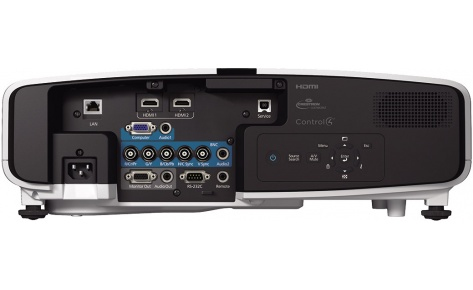

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
DisplayPorts quantity0
S-Video inputs quantity0
HDBaseT portNo
USB 2.0 ports quantity1
USB 2.0 Type-B ports quantity1
Microphone inNo
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
PC in (D-Sub)Yes
Remote (IR) output1
Composite video out0
BNC input ports5
12V triggerNo
Mobile High-Definition Link (MHL)No
AC (power) inYes

Network

Smart TVNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100 Mbit/s
Wi-FiNo
MiracastNo
BluetoothNo

Storage

Card reader integratedNo

Features

Noise level38 dB
Noise level (economic mode)28 dB
Country of originChina

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourWhite
PlacementCeiling
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)462 W
Power consumption (standby)3 W
Power consumption (economy mode)324 W
AC input voltage100 - 240 V
AC input frequency50 / 60 Hz

Operational conditions

Operating temperature (T-T)0 - 45 °C

Weight & dimensions

Weight6.7 kg
Width472 mm
Depth354 mm
Height159 mm
Package width550 mm
Package depth630 mm
Package height235 mm
Package weight10.3 kg

Packaging content

Remote control includedYes
Remote control typeIR

Logistics data

Quantity per pack1 pc(s)
Pallet gross height131 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)131 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet16 pc(s)
Products per pallet (UK)16 pc(s)
Products per pallet layer2 pc(s)
Products per pallet layer (UK)2 pc(s)

Other features

RS-232 ports1
