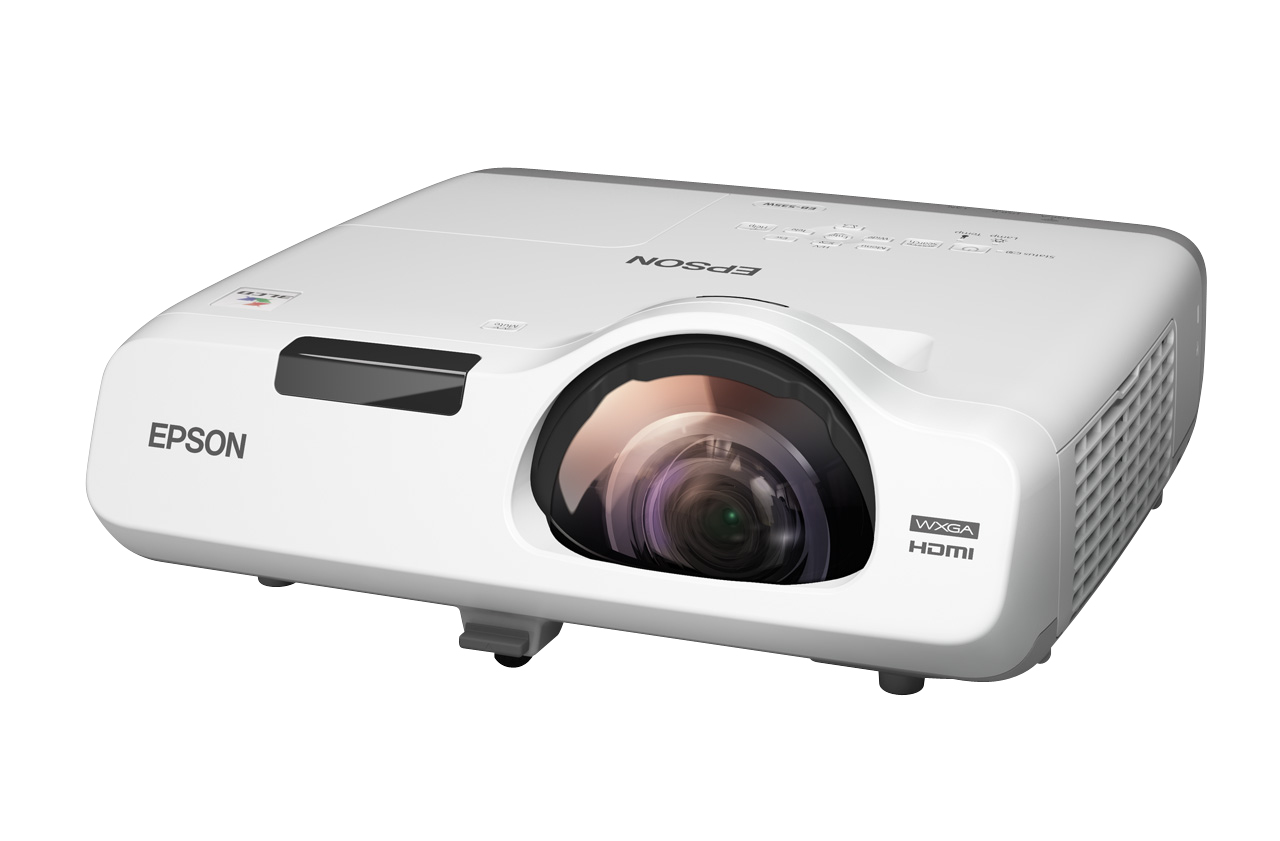

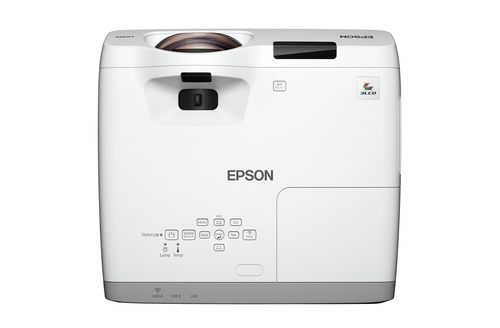

Epson EB-535W Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Epson EB-535W Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Model EB-535WEAN 4988617195448

92 specifications
  • Noise37 dB
  • TypeShort throw projector
  • Weight3.7 kg
  • ColourWhite, Grey
  • Projector brightness3400 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Short throw projector
Weight
3.7 kg
Colour
White, Grey
Projector brightness
3400 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-535W
Part numbers
EB-535W, V11H671040, V11H671041, V11H671053
EAN / UPC
4988617195448, 4053162598751, 8715946541440, 8715946541457 +1 more
Also known as
Epson EB-535W Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Specifications

92 specifications in 16 groups

Projector

Projector brightness3400 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)16000:1
Native aspect ratio16:10
Screen size compatibility1346.2 - 2946.4 mm (53 - 116")
Projection distance0.5 - 1.2 m
Number of colours1.07 billion colours
Projector brightness (economic mode)1900 ANSI lumens
Vertical scan range50 - 85 Hz
Colour light output3400 ANSI lumens
Keystone correction, horizontal-15 - 15°
Keystone correction, vertical-15 - 15°
White light output3400 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power215 W

Lens system

FocusManual
Focal length range6.4 mm
Fixed focal length6.4 mm
Zoom typeAuto
Zoom ratio1.35:1
Throw ratio0.48 - 0.65:1

Video

Analog signal format systemNTSC, NTSC 4.43
Full HDNo
HD-ReadyYes
3DNo
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes

Features

Noise level37 dB
Noise level (economic mode)29 dB
Country of originChina
Password protectionYes

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningPresentation
Product colourWhite, Grey
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)298 W
Power consumption (standby)0.28 W
Power consumption (PowerSave)221 W
Power consumption (economy mode)221 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight3.7 kg
Width344 mm
Depth315 mm
Height94 mm
Package width386 mm
Package depth497 mm
Package height215 mm
Package weight5.86 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
ManualYes
WLAN adapter includedYes
Bundled softwareiProjection, Epson Projector Management

Technical details

Sustainability certificatesTCO
USB display function3 in 1: Image / Mouse / Sound

Logistics data

Quantity per pack1 pc(s)
Harmonized System (HS) code85286200
Pallet gross weight0 g
Pallet weight (UK)0 g
Products per pallet40 pc(s)
Products per pallet (UK)60 pc(s)
Products per pallet layer4 pc(s)
Products per pallet layer (UK)6 pc(s)

Other features

RS-232 ports1
