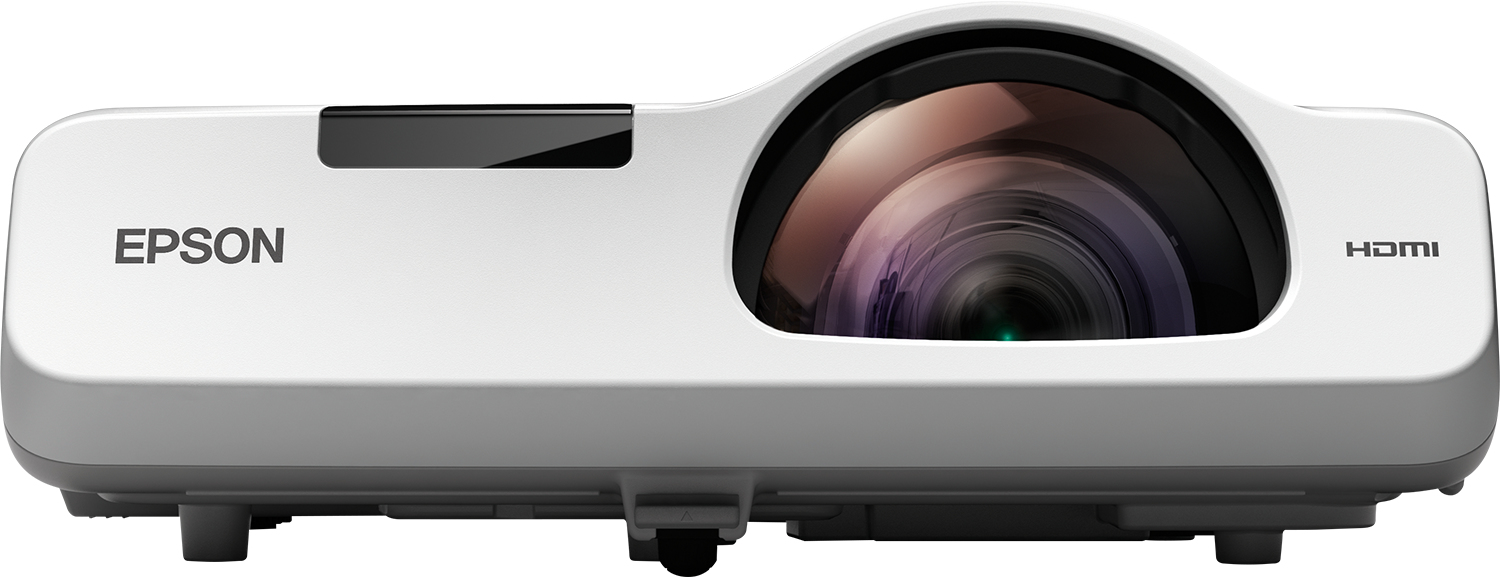

Epson EB-520 Short throw projector 3LCD XGA (1024x768) White

Epson EB-520 Short throw projector 3LCD XGA (1024x768) White

Model EB-520Part no. V11H674041EAN 5054629663660

78 specifications
  • Noise35 dB
  • TypeShort throw projector
  • Weight3.7 kg
  • ColourWhite
  • Projection technology3LCD
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Short throw projector
Weight
3.7 kg
Colour
White
Projection technology
3LCD
Light source type
Lamp
Brand
Epson
Model
EB-520
Part numbers
V11H674041, V11H674040
EAN / UPC
5054629663660, 4053162598768, 8715946541501, 8715946541518
Also known as
Epson EB-520 Short throw projector 3LCD XGA (1024x768) White

Specifications

78 specifications in 15 groups

Projector

Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)16000:1
Native aspect ratio4:3
Screen size compatibility1270 - 2743.2 mm (50 - 108")
Projection distance0.5 - 1.3 m
Number of colours1.073 billion colours
Vertical scan range50 - 85 Hz
Colour light output2700 ANSI lumens
Keystone correction, horizontal15°
Keystone correction, vertical15°
White light output2700 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power200 W

Lens system

FocusManual
Focal length range0 - 6.4 mm
Zoom ratio1.35:1
Throw ratio0.55:1

Video

Full HDNo
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Audio (L/R) out1
Headphone outputs2
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes

Features

Noise level35 dB
Noise level (economic mode)28 dB
Country of originChina

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningPresentation
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Power

Power consumption (typical)278 W
Power consumption (standby)0.28 W
Power consumption (PowerSave)219 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight3.7 kg
Width344 mm
Depth315 mm
Height94 mm
Package width385 mm
Package depth490 mm
Package height210 mm
Package weight5.86 kg

Packaging content

Remote control includedNo

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.25 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.25 m
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet40 pc(s)
Products per pallet (UK)60 pc(s)
Products per pallet layer4 pc(s)
Products per pallet layer (UK)6 pc(s)

Other features

RS-232 ports1
