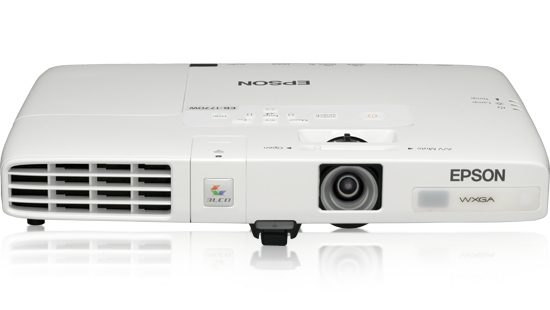

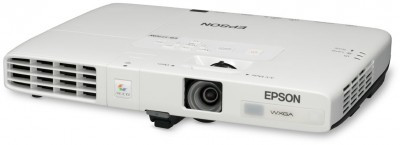

Epson EB-1770W

Epson EB-1770W

Model EB-1770WPart no. V11H362040EAN 8715946470344

86 specifications
  • Noise40 dB
  • TypeStandard throw projector
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Noise
40 dB
Type
Standard throw projector
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Epson
Model
EB-1770W
Part numbers
V11H362040, V11H362040LA, V11H362041
EAN / UPC
8715946470344, 8715946470337, 8715946481074
Also known as
Epson EB-1770W

Specifications

86 specifications in 14 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyLCD
Contrast ratio (typical)2000:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.35 - 1.62 m
Projector brightness (economic mode)1700 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
Matrix size1.5 cm (0.59")

Light source

Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Lamp typeUHE
Lamp power230 W

Lens system

FocusManual
Focal length range13.52 - 16.22 mm
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Optical zoom1.2x
Throw ratio1.04 - 1.26:1
Offset100%

Video

Full HDNo
3DNo
3D ReadyNo
Supported graphics resolutions1280 x 800 (WXGA), 1680 x 1050 (WSXGA+)

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
USB 2.0 ports quantity2
Microphone inYes
USB connector typeUSB Type-A, USB Type-B
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Features

Noise level40 dB
Noise level (economic mode)30 dB
Country of originJapan

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W
TV tuner integratedNo
Image formats supportedJPG

Design

Product typeStandard throw projector
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington

Power

Power consumption (typical)304 W
Power consumption (standby)0.4 W
Power consumption (PowerSave)203 W
Power consumption (economy mode)203 W
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width210 mm
Depth292 mm
Height44 mm
Package width284 mm
Package depth435 mm
Package height121 mm
Package weight3.48 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedUSB, VGA
Carrying caseYes
Bundled softwareEasyMP Network Projection, EasyMP Slide Converter, EasyMP Monitor

Logistics data

Quantity per pack1 pc(s)
Pallet gross height2.21 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.21 m
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet102 pc(s)
Products per pallet (UK)136 pc(s)
Products per pallet layer6 pc(s)
Products per pallet layer (UK)8 pc(s)

Other features

Aspect ratio16:10
Dimensions (WxDxH)210 x 292 x 44 mm
InterfaceUSB 2.0 Type B, USB 2.0 Type A, WLAN (optional), VGA in, HDMI in, Composite in, Component in (optional), Stereo mini jack audio in
Lens systemF - 1.58 – 1.7
RS-232 ports0
Special featuresPC Free, JPEG Viewer
Digital keystone correctionvertical ± 45°, Manual horizontal ± 30°
