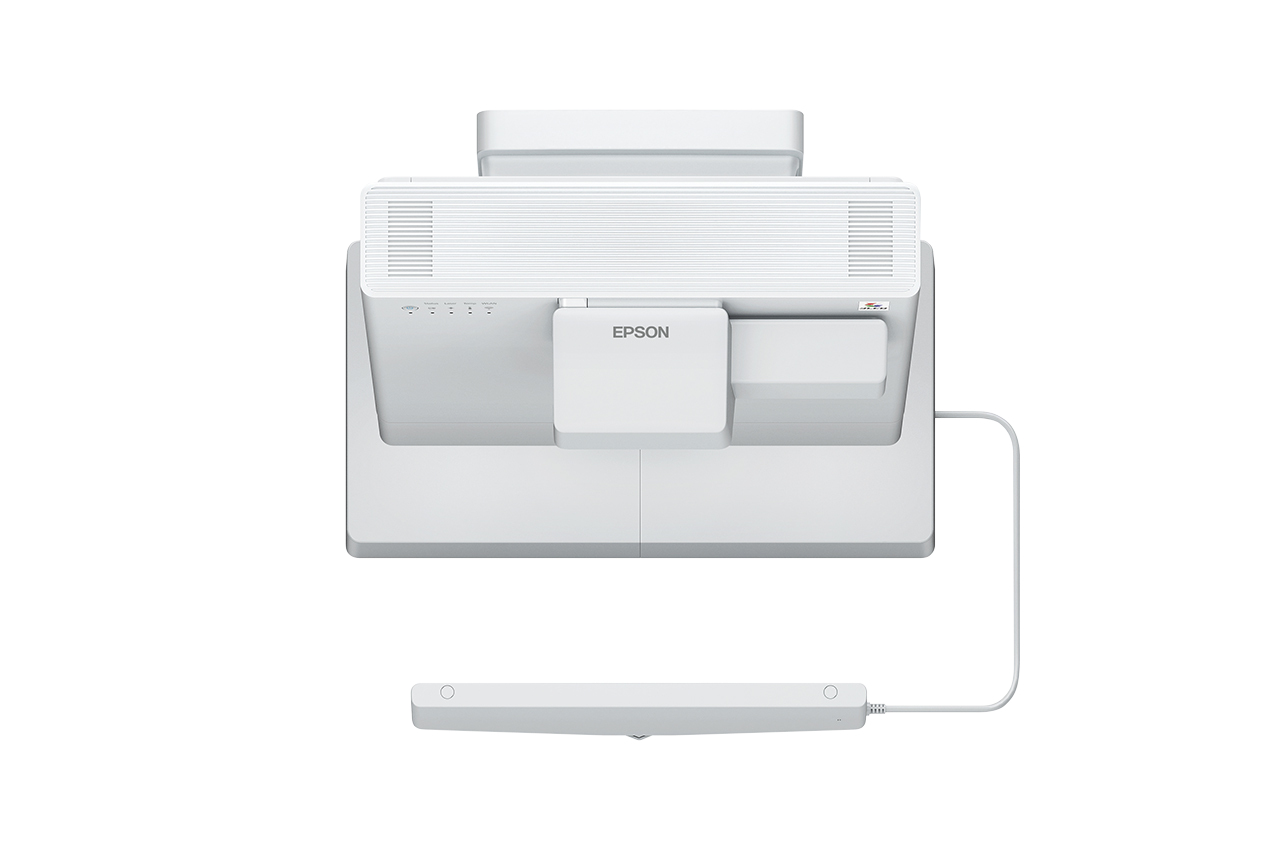

EB-1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Model EB-1485FiPart no. V11H919040EAN 9314020631153
109 specifications
- Noise36 dB
- TypeUltra short throw projector
- Weight9.3 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Ultra short throw projector
- Weight
- 9.3 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EB-1485Fi
- Part numbers
- V11H919040, V11H919041, V11H919053
- EAN / UPC
- 9314020631153, 8715946674070, 8715946673752
- Also known as
- Epson EB-1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
109 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 1651 - 2540 mm (65 - 100") |
| Projection distance | 0 - 0.78 m |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.6 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3500 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix size | 1.57 cm (0.62") |
| Heat dissipation | 1244 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 3.9 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode |
| Video processing | 10 bit |
| Adjustable colour temperature | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Interactive input supported | Interactive pen/Touch |
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| Screen mirroring | Yes |
| Air filter | Yes |
| Composite sync | Yes |
| Country of origin | China |
| Password protection | Yes |
| Compatible operating systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 366 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 262 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 2000 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.3 kg |
| Width | 458 mm |
| Depth | 375 mm |
| Height | 210 mm |
| Package width | 472 mm |
| Package depth | 590 mm |
| Package height | 640 mm |
| Package weight | 27.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
| Mounting brackets included | Yes |
| WLAN adapter included | Yes |
| Bundled software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | TCO |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
Other features
| Specification | Value |
|---|---|
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
