CO-FH02
Model CO-FH02Part no. V11HA85040EAN 8715946706832
92 specifications
- Noise37 dB
- OSAndroid TV
- Weight2.6 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- OS
- Android TV
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- CO-FH02
- Part numbers
- V11HA85040, V11HA85053
- EAN / UPC
- 8715946706832, 9314020634901
- Also known as
- Epson CO-FH02
Specifications
92 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 660.4 - 9931.4 mm (26 - 391") |
| Projection distance | 0.9 - 10.4 m |
| Projection distance (wide) | 0.9 - 10.4 m |
| Projection distance (tele) | 0.9 - 10.4 m |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 2000 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.57 cm (0.62") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 188 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 1.44 mm |
| Aperture range (F-F) | 1 - 1.35 |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.19 - 1.61:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Supported video modes | 1080p |
| Video colour modes | Cinema, Dynamic |
| Video processing | 8 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
| Country of origin | Philippines |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 214 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | -10 - 60% |
| Storage relative humidity (H-H) | 10 - 90% |

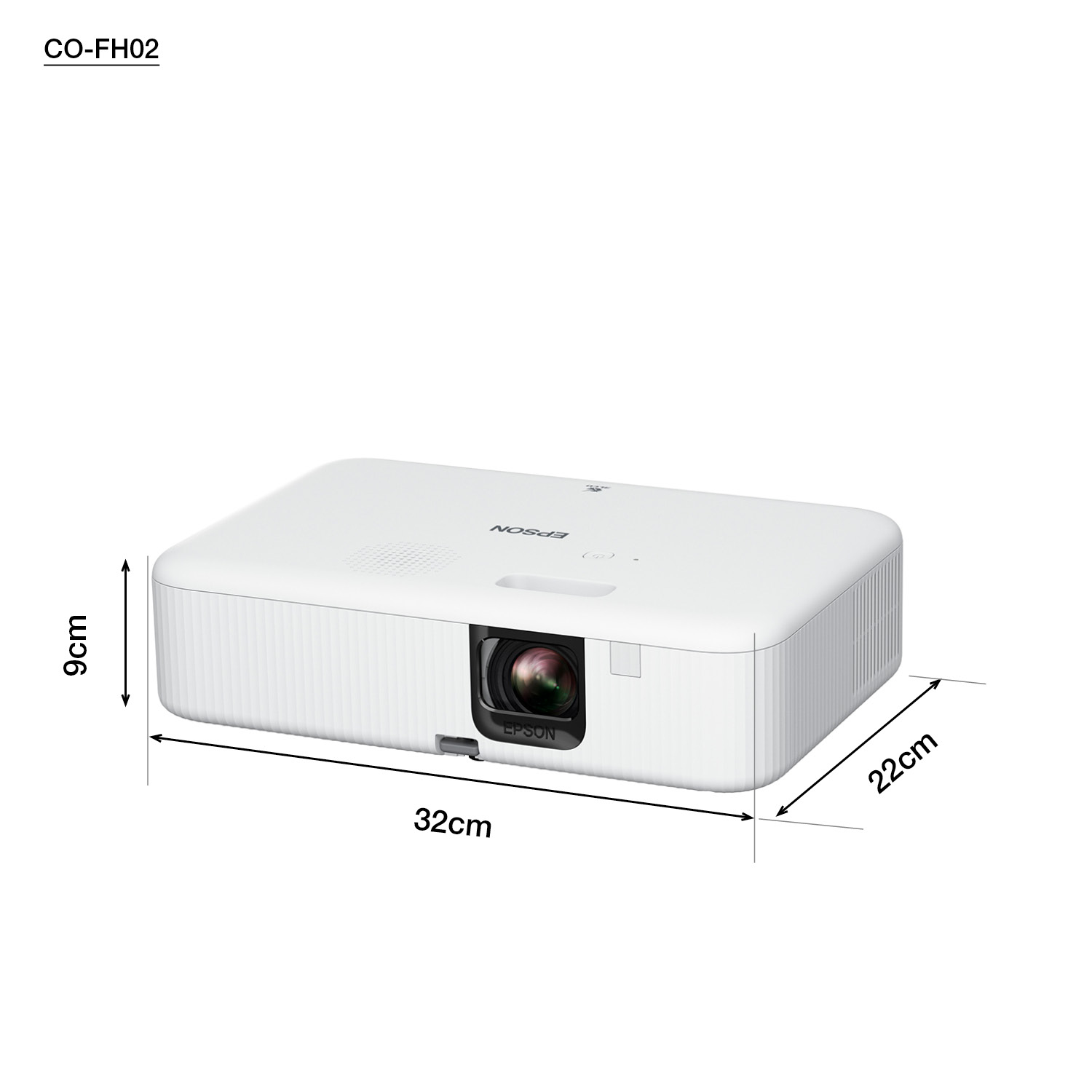

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 320 mm |
| Depth | 211 mm |
| Height | 87 mm |
| Package width | 332 mm |
| Package depth | 392 mm |
| Package height | 169 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | No |
| Other features | A/V mute, Automatic keystone correction, Built-in speaker, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner |
| Power consumption | 270 Watt (Normal Peak-mode), 214 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200000 |
| Pallet gross height | 2.52 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.52 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 84 pc(s) |
| Products per pallet (UK) | 84 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Standard |
| Interface | USB 2.0-A, USB 2.0, Powered USB, HDMI in, Wireless LAN IEEE 802.11a/b/g/n/ac |
| Security features | Kensington lock |

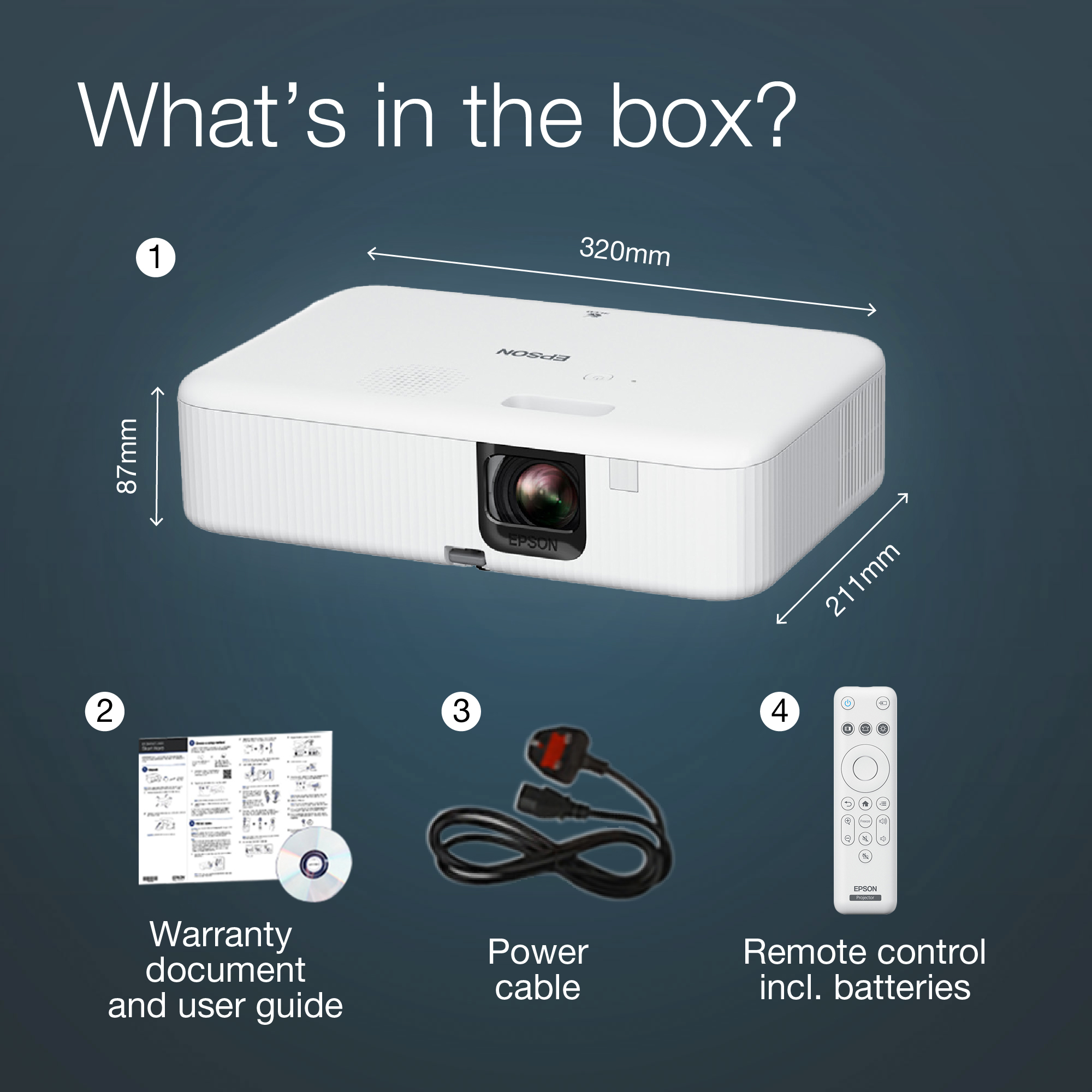

| Box contents | Android TV dongle, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card |
| Control panel | 0.62 inch with MLA (D10) |
