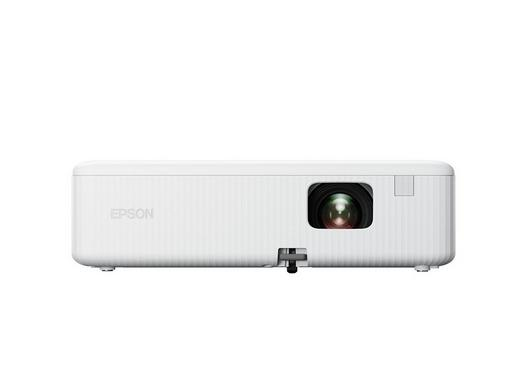

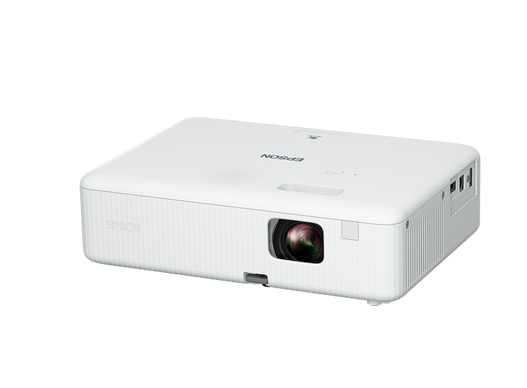

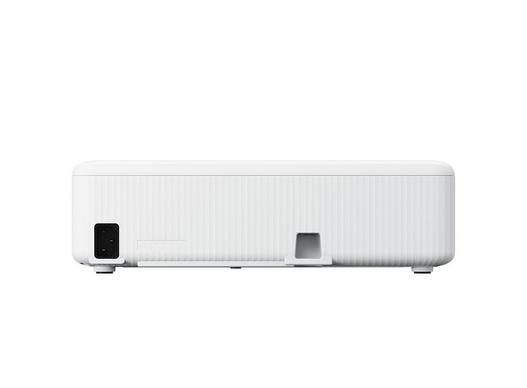

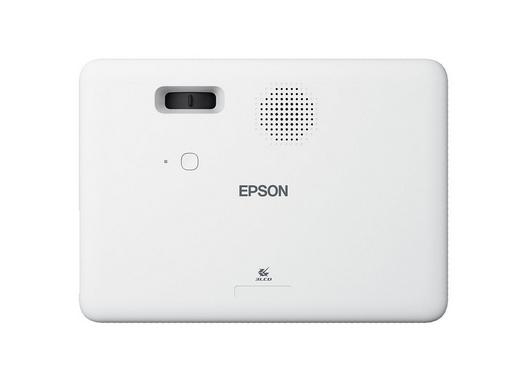

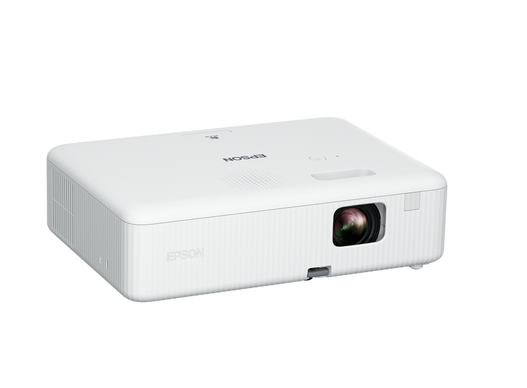

CO-FH01
Model CO-FH01Part no. V11HA84040EAN 8715946706825
79 specifications
- Noise38 dB
- Weight2.4 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 38 dB
- Weight
- 2.4 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- CO-FH01
- Part number
- V11HA84040
- EAN / UPC
- 8715946706825
- Also known as
- Epson CO-FH01
Specifications
79 specifications in 16 groups

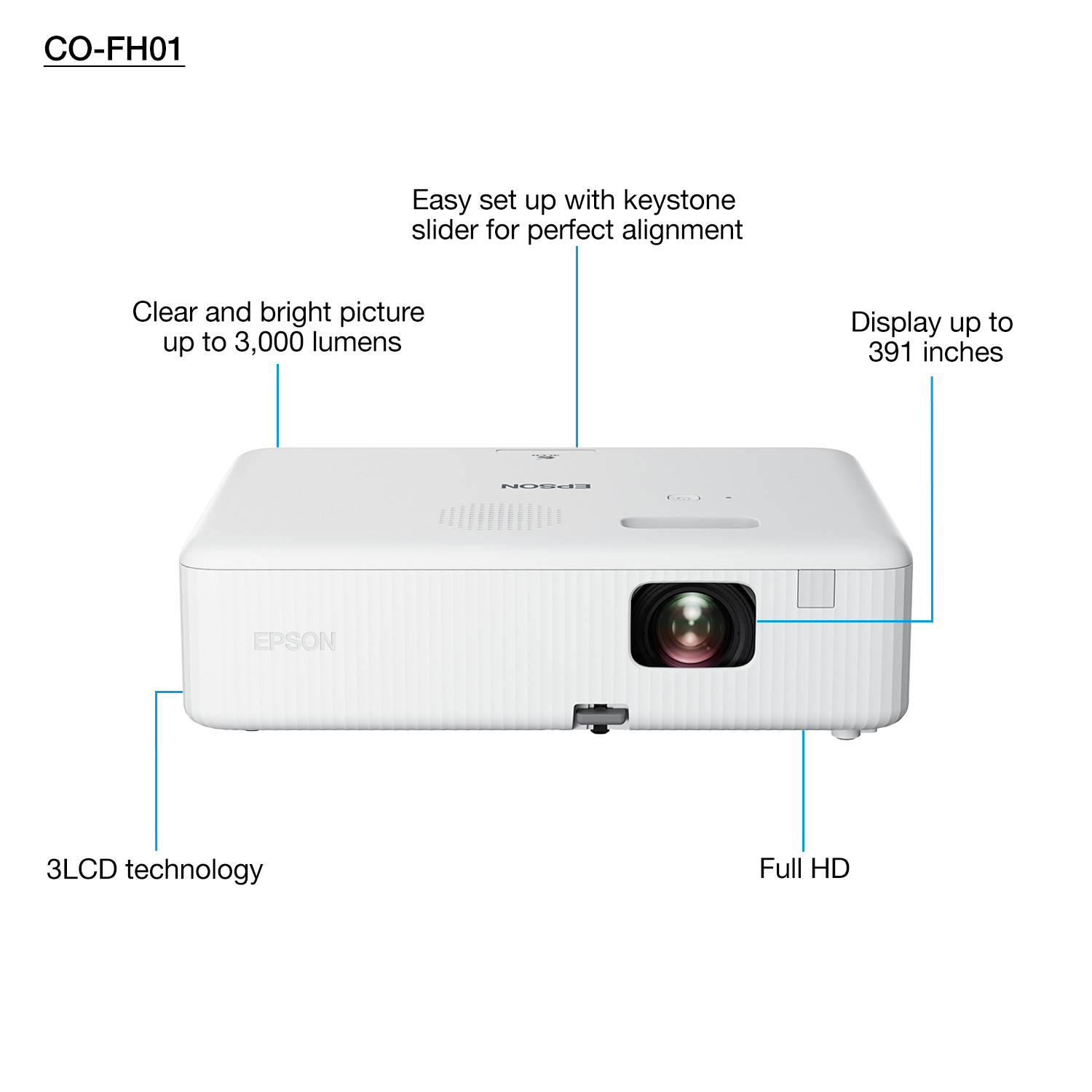

Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 660.4 - 9931.4 mm (26 - 391") |
| Projection distance (wide) | 0.9 - 10.4 m |
| Projection distance (tele) | 0.9 - 10.4 m |
| Projector brightness (economic mode) | 2000 ANSI lumens |
| Projector brightness (portrait mode) | 2000 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 188 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.19 - 1.61:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation, Vivid |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation |
| Video processing | 8 bit |

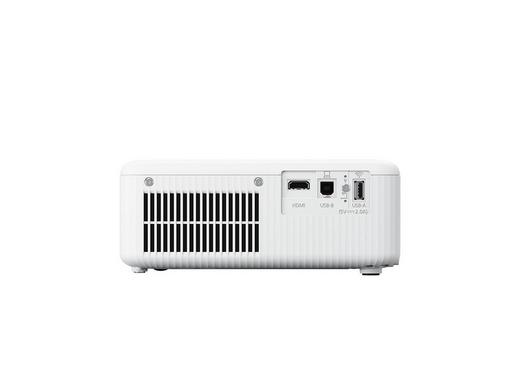

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 29 dB |
| Country of origin | Philippines |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 270 W |
| Power consumption (PowerSave) | 214 W |
| Power consumption (economy mode) | 214 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | -10 - 60% |
| Storage relative humidity (H-H) | 10 - 90% |

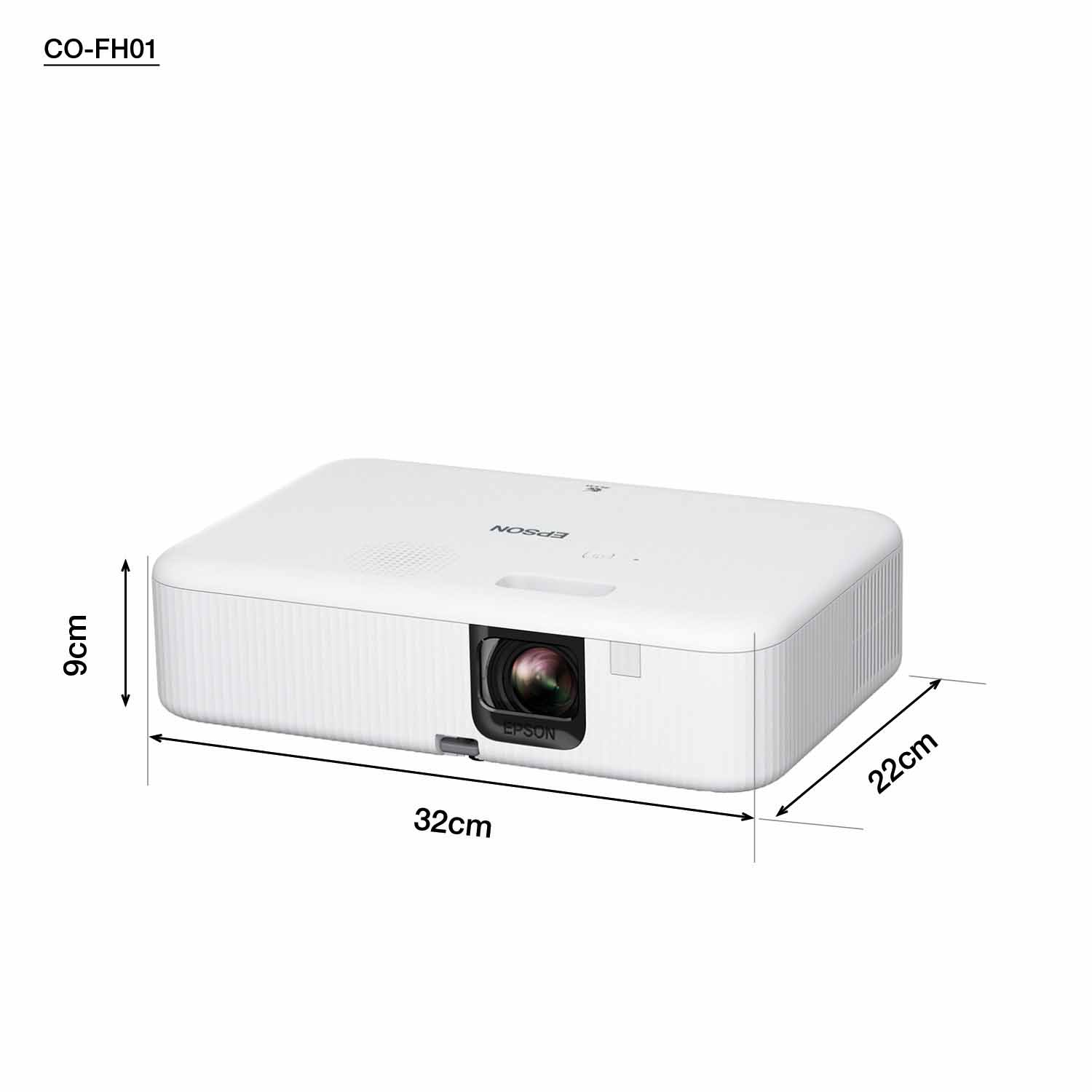

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 295 mm |
| Depth | 211 mm |
| Height | 87 mm |
| Package width | 320 mm |
| Package depth | 370 mm |
| Package height | 165 mm |
| Package weight | 3.69 kg |
Packaging content
| Specification | Value |
|---|---|

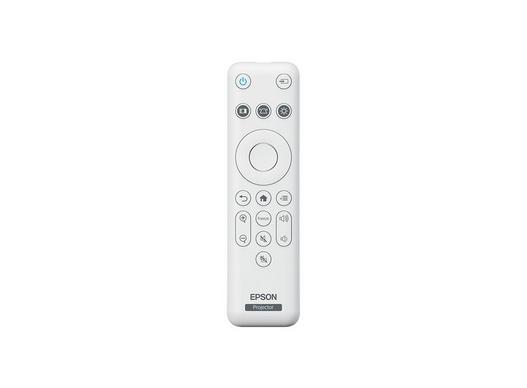

| Remote control included | Yes |
| Remote control type | IR |
Technical details
| Specification | Value |
|---|---|
| Mobile app support | No |
| Other features | A/V mute, Built-in speaker, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner |
| Power consumption | 270 Watt (Normal Peak-mode), 214 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Products per pallet | 72 pc(s) |
| Products per pallet (UK) | 108 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Products per pallet layer (UK) | 9 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Standard |
| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), HDMI in |
| Security features | Kensington lock, Padlock, Security cable hole |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card |
| Control panel | 0.59 inch with MLA (D10) |
