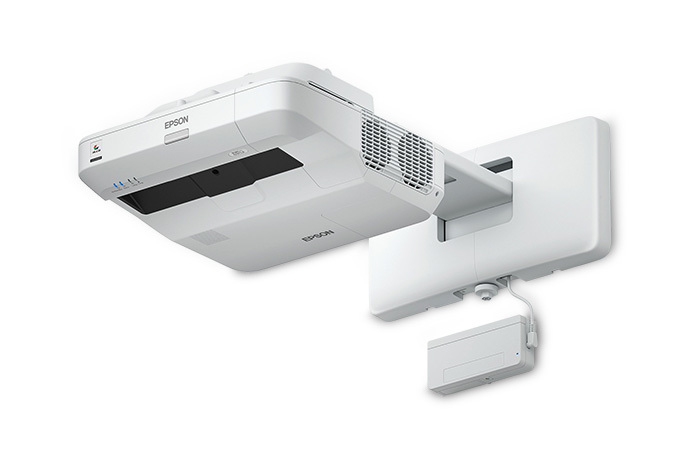

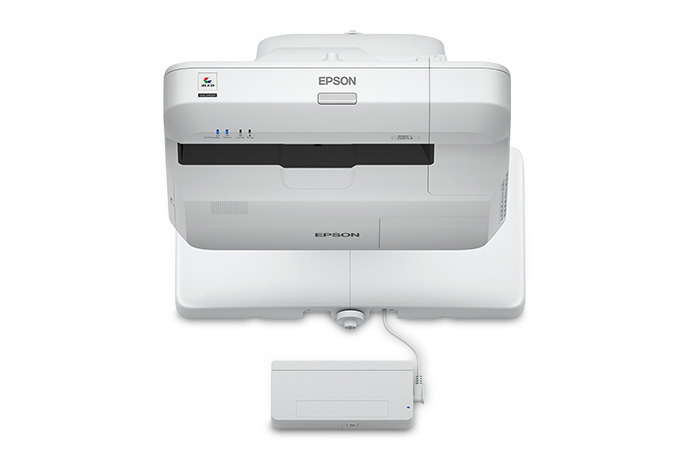

Epson BrightLink 697Ui

Epson BrightLink 697Ui

Model BrightLink 697UiPart no. V11H823022

65 specifications
  • Noise38 dB
  • TypeUltra short throw projector
  • Weight8.16 kg
  • ColourGrey, White
  • Projector brightness4400 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Ultra short throw projector
Weight
8.16 kg
Colour
Grey, White
Projector brightness
4400 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
BrightLink 697Ui
Part number
V11H823022
Also known as
Epson BrightLink 697Ui Ultra short throw projector 4400 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White

Specifications

65 specifications in 16 groups

Projector

Projector brightness4400 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Native aspect ratio16:10
Screen size compatibility1778 - 2540 mm (70 - 100")
Contrast ratio (dynamic)16000:1
Number of colours1.073 billion colours
Colour light output4400 ANSI lumens
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
White light output4400 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power300 W

Lens system

FocusManual
Fixed focal length4.2 mm
Zoom ratio1.35:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions1920 x 1200 (WUXGA)
Video processing10 bit

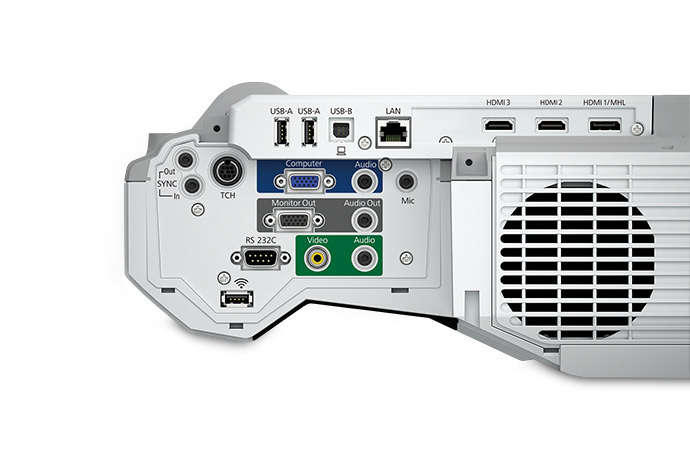

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity3
Composite video in1
USB 2.0 ports quantity2
Microphone inYes
Serial interface typeRS-232
Mobile High-Definition Link (MHL)Yes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Noise level38 dB
Noise level (economic mode)30 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeUltra short throw projector
Market positioningShort throw
Product colourGrey, White
PlacementWall
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)477 W
Power consumption (standby)0.22 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C

Weight & dimensions

Weight8.16 kg
Width474.9 mm
Depth447.1 mm
Height129.5 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, USB
ManualYes
Quick start guideYes

Other features

RS-232 ports1
