Epson Brightlink 685wi

Epson Brightlink 685wi

Model Brightlink 685wiPart no. V11H741522

75 specifications
  • Noise35 dB
  • TypeShort throw projector
  • Weight5.9 kg
  • ColourGrey, White
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Short throw projector
Weight
5.9 kg
Colour
Grey, White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
Brightlink 685wi
Part number
V11H741522
Also known as
Epson Brightlink 685wi Short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White

Specifications

75 specifications in 17 groups

Projector

Projector brightness3500 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)300:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 2540 mm (60 - 100")
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.6 m
Contrast ratio (dynamic)14000:1
Number of colours1.073 billion colours
Projector brightness (economic mode)2900 ANSI lumens
Colour light output3500 ANSI lumens
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
Matrix size1.5 cm (0.59")
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.1 kHz
White light output3500 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power250 W

Lens system

FocusManual
Zoom ratio1.35:1
Digital zoom1.35x
Throw ratio0.28:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DNo

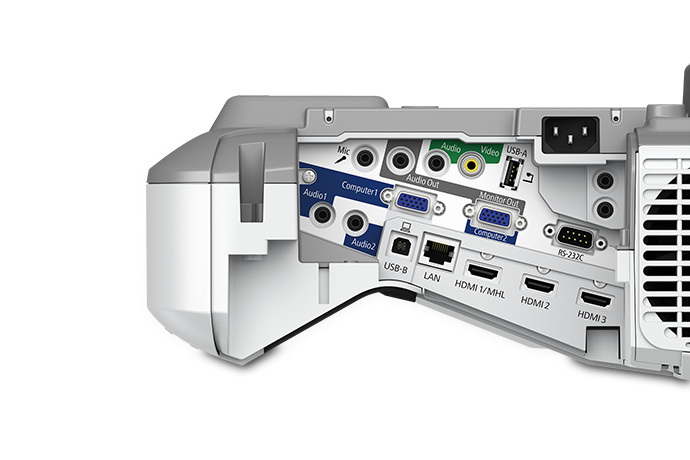

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity3
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity3
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232C
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level35 dB
Noise level (economic mode)29 dB

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningShort throw
Product colourGrey, White
PlacementWall
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)373 W
Power consumption (standby)2.2 W
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight5.9 kg
Width367 mm
Depth400 mm
Height149 mm

Packaging content

Remote control includedYes

Other features

RS-232 ports1
RS-232CYes
