Epson Bright Link 536Wi

Epson Bright Link 536Wi

Model Bright Link 536WiPart no. V11H670020EAN 010343915077

91 specifications
  • Noise37 dB
  • TypeShort throw projector
  • Weight3.9 kg
  • ColourWhite
  • Projector brightness3400 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Short throw projector
Weight
3.9 kg
Colour
White
Projector brightness
3400 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
Bright Link 536Wi
Part number
V11H670020
EAN / UPC
010343915077
Also known as
Epson PowerLite Bright Link 536Wi Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White

Specifications

91 specifications in 18 groups

Projector

Projector brightness3400 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)16000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility990.6 - 2946.4 mm (39 - 116")
Projection distance0.54 - 1.22 m
Projection distance (wide)0 - 0.54 m
Projection distance (tele)0 - 1.22 m
Number of colours1.073 billion colours
Projector brightness (economic mode)1900 ANSI lumens
Colour light output3400 ANSI lumens
Keystone correction, horizontal- 5 - 5°
Keystone correction, vertical-7 - 7°
Matrix size1.5 cm (0.59")
Matrix type3-panel (p-Si TFT active)
White light output3400 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power215 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length6.4 mm
Aperture range (F-F)1.6 - 1.6
Zoom capabilityYes
Zoom ratio1.35:1
Throw ratio0.48 - 0.65:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
3DNo
Supported graphics resolutions1280 x 800 (WXGA)

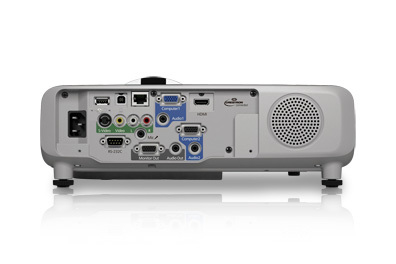

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in2
Audio (L/R) out1
Serial interface typeRS-232C
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)29 dB
Password protectionYes
CertificationCE

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningShort throw
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)315 W
Power consumption (standby)1.9 W
Power consumption (economy mode)230 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Voltage tolerance10%

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight3.9 kg
Width344 mm
Depth323 mm
Height132.5 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
AC adapter includedYes
Cables includedAC, USB, VGA
ManualYes
Quick start guideYes

Technical details

ColourYes
Compatible productsV13H010L87 V13H134A47 V12H418P12

Other features

RS-232 ports1
RS-232CYes
