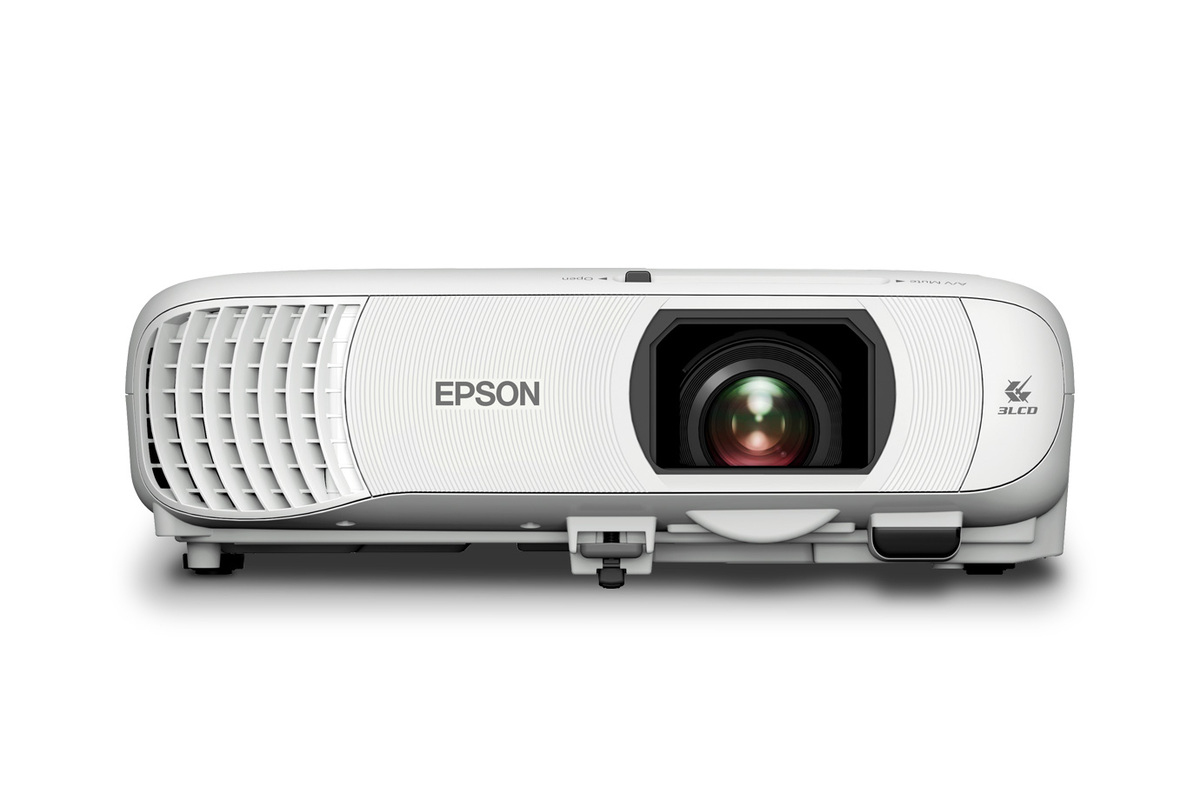

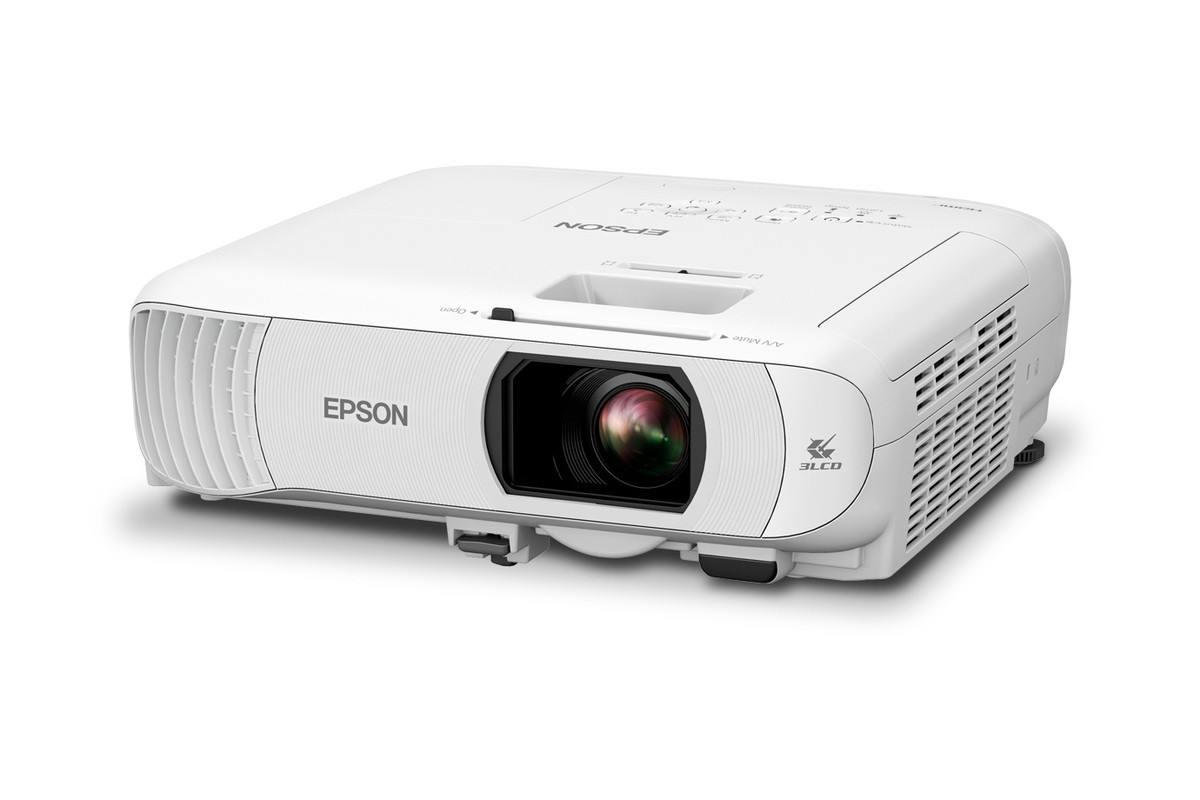

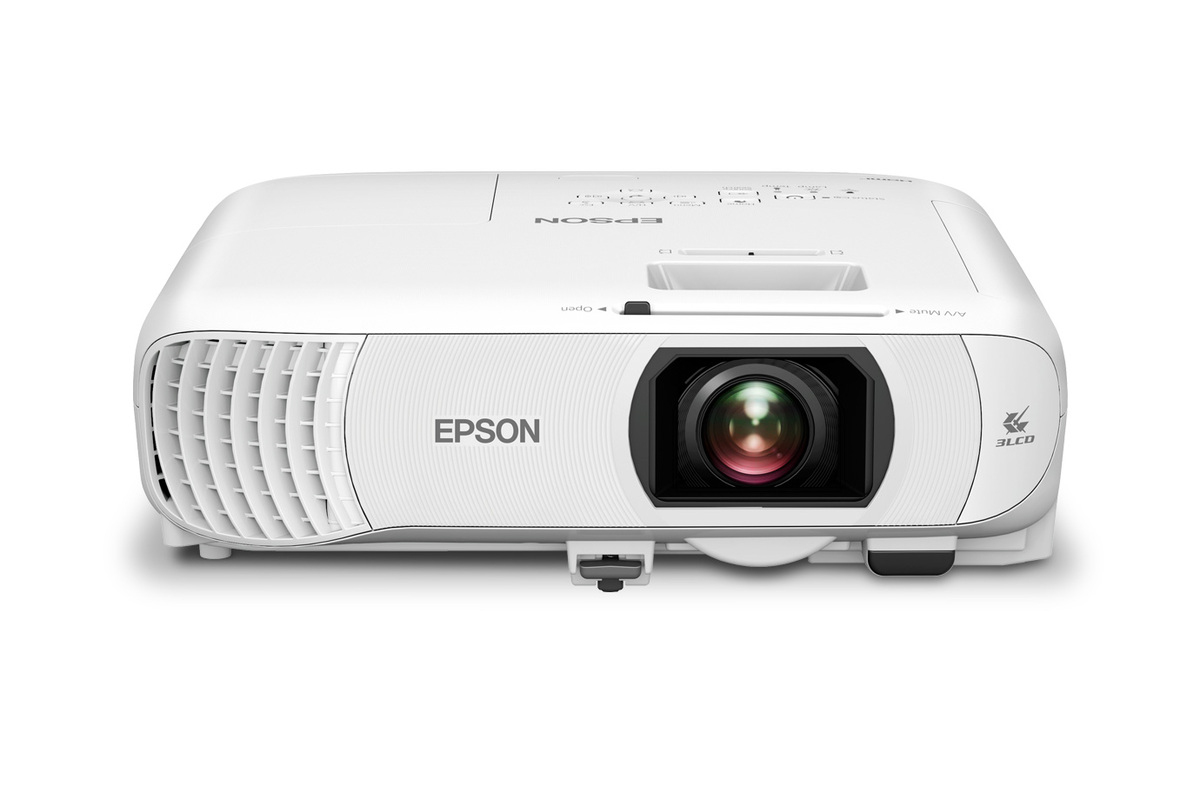

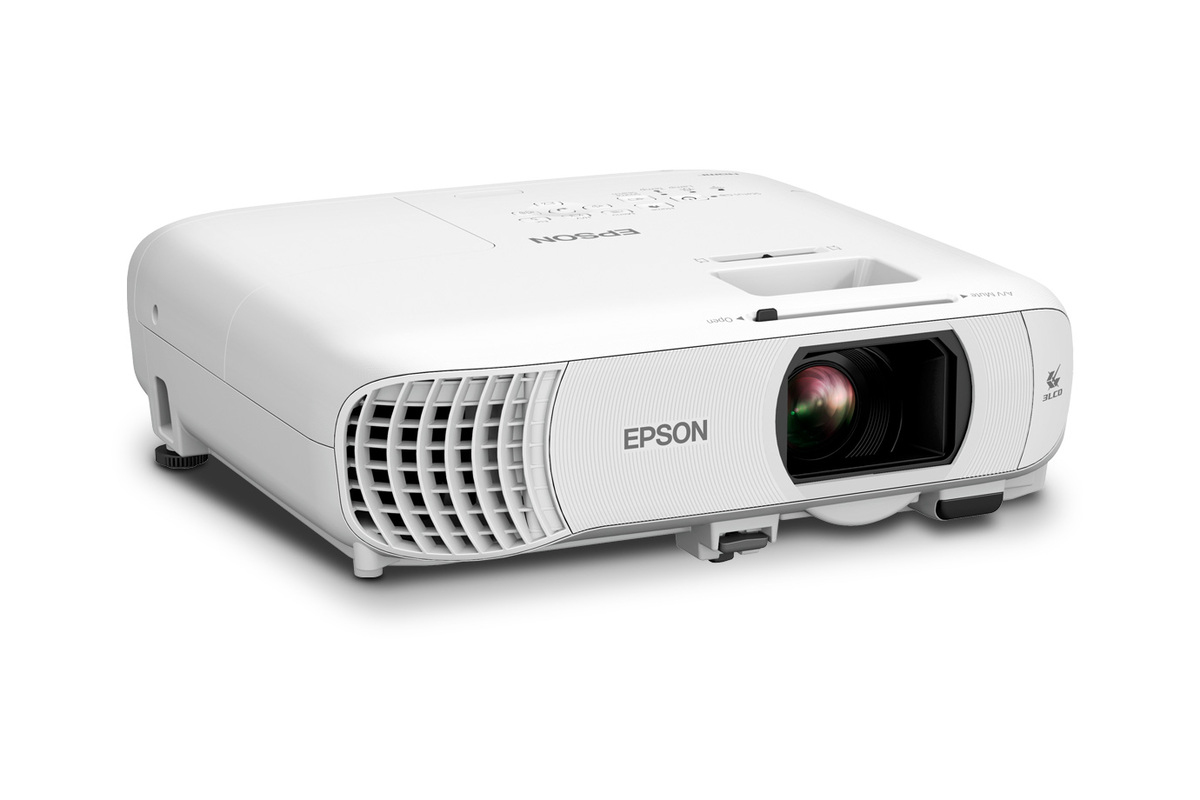

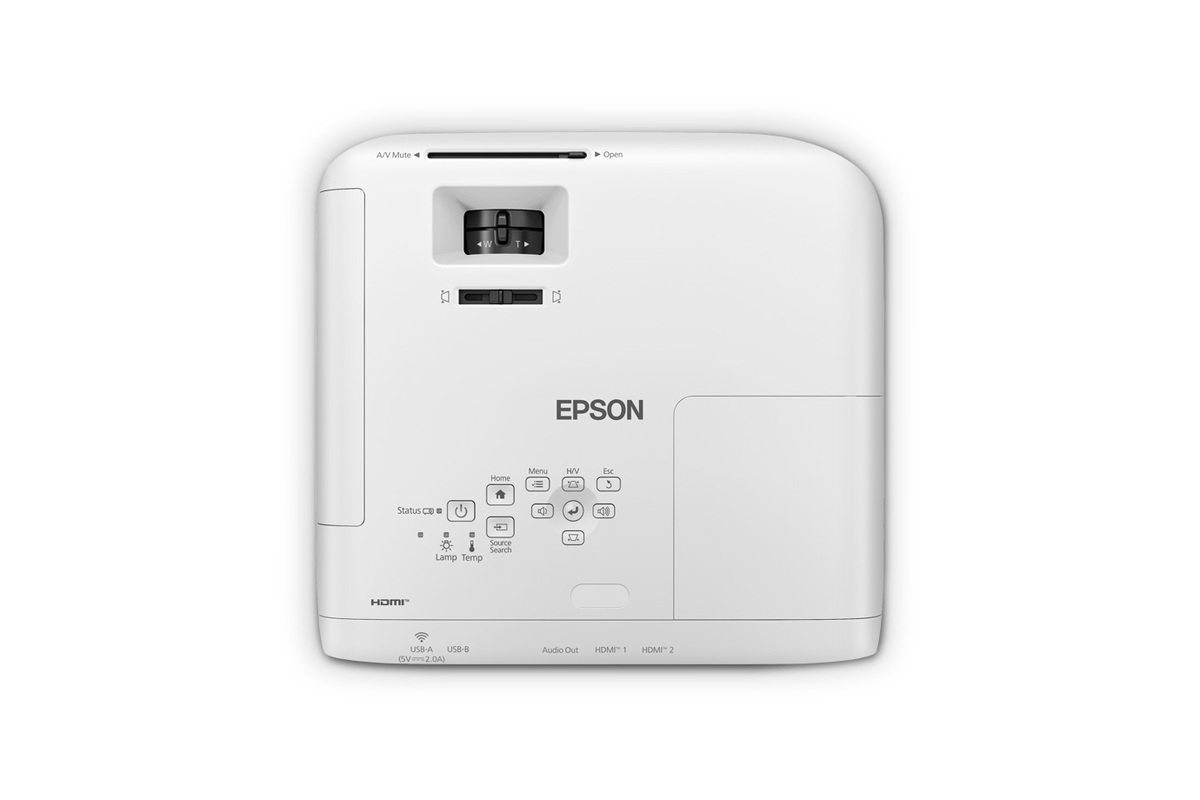

Home Cinema 980 4000 ANSI lumens 3LCD 1080p (1920x1080) White
Model 980Part no. V11HB63020EAN 198390001957
64 specifications
- Noise37 dB
- Weight3.1 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 37 dB
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- 980
- Part number
- V11HB63020
- EAN / UPC
- 198390001957
- Also known as
- Epson Home Cinema 980 4000 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
64 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:10, 4:3 |
| Smart projector | No |
| Screen size compatibility | 863.6 - 8559.8 mm (34 - 337") |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 230 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Aperture range (F-F) | 1.49 - 1.72 |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.21 - 1.45:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |

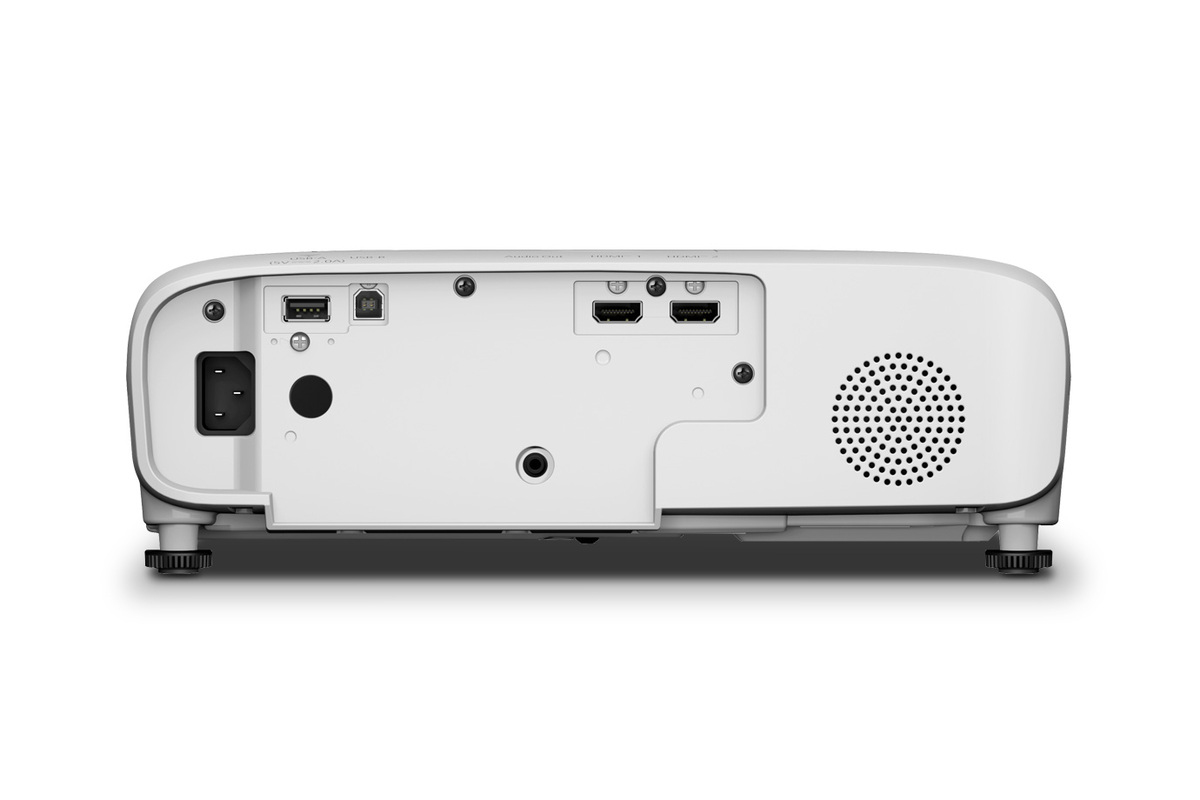

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 349 W |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (economy mode) | 241 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 310 mm |
| Depth | 281.9 mm |
| Height | 106.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
